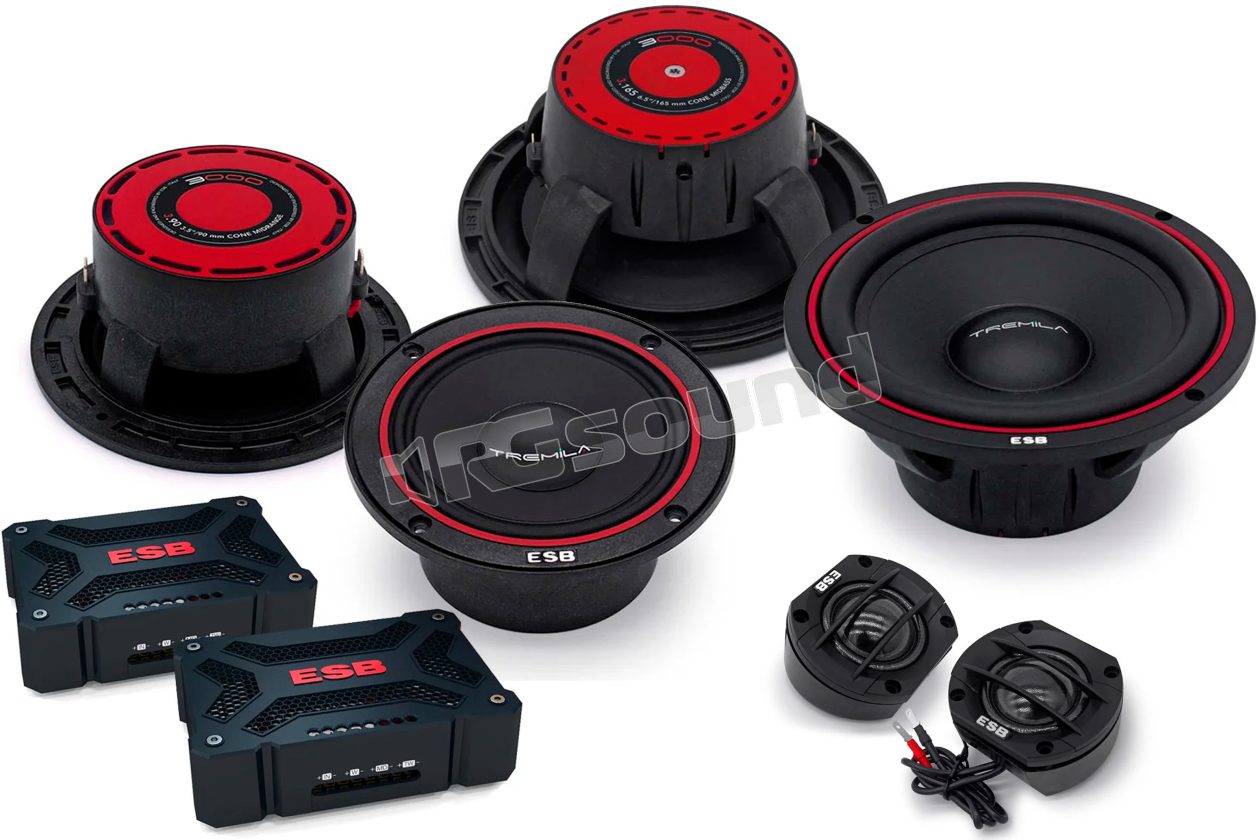

3.6K3X 3000 Series 3-way speaker system with crossover

ESB car audio

Discontinued

Your price:
€ 477,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
90 millimetri
Tweeter Size
28 millimetri
Frequency Response
65 - 25.000 Hertz
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

ESB 3.6K3X 3-way speaker system consisting of 3.165 woofer + 3.90 midrange + 3.28 tweeter and 3.6K3 CX crossover

The ESB 3000 Series was developed and assembled with great effort in the research of materials and engineering solutions of the highest level.

The baskets of the woofers and midranges were designed to achieve the maximum in terms of torsional rigidity (flexing). Paper pressed with waterproof treatment is the best combination of lightness, rigidity and the cone's ability to dampen any unwanted vibration. All woofers are equipped with a motor with Y-35 grade ferrite magnet, with performance significantly superior to classical "standard" ones

It is widely recognized that paper cones are the best combination of lightness, rigidity and the cone's ability to dampen any unwanted vibration (read: distortion). The paper cone, widely known for its excellent sound characteristics, is waterproof, thanks to a polymer developed exclusively by ESB. The treatment does not modify the appearance and parameters of the speaker such as glossy polymers that add an appreciable amount of mass to the cone and significantly modify the sound result. The treatment protects the cone from water dripping (such as inside a door panel), as well as accidental splashing on the front of the cone.

The tweeters of the 3000 series use a thin fabric dome impregnated with silk for soft and uniform sound, with an external suspension of the same material but covered with a damping material to eliminate vibrations and edge resonance. Two voice coils of 28 and 25 mm respectively for the two tweeters with aluminum support on very light copper-plated aluminum wire. The voice coils are vented and damped with ferrofluuid oil. Both use high quality N-42 neodymium magnets, optimized with computer simulations for better efficiency and linearity.

The special ventilation design, SVS (Surround Vented System) offers two advantages: optimal voice coil cooling and avoiding compressing air in the rear of the dome.

ESB 3.6K3X technical specifications

3.165 midbass 6.5"/165 mm

Treated paper cone

Perbunan rubber suspension

Y-35 ferrite magnet

Reinforced ABS basket

Balanced cotton surround

Double layer voice coil

Nominal Impedance: 4 Ohm

Nominal Power: 120 Watt

Transient Power: 240 Watt

Frequency Response: 65 Hz ~ 9 KHz

Sensitivity: 88.5 dB 1W/1m

3.90 midrange 3.5"/90 mm

Treated paper cone

Perbunan rubber suspension

Y-35 ferrite magnet

Reinforced ABS basket

Balanced cotton surround

Double layer voice coil

Nominal Impedance: 4 Ohm

Nominal Power: 60 Watt

Transient Power: 120 Watt

Frequency Response: 150 Hz ~ 7 KHz

Sensitivity: 88.5 dB 1W/1m

3.28 tweeter 1.1"/28 mm

Torcon dome

Damping suspension

N42 neodymium magnet

SVS ventilation system

28 mm voice coil

Computer optimized design

Nominal Impedance: 4 Ohm

Nominal Power: 90 Watt

Transient Power: 180 Watt

Frequency Response: 900 Hz ~ 25 KHz

Sensitivity: 91 dB 1W/1m

3.6K2CX 2-way passive crossover

High thickness copper PCB

Tweeter air wound inductor

Tweeter polyester capacitor

Non-inductive resistors

Crossover frequency: 3 KHz

Crossover Slope: 6 dB/Oct LP

12 dB/Oct HP

4 tweeter adjustment levels

Low frequency section: 3.165

High frequency section: 3.28

Managed Power: 300 W (Peak)

Discontinued
