3.6K3 CX Pair of 3-way passive crossovers

ESB car audio
Your price:
€ 170,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

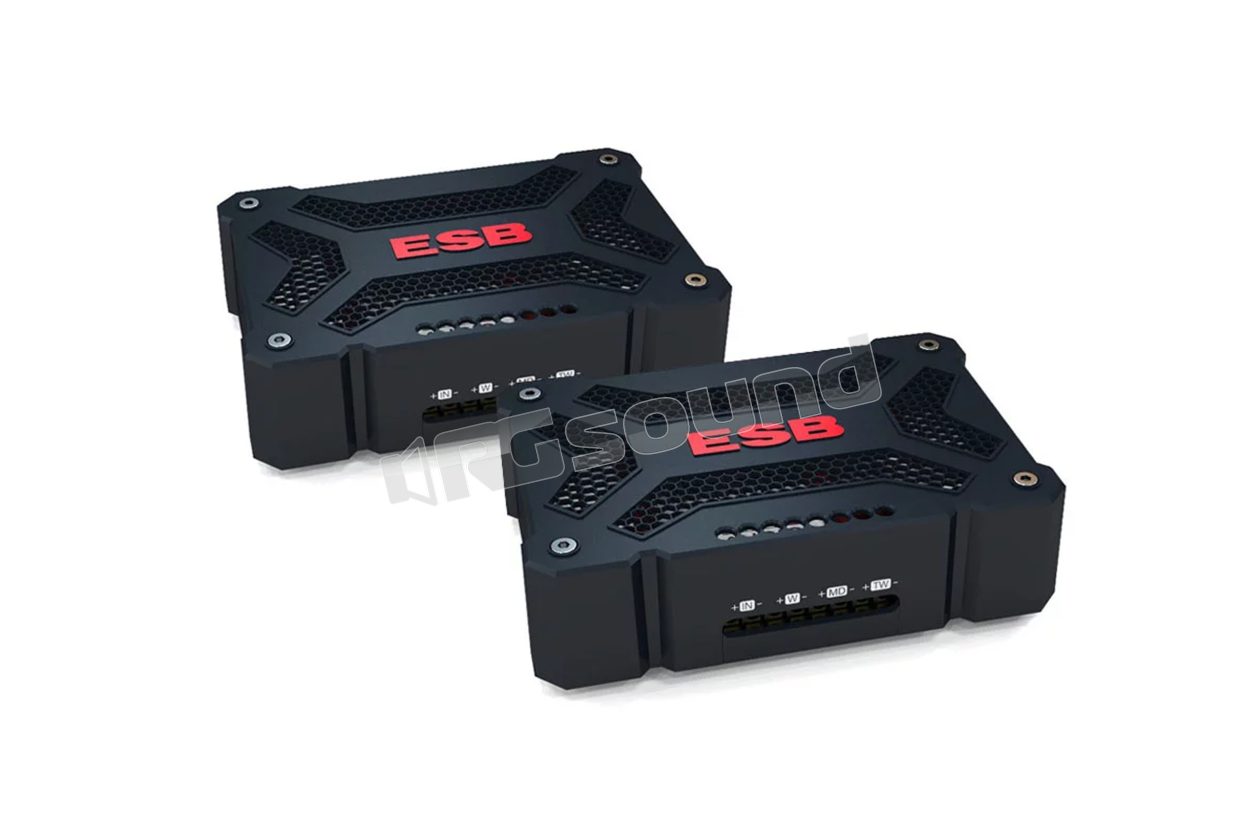

ESB car audio 3.6K3CX Pair of passive 3-way crossovers

Passive crossovers are used in 2 and 3-way speaker systems to electrically route low tones to bass speakers and high notes and overtones to high frequency speakers. If a passive crossover is to perform its function without compromise, it must be able to handle extreme variations in dynamics, the full range of audio frequencies, complex transients and the variable impedance of a speaker load.

ESB passive crossovers are carefully designed to integrate the exact characteristics of ESB speakers. Each crossover circuit controls the signal to the high and low frequency speakers so as to maintain a uniform acoustic response across the entire audio spectrum.

3.6K3CX Features

  • Dedicated to 3.28 tweeter, 3.90 midrange and 3.165 woofer.
  • High thickness copper PCB.
  • Internal tweeter level adjustment at 4 levels.
  • Oversized and non-inductive ceramic resistors.
  • Polyester tweeter capacitor.
  • Asymmetrical cutoff slope.
  • Air inductor for tweeter and midrange.

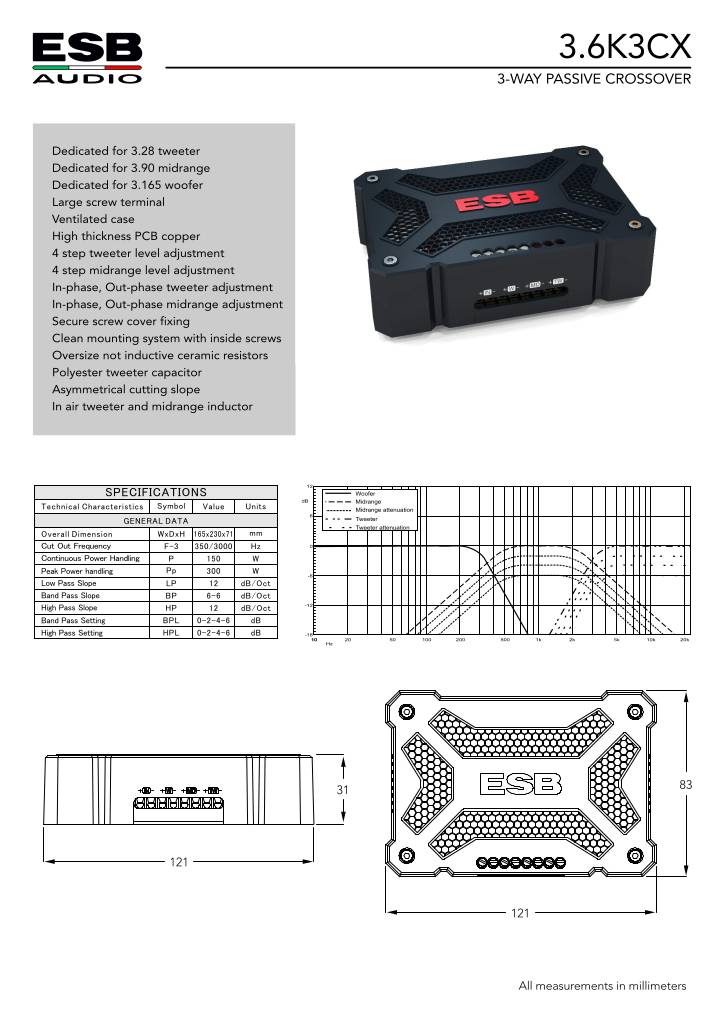

Scheda tecnica

n-20220117144851-3-6k3cx.pdf

ESB car audio 3.6K3CX Technical specifications

  • Type: 3-way passive crossover filter
  • Copper for high thickness printed circuits
  • Polyester capacitors for tweeter
  • Air inductor for tweeter and midrange
  • Asymmetrical cutoff slope
  • Oversized and non-inductive resistors
  • 4-stage tweeter level adjustment
  • High frequency level: 0/-2/-4/-6 dB
  • 4-stage midrange level adjustment
  • Mid frequency level: 0/-2/-4/-6 dB
  • Crossover frequency: 350 Hz / 3 kHz
  • Slope: 12 LP, 6-6 BP, 12 HP dB/Oct
  • Low frequency section: ESB 3.165
  • High frequency section: ESB 3.90
  • High frequency section: ESB 3.28
  • Power rating: 300 W
  • Clean mounting system with internal screws
€ 170,00 Price incl. VAT
