3.6K2X 3000 Series 2-way speaker kit, crossovers included

ESB car audio
Your price:
€ 189,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 25.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
90 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

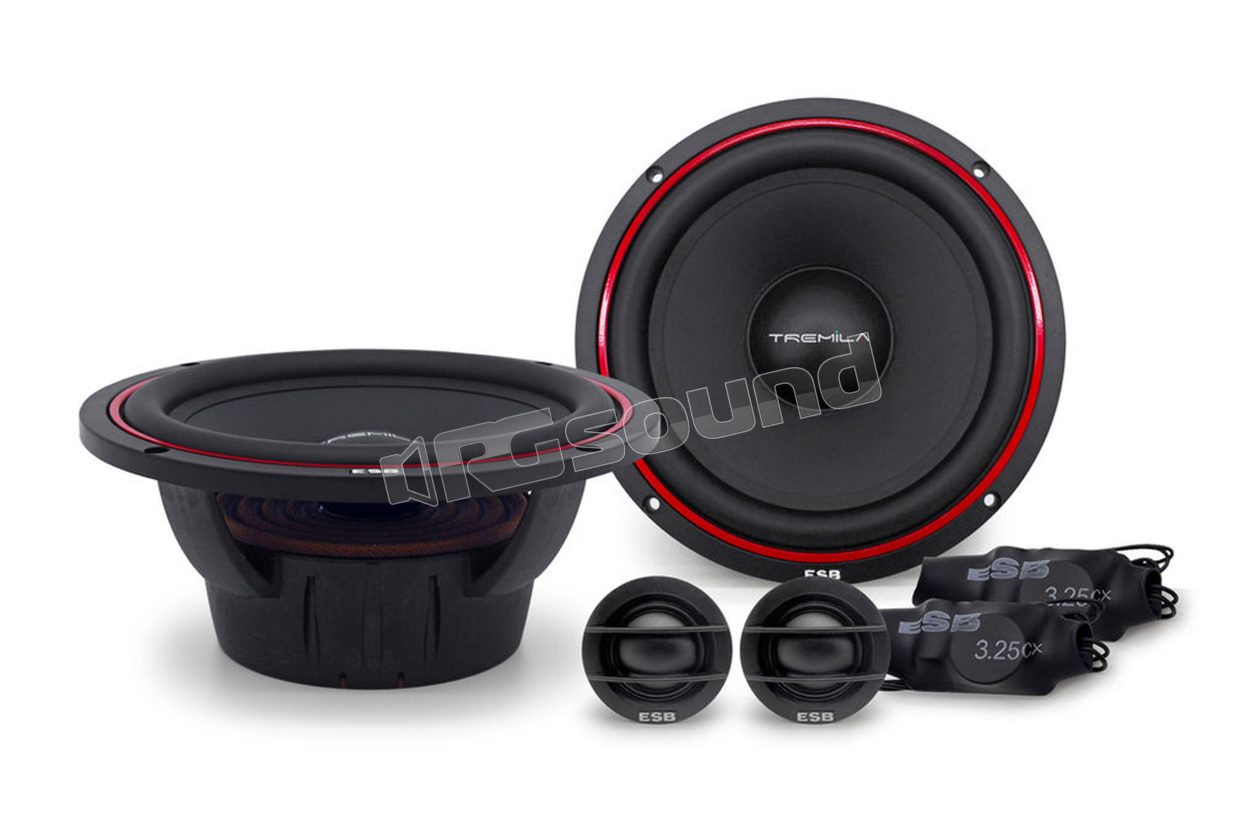

ESB 3.6K2X 2-way speaker system consisting of 3.165 woofer + 3.25 tweeter and wired crossover

Components included in the 3.6K2X speaker system

  • ESB 3.25 dome tweeter 1"/25 mm
  • ESB 3.165 mid-woofer 6.5"/165 mm

The ESB 3000 Series was developed and assembled with great effort in the research of materials and engineering solutions of the highest level. The baskets were designed to achieve the maximum in terms of torsional rigidity (deflection). Water-treated pressed paper is the best combination of lightness, rigidity and the cone's ability to dampen any unwanted vibration. All woofers are equipped with a motor with ferrite magnet grade Y-35, with performance notably superior to classic "standard" ones.

It is widely recognized that paper cones are the best combination of lightness, rigidity and the cone's ability to dampen any unwanted vibration. The paper cone, widely known for its excellent sound characteristics, is waterproof, thanks to a polymer developed exclusively by ESB. The treatment does not modify the appearance and parameters of the speaker such as glossy polymers which add an appreciable amount of mass to the cone and significantly modify the sound result. The treatment protects the cone from water drips (such as inside a door panel), as well as from accidental splashes on the front of the cone.

The 3000 series tweeters use a thin fabric dome impregnated with silk for soft and uniform sound, with an external surround of the same material but covered with damping material to eliminate edge vibrations and resonance. Two coils of 28 and 25 mm respectively for the two tweeters with aluminum support on very light copper-plated aluminum wire.

The coils are vented and damped with ferrofluid oil. Both use high quality neodymium magnets N-42, optimized with computer simulations to achieve better efficiency and linearity. The special ventilation design, SVS (Surround Vented System) offers two advantages: optimal coil cooling and avoiding compressing air in the back of the dome.

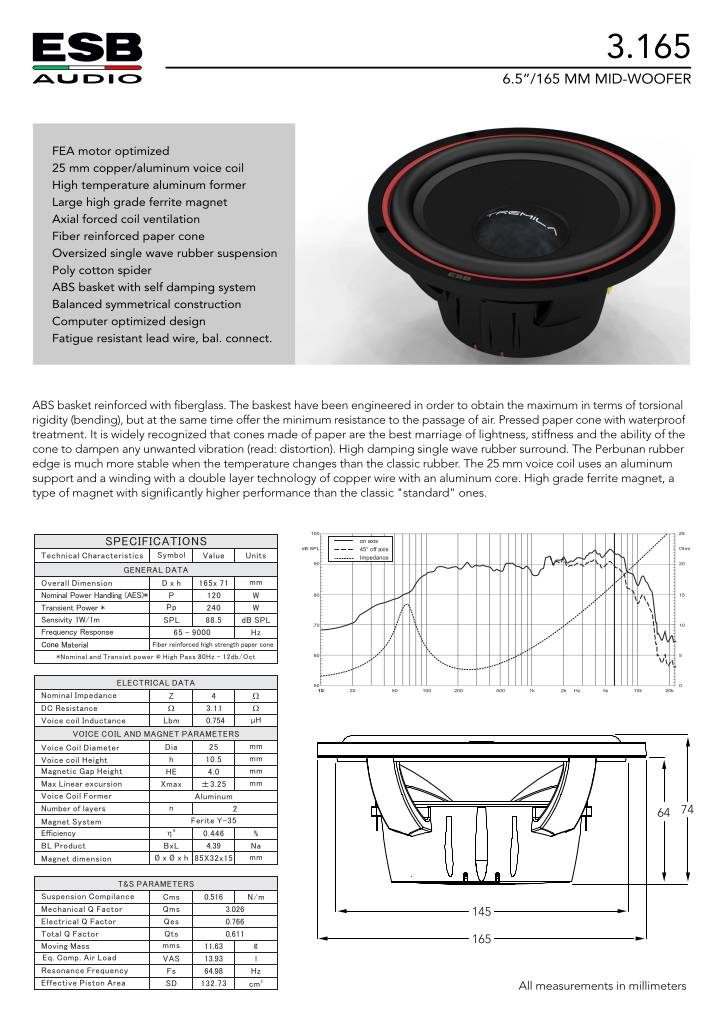

Scheda tecnica woofer

n-20231004103525-data-sheet-3-165-09-21.pdf

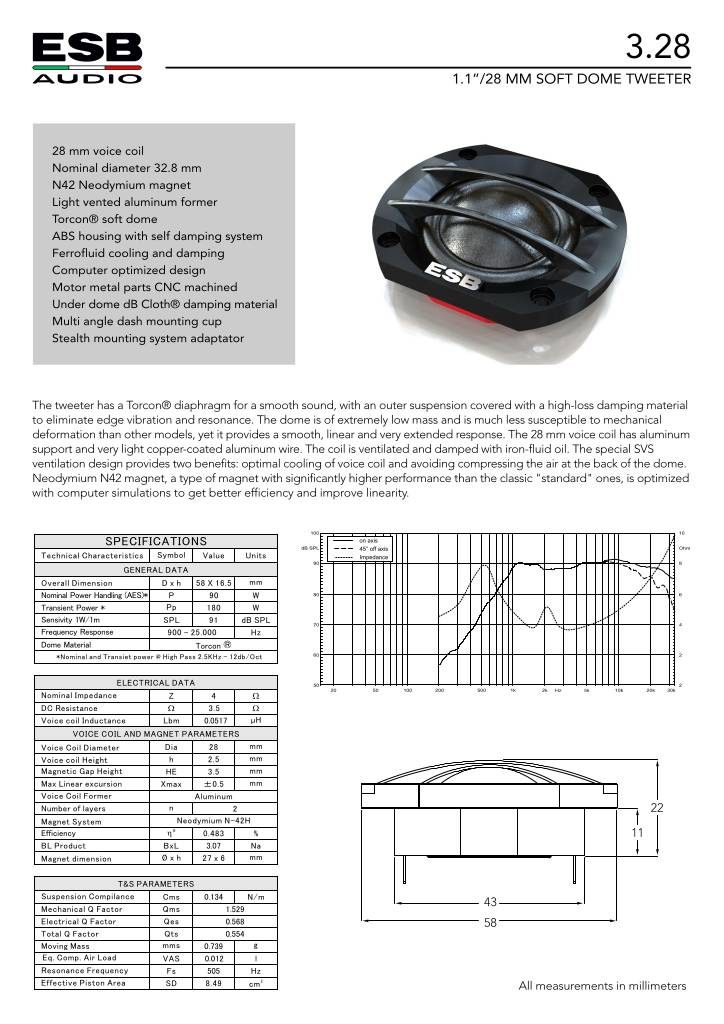

Scheda tecnica tweeter

n-20231004103525-data-sheet-3-28-09-21.pdf

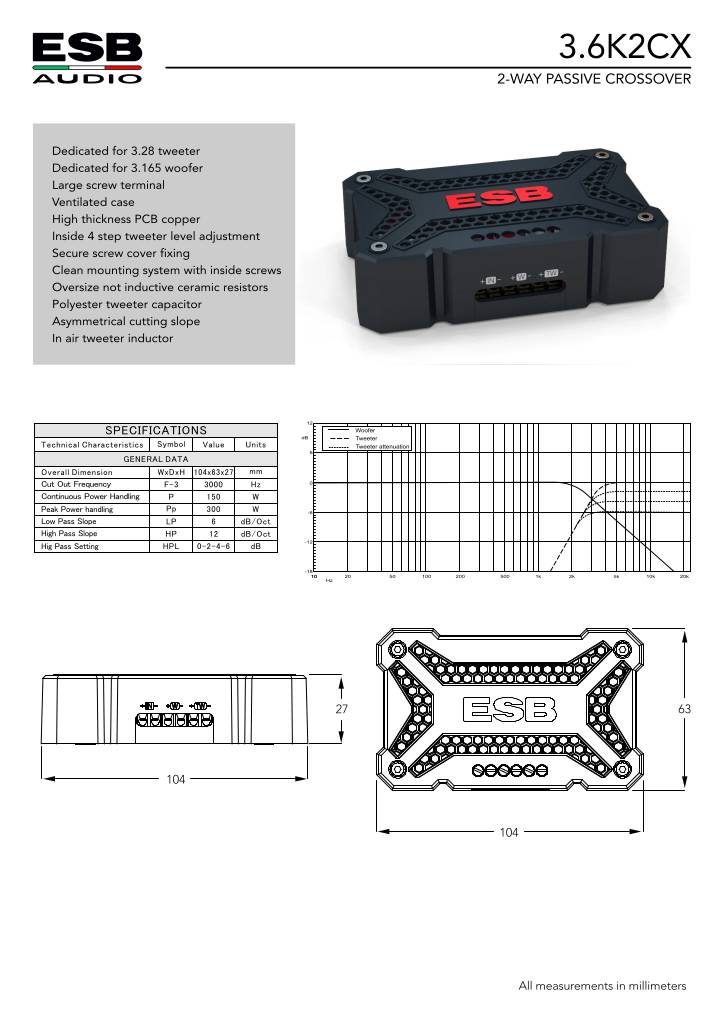

Scheda tecnica crossover

n-20231004103525-data-sheet-3-6k2cx-09-21.pdf

ESB car audio 3.6K2X Technical specifications

Mid-woofer 3.165

  • Mid-woofer 6.5"/165 mm
  • Treated paper cone
  • Perbunan rubber surround
  • Ferrite magnet Y-35
  • Reinforced ABS basket
  • Balanced cotton dust cap
  • Double-layer voice coil
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 65 Hz ~ 9 KHz
  • Sensitivity: 88.5 dB 1W/1m

Tweeter 3.25

  • Nominal impedance: 4 Ohm
  • Nominal power: 90 Watt
  • Transient power: 180 Watt
  • Frequency response: 900 Hz ~ 25 KHz
  • Sensitivity: 92 dB 2.83 V/1 m
