3.6K2 3000 Series 2-way speaker kit

ESB car audio
Your price:
€ 237,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 25.000 Hertz
Woofer Size
165 mm
Tweeter Size
28 millimetri
MAX Power
180 Watt
RMS Power
90 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Cupola in Torcon

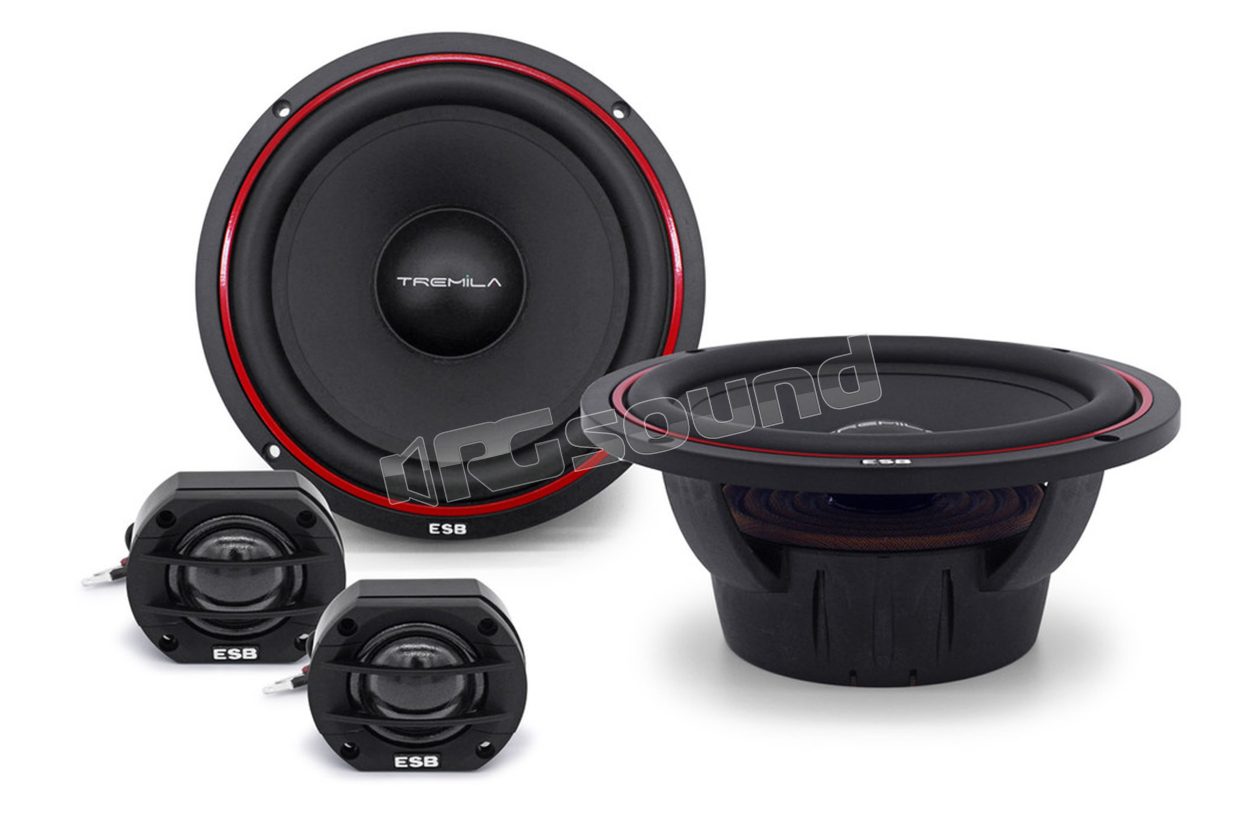

ESB car audio 3.6K2 2-way speaker system with 165mm woofer Series 3000

The ESB Series 3000 was developed and assembled with great effort in the search for materials and high-level engineering solutions.

The baskets were designed to achieve the maximum in terms of torsional rigidity (bending). Pressurized paper with waterproof treatment is the best combination between lightness, rigidity and the cone's ability to dampen every unwanted vibration. All woofers are equipped with a motor with Y-35 grade ferrite magnet, with performance noticeably superior to classic "standard" ones.

The tweeters use a thin fabric dome diaphragm impregnated with silk for soft and detailed sound and oversized mobile coils, ventilated and damped with ferrofluid oil.

2-way Passive Crossover ESB 3.6K2CX optional.

Scheda tecnica 3.28

n-20250626141814-data-sheet-3-28.pdf

Scheda tecnica 3.165

n-20250626141814-data-sheet-3-165.pdf

ESB car audio 3.6K2 Technical Specifications

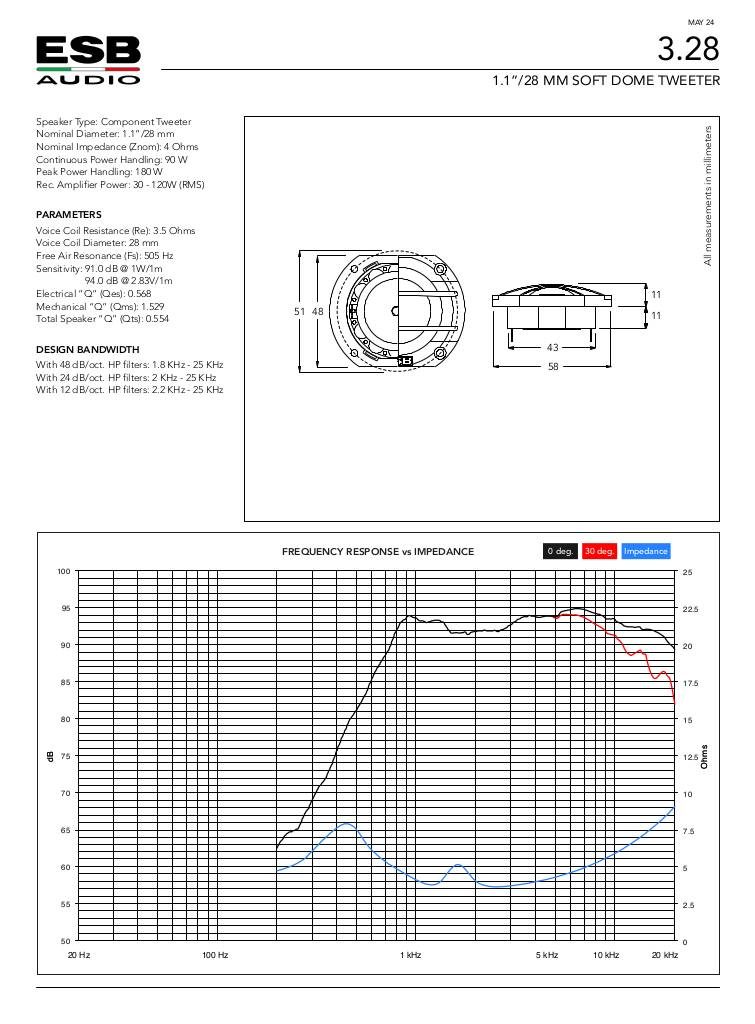

Tweeter 3.28

  • Tweeter 1.1"/28 mm
  • Torcon® dome
  • Damping suspension
  • N42 neodymium magnet
  • SVS ventilation system
  • 28 mm mobile coil
  • Computer optimized design
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 90 Watt
  • Transient Power: 180 Watt
  • Frequency Response: 900 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m

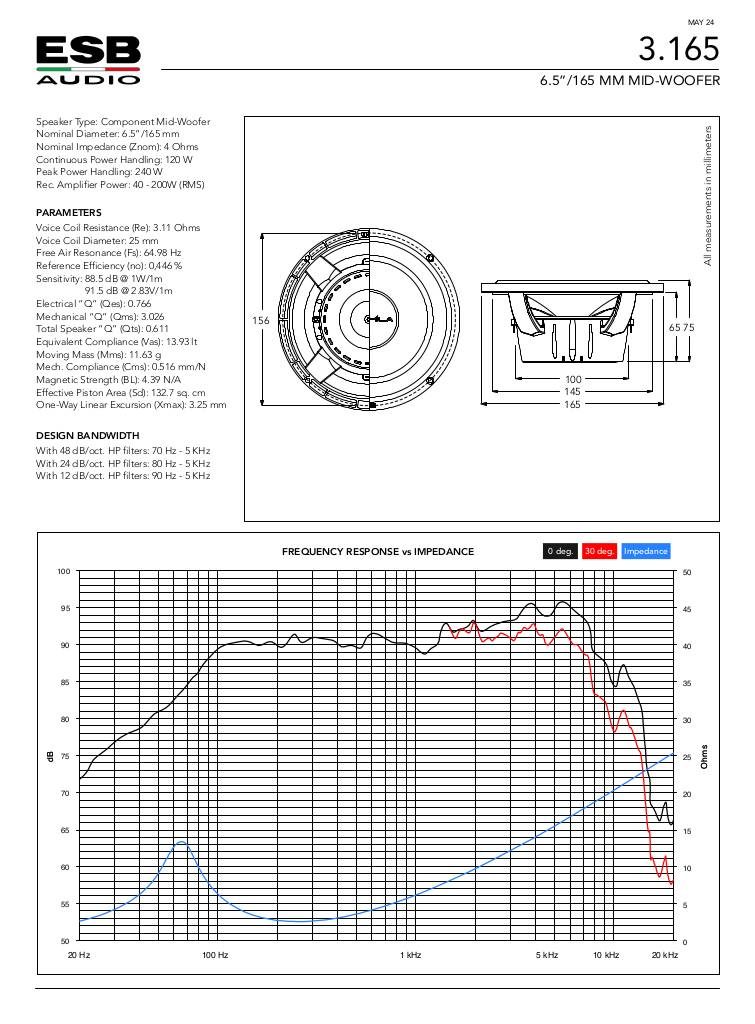

Midwoofer 3.165

  • Midwoofer 6.5"/165 mm
  • Treated paper cone
  • Perbunan rubber suspension
  • Y-35 ferrite magnet
  • Reinforced ABS basket
  • Balanced cotton spider
  • Double layer mobile coil
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 65 Hz ~ 9 KHz
  • Sensitivity: 88.5 dB 1W/1m
€ 237,00 Price incl. VAT
