3.6C 6.5"/165 mm Coaxial Speaker

ESB car audio
Your price:
€ 170,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
65 - 20000 Hertz
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
91.5 dB
Impedance
4 Ohm

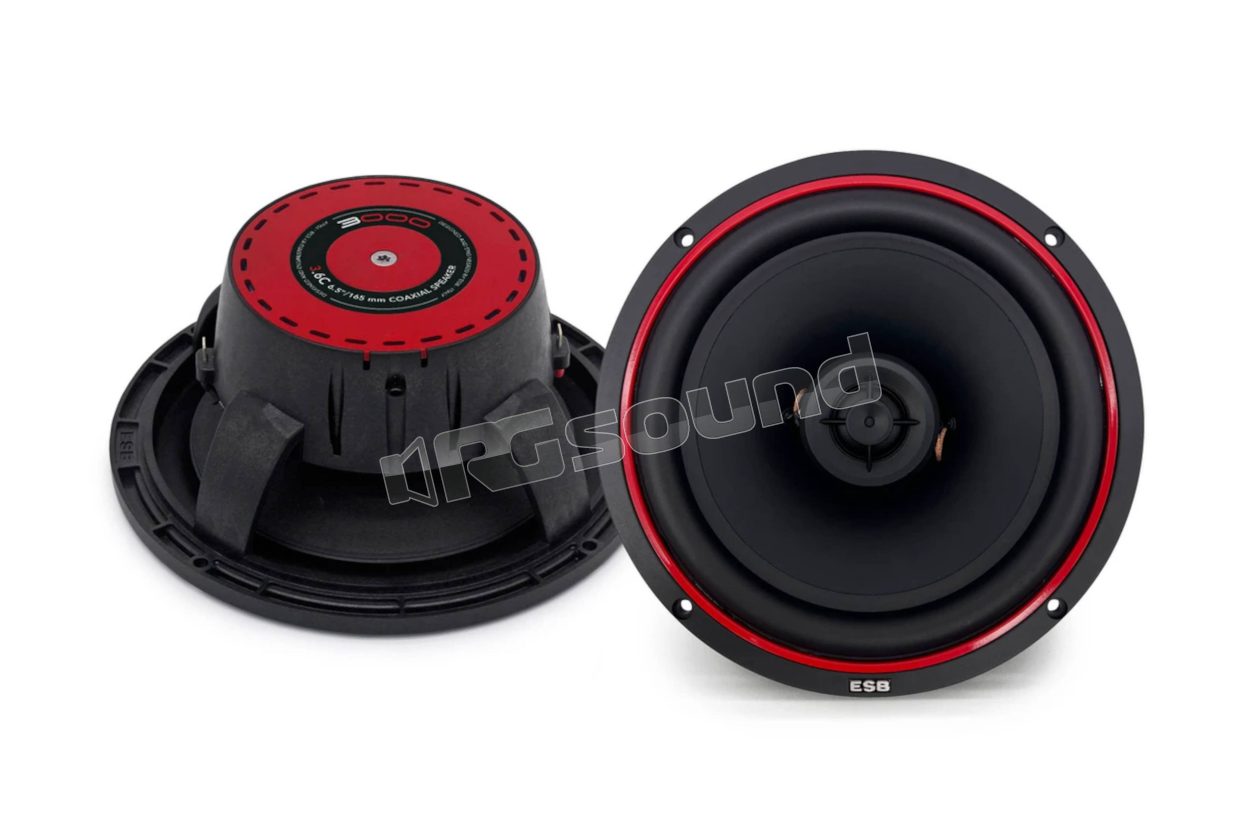

ESB car audio 3.6C Coaxial 6.5"/165 mm

The 3.6C coaxials from the 3000 series made with premium materials and cutting-edge technology, these speakers offer an exceptional sound experience, both for music enthusiasts and for the most demanding audiophiles. The 3.6C coaxials are designed with an ABS basket reinforced with fiberglass, ensuring maximum torsional rigidity and optimal air flow.

The pressed paper cone of the woofer, treated with a waterproof coating, ensures clear and faithful sound reproduction, without distortion, while the single-wave high damping rubber surround offers stability to temperature variations, maintaining a constant and precise sound in any environmental condition.

The 25 mm voice coil uses an aluminum support and a double-layer copper wire winding technology with aluminum core, ensuring high heat dissipation and greater durability over time. Furthermore, the high-quality ferrite magnets for the woofer and the N35 neodymium magnets for the tweeter offer significantly superior performance compared to standard magnets, ensuring a powerful, precise and detailed sound.

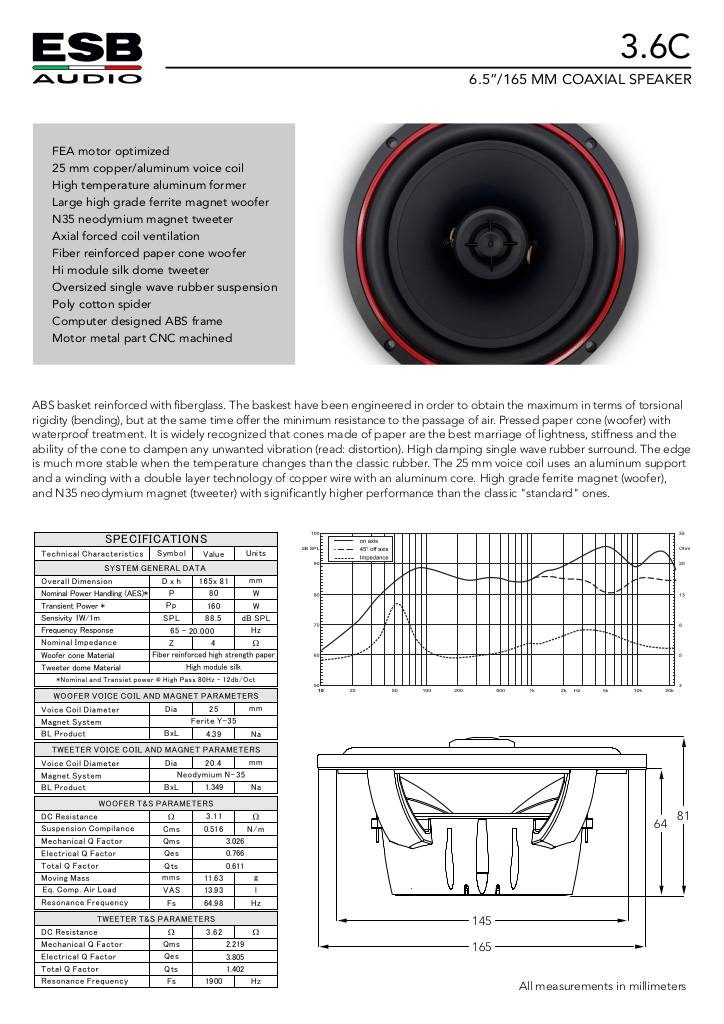

Scheda Tecnica

n-20240503092243-data-sheet-3-6c-05-23.pdf

Manuale Installazione

n-20240503092243-esb3000-installationmanual.pdf

ESB car audio 3.6C Technical Specifications

  • Speaker type: Coaxial component
  • Nominal diameter: 6.5"/165 mm
  • Nominal impedance (Znom): 4 Ohm
  • Continuous power handling: 80 W
  • Peak power handling: 160 W
  • Sensitivity:
    • 88.5 dB @ 1W/1m
    • 91.5 dB at 2.83 V/1m
  • Rec. Amplifier power: 20 - 140 W (RMS)

Tweeter

  • Voice coil resistance (Re): 3.62 Ohm
  • Free air resonance (Fs): 1900 Hz
  • Electrical "Q" (Qes): 3.805
  • Mechanical "Q" (Qms): 2.219
  • Total speaker "Q" (Qts): 1.402

Woofer

  • Voice coil resistance (Re): 3.11 Ohm
  • Free air resonance (Fs): 64.98 Hz
  • Reference efficiency (no): 0.446 %
  • Electrical "Q" (Qes): 0.766
  • Mechanical "Q" (Qms): 3.026
  • Total speaker "Q" (Qts): 0.611
  • Equivalent compliance (Vas): 13.93 lt
  • Moving mass (Mms): 11.63 g
  • Mech. Mechanical compliance (Cms): 0.516 mm/N
  • Magnetic force (BL): 4.39 N/A
  • Effective piston area (Sd): 132.7 cmq
  • Unidirectional linear excursion (Xmax): 3.25 mm
