3.69K2.5 2-way kit with 6x9“ woofer and 2.5” widerange

ESB car audio
Your price:
€ 296,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 22.000 Hertz
Woofer Size
150x230 mm
Tweeter Size
65 millimetri
MAX Power
240 Watt
RMS Power
120 Watt
Sensitivity
88,5 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

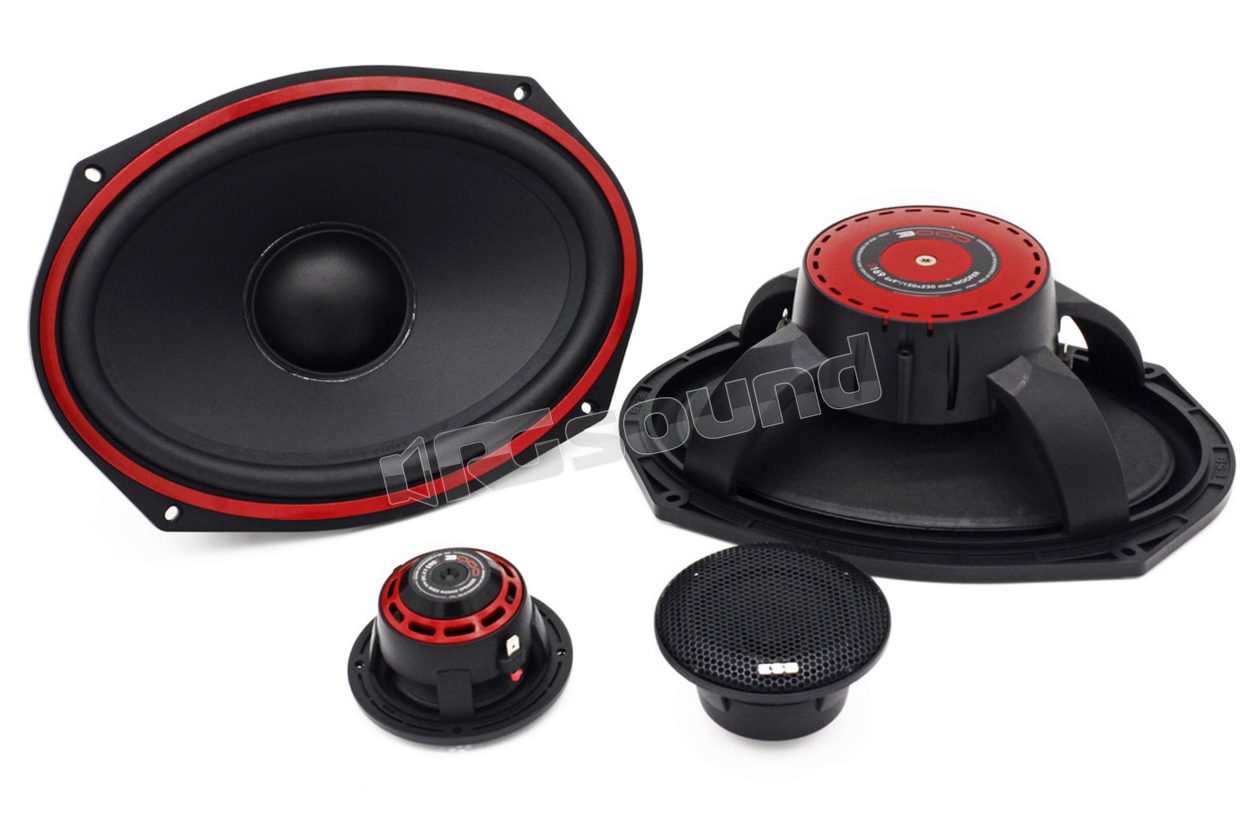

ESB car audio 3.69K2.5 2-way speaker system, composed of a pair of 6x9" woofers and a pair of 2.5" widerange speakers

The ESB 3000 Series has been developed and assembled with great effort in the research of materials and high-level engineering solutions. The baskets have been designed to achieve the maximum in terms of torsional rigidity (flexure). The waterproof-treated pressed paper is the best combination of lightness, rigidity and the cone's ability to dampen every unwanted vibration.

All woofers are equipped with a motor with Y-35 grade ferrite magnet, with performance significantly superior to the classic "standard" ones. The tweeters use a thin fabric dome diaphragm impregnated with silk for a soft and detailed sound and oversized mobile coils, ventilated and damped with ferrofluid oil.

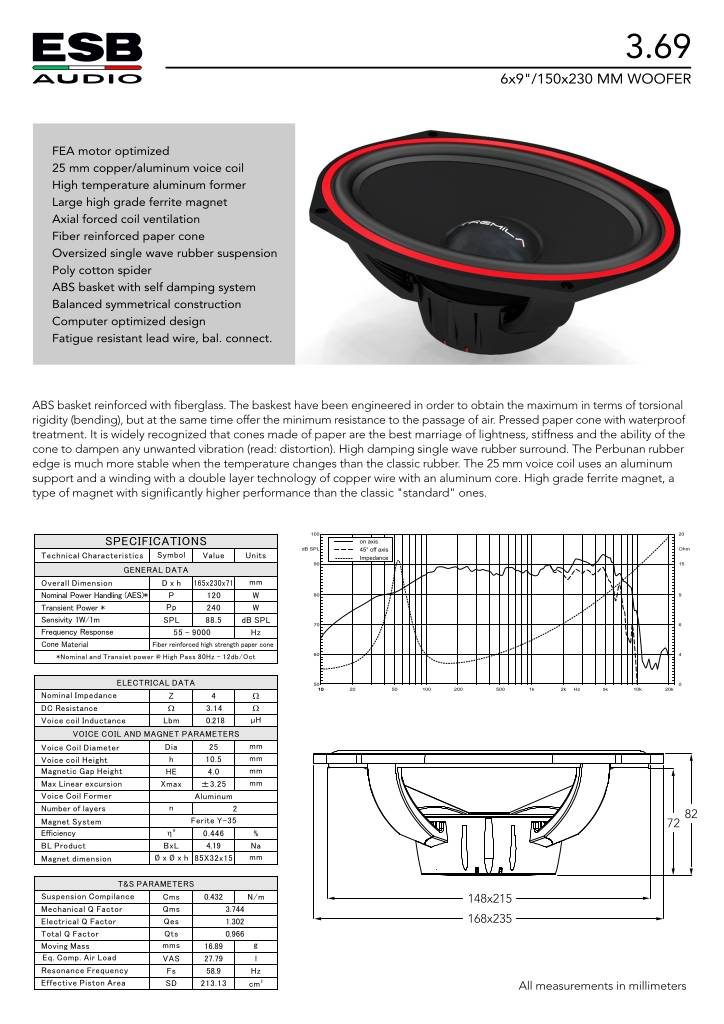

Scheda tecnica 3.69

n-20211006130007-3-69.pdf

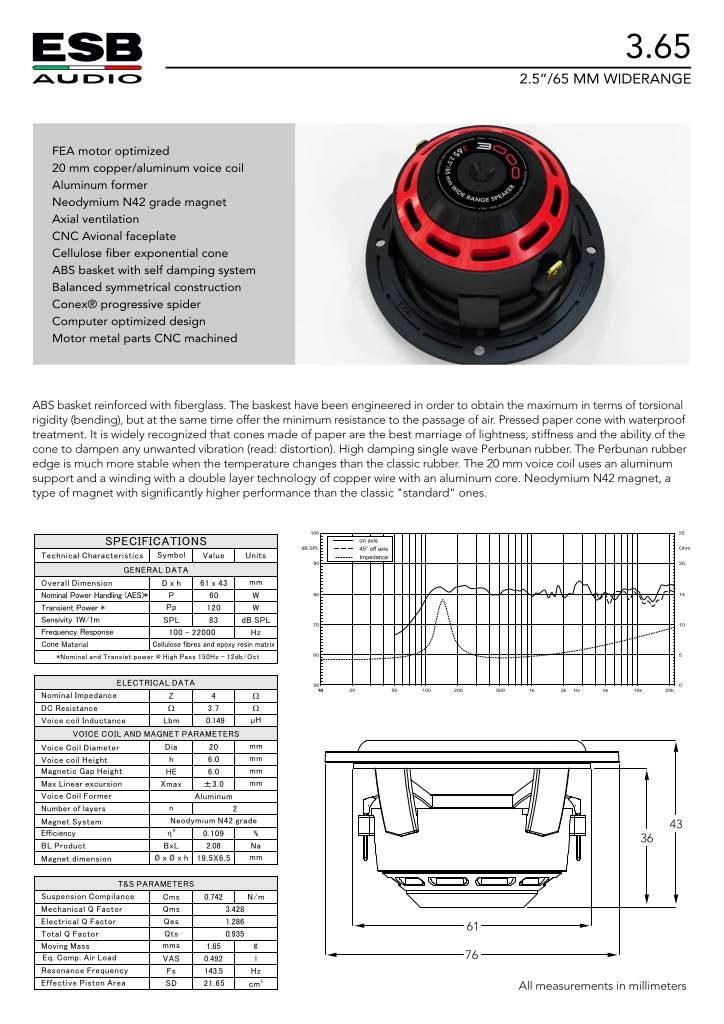

Scheda tecnica 3.65

n-20211006130007-3-65.pdf

ESB car audio 3.69K2.5 Technical Specifications

Widerange 3.65

  • 2.5"/65 mm widerange
  • Treated paper cone
  • Perbunan rubber suspension
  • N42 neodymium magnet
  • Reinforced ABS basket
  • Balanced cotton centering
  • Double-layer mobile coil
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 60 Watt
  • Transient Power: 120 Watt
  • Frequency Response: 100 Hz ~ 22 KHz
  • Sensitivity: 83 dB 1W/1m

Woofer 3.69

  • 6x9"/150x230 mm woofer
  • Treated paper cone
  • Perbunan rubber suspension
  • Y-35 ferrite magnet
  • Reinforced ABS basket
  • Balanced cotton centering
  • Double-layer mobile coil
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 55 Hz ~ 9 KHz
  • Sensitivity: 88.5 dB 1W/1m
