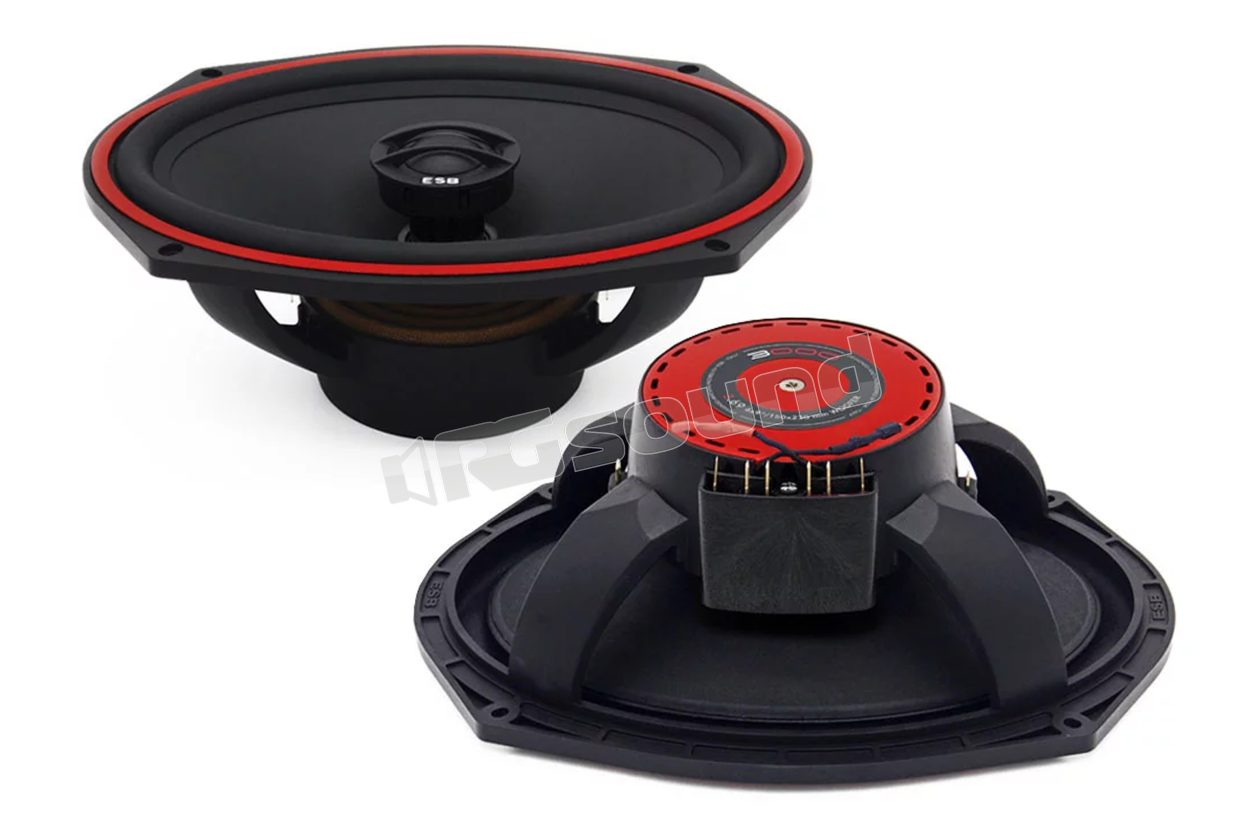

3.69C 2-way speakers convertible to 6x9'' coaxials

ESB car audio
Your price:
€ 296,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

ESB car audio 3.69C 2-way convertible coaxial speaker system 6x9" Woofer + 1" Tw + Crossover

Basket in ABS reinforced with fiberglass. The basket was designed to achieve the maximum in terms of torsional rigidity (bending resistance), but at the same time offers minimal resistance to air passage. Paper cone (woofer) with waterproof treatment. It is widely recognized that paper cones represent the ideal combination between lightness, rigidity and the cone's ability to dampen any unwanted vibration (read: distortion). Single-wave rubber surround with high damping.

The surround is much more stable to temperature variations compared to standard rubber. The 25 mm voice coil uses an aluminum support with double-layer winding technology of copper wires with an aluminum core. The tweeter has a thin fabric dome diaphragm impregnated with silk for homogeneous sound, with an external suspension covered by high-loss damping material to eliminate edge vibrations and resonance.

The dome has extremely reduced mass and is much less subject to mechanical deformations compared to other tweeters, while guaranteeing homogeneous, linear and very extended response. High quality ferrite magnet (woofer) and N42 neodymium magnet (tweeter) with performance significantly superior to "standard" magnets.

3.69C Features

  • Treated paper cone (woofer)
  • Silk dome (tweeter)
  • Y-35 ferrite magnet (woofer)
  • N42 neodymium magnet (tw)
  • Reinforced ABS basket
  • Motor parts machined in CNC

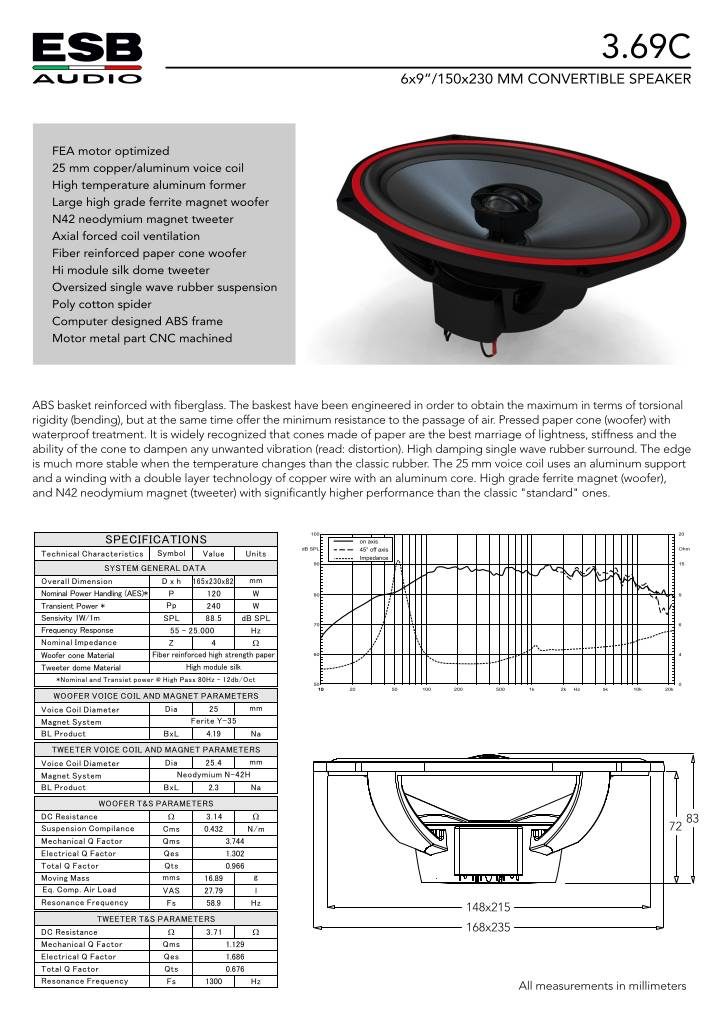

Scheda tecnica

n-20220117170549-3-69c.pdf

ESB car audio 3.69C Technical Specifications

  • Speaker type: Convertible speaker
  • Nominal diameter: 6x9"/150x230 mm
  • Nominal impedance (Znom): 4 Ohm
  • Continuous power: 120 W
  • Peak power: 240 W
  • Sensitivity: 88.5 dB @ 1W/1m
  • 91.5 dB at 2.83V/1m
  • Rec. Amplifier power: 40 - 200 W (RMS)

Tweeter

  • Voice coil resistance (Re): 3.71 Ohm
  • Free air resonance (Fs): 1300 Hz
  • Electrical "Q" (Qes): 1.686
  • Mechanical "Q" (Qms): 1.129
  • Total speaker "Q" (Qts): 0.676

Woofer

  • Voice coil resistance (Re): 3.14 Ohm
  • Free air resonance (Fs): 58.9 Hz
  • Reference efficiency (no): 0.446 %
  • Electrical "Q" (Qes): 1.302
  • Mechanical "Q" (Qms): 3.744
  • Total speaker "Q" (Qts): 0.966
  • Equivalent compliance (Vas): 27.79 lt
  • Moving mass (Mms): 16.89 g
  • Mech. Mechanical compliance (Cms): 0.432 mm/N
  • Magnetic force (BL): 4.19 N/A
  • Effective piston area (Sd): 213.13 cmq
  • Unidirectional linear excursion (Xmax): 3.25 mm
