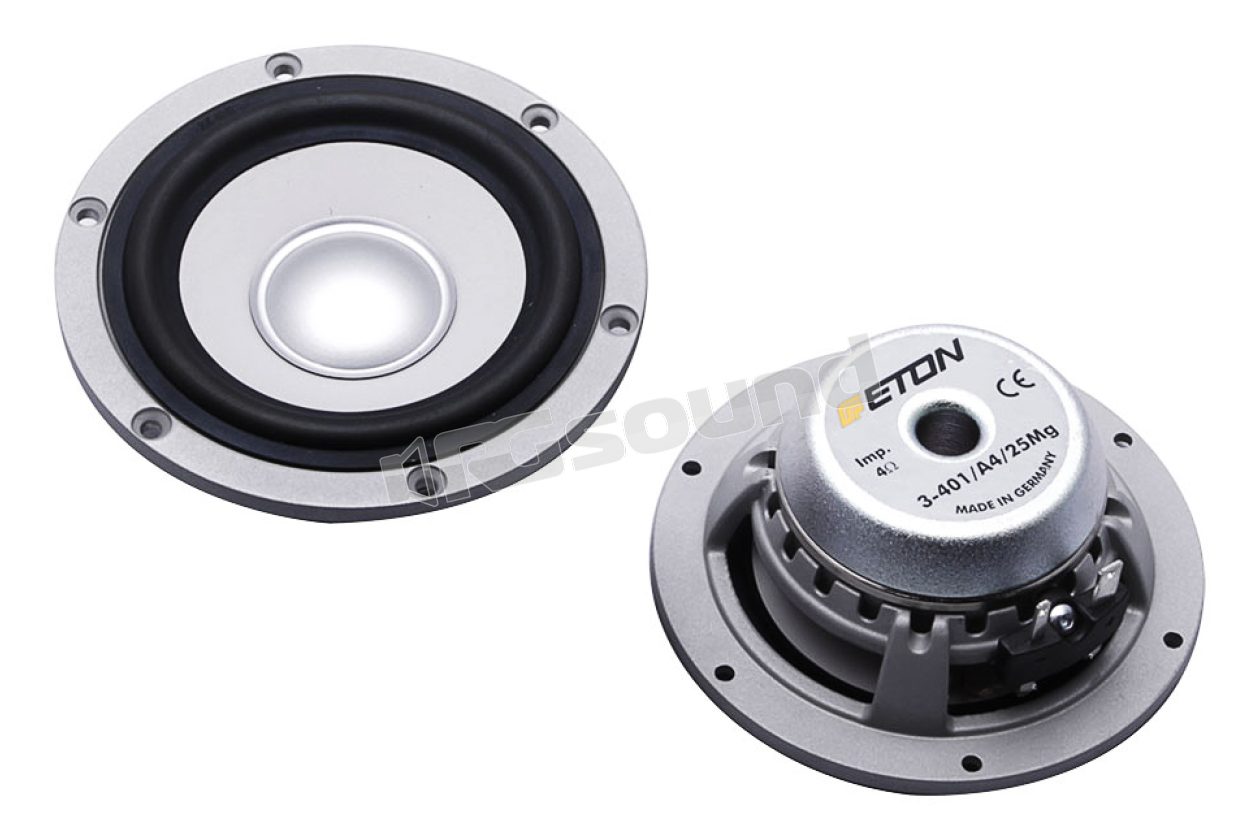

3-401A4 high-end 80mm midrange

ETON

Discontinued

Your price:
€ 249,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
RMS Power
20 Watt
Sensitivity
86 dB
Impedance
4 Ohm

ETON 3-401A4 80 mm High-End midrange to upgrade the MGS 180 system to 3-way

Can the sound of the High End kit MGS 180 be even better? With the introduction of the new 3-401A4 midrange, perfection reaches a new dimension.

3-401A4 midrange features

Nominal impedance Zn 4 Ω
DC resistance Re 3 Ω
Characteristic sound pressure level 1W / 1m 86dB SPL
Rated power 20W
Resonance frequency 1 Watt fr 90 Hz
Effective piston area SD 34 cm2
Suspension compliance CMS 0.55 mm/N
Mechanical Q factor QMS 3.21
Electrical Q factor QES 0.45
Total Q factor QTS 0.4
Equivalent air volume of suspension VAS 0.9 dm3
Mech. resistance RMS 0.82 kg/s
Total moving mass (including air mass) MMD 3.8 g
Voice coil diameter 25 mm
Voice coil carrier Aluminium
Wrapping amplitude 7 mm
Nr. of layers 2
Voice coil inductance Le 0.06 mH
Magnetic inductance B 1.06 Tesla
Power factor BL x I 4.2 Tm
Height of pole 40 mm
Magnetic ring diameter 55 mm
Magnetic ring height 30 mm
Mass of speaker 0.33 kg
Discontinued
