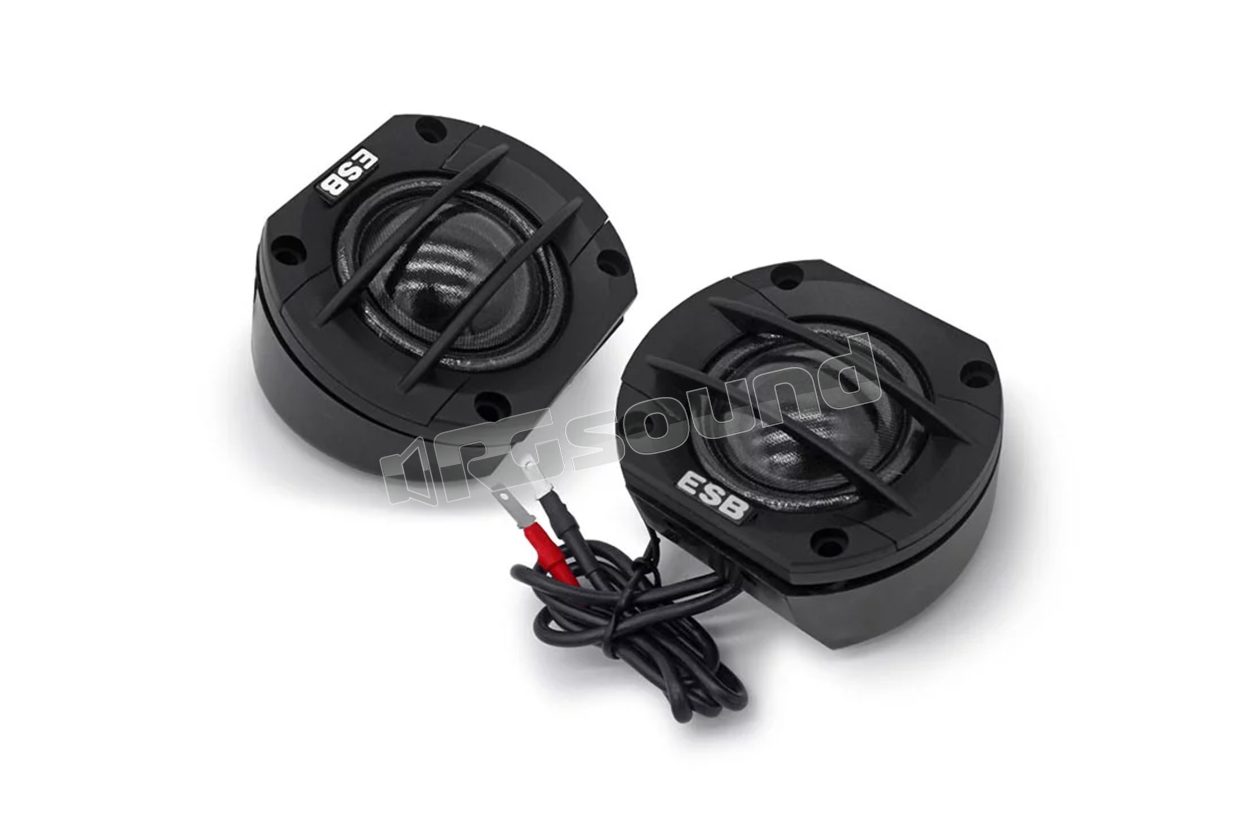

3.28 28 mm Tweeter 3000 Series

ESB car audio
Your price:
€ 85,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
900 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
58 mm
Installation Depth
11 mm
Tweeter Material
Cupola in Torcon

ESB car audio 3.28 Tweeter Pair 1.1"/28 mm Series 3000

The tweeter uses a Torcon® diaphragm for homogeneous sound, with an external suspension covered by a high-loss damping material to eliminate edge vibrations and resonance. The dome has extremely reduced mass and is much less subject to mechanical deformations compared to other tweeters, while guaranteeing a homogeneous, linear and very extended response.

The 28 mm voice coil has an aluminum support and a very light copper-coated aluminum wire. The voice coil is vented and damped with fluid iron oil. The special SVS ventilation design offers two advantages: optimal voice coil cooling and the ability to avoid air compression on the back of the dome.

The N42 neodymium magnet, a type of magnet with significantly higher performance than "standard" magnets, is optimized with computer simulations to achieve better efficiency and improve linearity.

3.28 Features

  • Torcon dome
  • Damping suspension
  • N42 neodymium magnet
  • SVS ventilation system
  • 28 mm voice coil
  • Computer optimized design

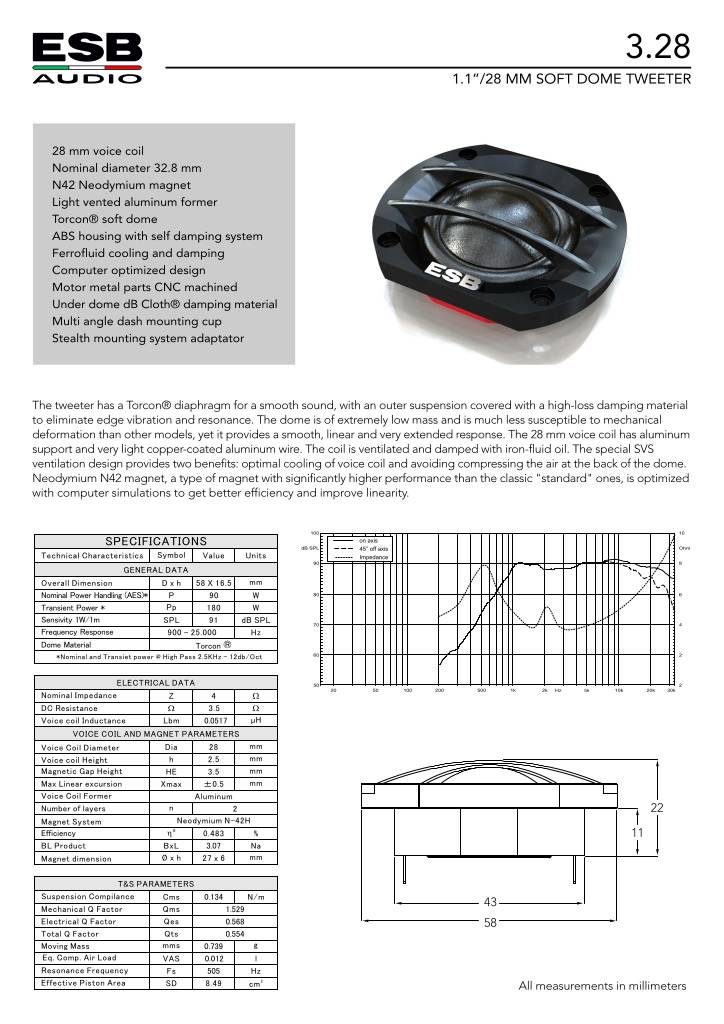

Scheda tecnica

n-20220117150525-3-28.pdf

ESB car audio 3.28 Technical Specifications

  • Speaker type: Component tweeter
  • Nominal diameter: 1.1"/28 mm
  • Nominal impedance (Znom): 4 Ohm
  • Continuous power handling: 90 W
  • Peak power handling: 180 W
  • Rec. Amplifier power: 30 - 120 W (RMS)
  • Voice coil resistance (Re): 3.5 Ohm
  • Voice coil diameter: 28 mm
  • Free air resonance (Fs): 505 Hz
  • Sensitivity: 91.0 dB @ 1W/1m
  • 94.0 dB @ 2.83V/1m
  • "Q" electrical (Qes): 0.568
  • "Q" mechanical (Qms): 1.529
  • "Q" total speaker (Qts): 0.554

Bandwidth

  • With 48 dB/oct HP filters: 1.8 KHz - 25 KHz
  • With 24 dB/oct HP filters: 2 KHz - 25 KHz
  • With 12 dB/oct HP filters: 2.2 KHz - 25 KHz
