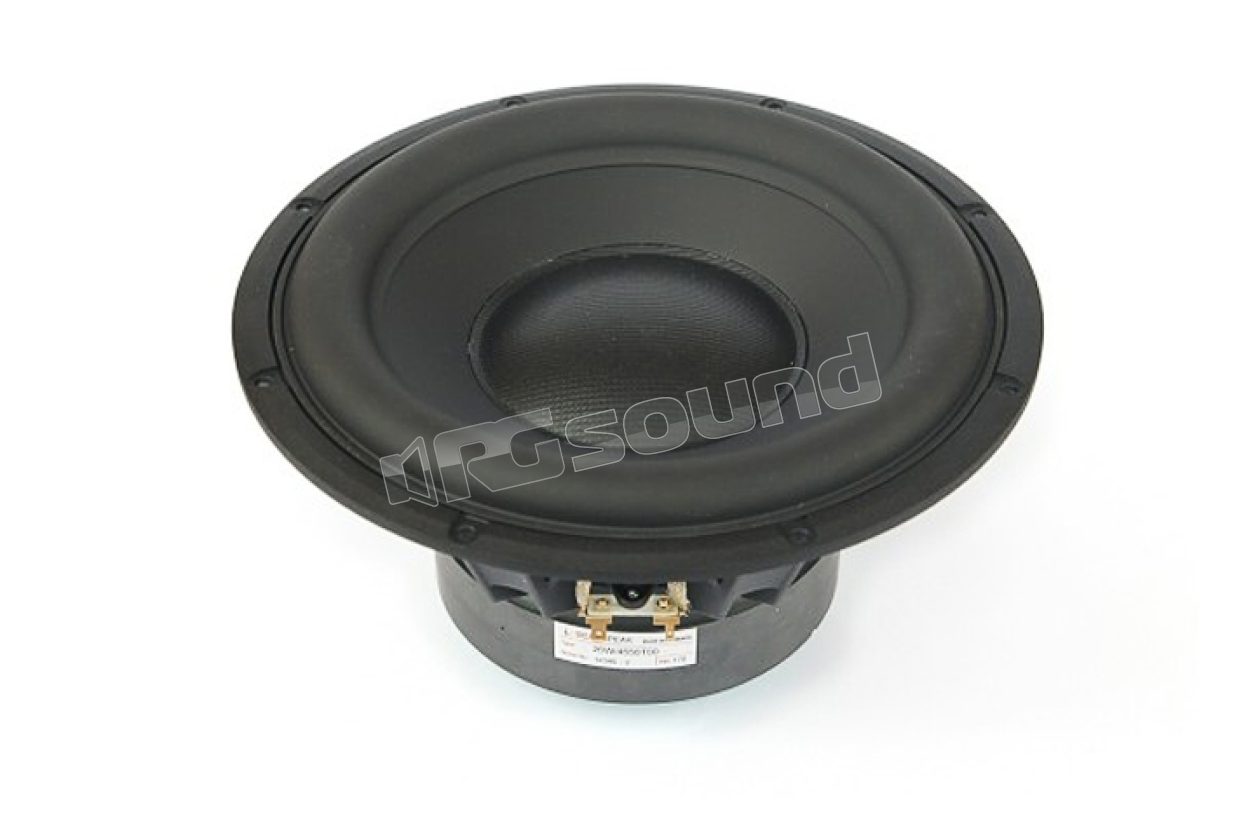

26W/4558T00 25 cm subwoofer Discovery Series

Scan Speak
Your price:
€ 304,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
350 Watt
RMS Power
150 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Weight
6,2 Kg
Installation Depth
135 mm
Woofer Material
Alluminio e fibra di vetro

Scan Speak 26w/4558t00 Discovery Series subwoofer 250 mm (10"), RMS power 150W, max power 350W, impedance 4 Ohm.

General features 26w/4558t00

Anodized aluminum basket and fiberglass cone
Maximum excursion 56mm, linear excursion 25mm
Low resonance frequency 21Hz
Sensitivity 88dB @ 2.83V

Technical features 26w/4558t00

100h RMS noise test (IEC 17.1) 150 W

Long-term max power (IEC 17.3) 350 W

Nominal impedance 4 Ω Zn

Minimum impedance 3.3 Ω Zmin

Maximum impedance 46.8 Ω Zo

DC resistance 2.6 Ω Re

Voice coil inductance 0.83 mH Le

Resonance frequency 21 Hz

Mechanical Q factor 5.56 Qms

Electrical Q factor 0.33 Qes

Total Q factor 0.31 Qts

Force factor 10.5 Tm Bl

Mechanical resistance 2.49 kg/s Rms

Moving mass 105 g Mms

Suspension compliance 0.55 mm/N Cms

Effective diaph. diameter 212 mm D

Effective piston area 352 cm² Sd

Equivalent volume 94.9 l Vas

Sensitivity (2.83V/1m) 88 dB

Ratio Bl/√Re 6.51 N/√W

Ratio fs/Qts 68 Hz

Voice coil diameter 51 mm

Voice coil height 33 mm

Voice coil layers 4

Height of gap 8 mm

Linear excursion ± 12.5 mm

Max mech. excursion ± 28 mm

Unit weight 6.2 kg

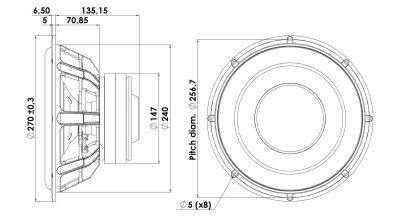

Dimensions 26w/4558t00

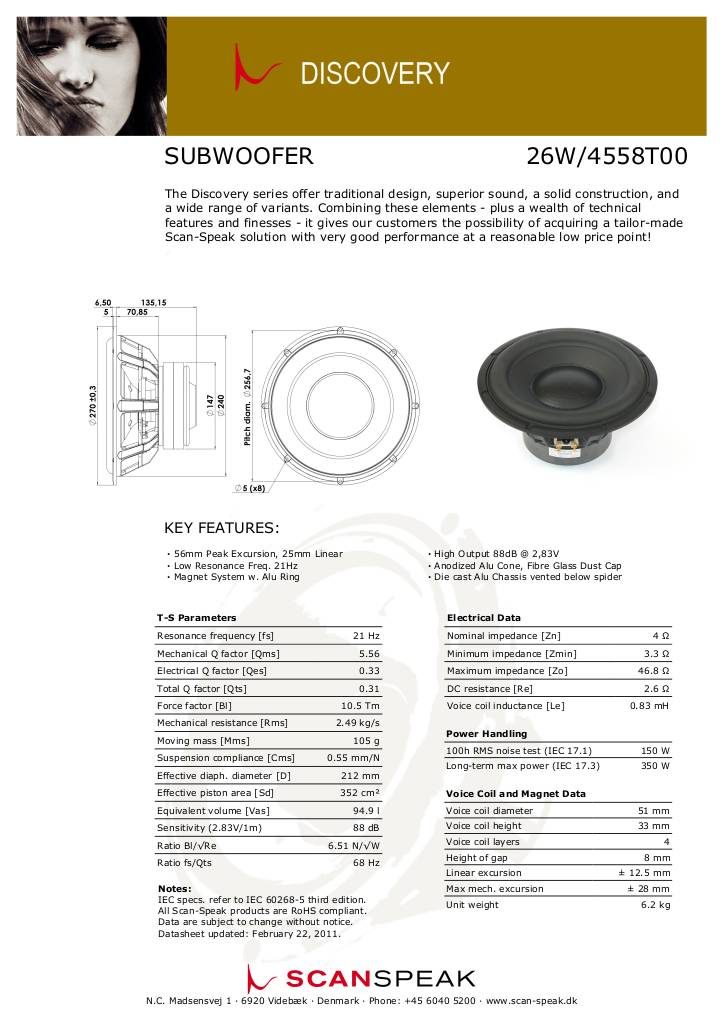

Scheda tecnica

20150312142409-26w-4558t00.pdf
€ 304,00 Price incl. VAT
