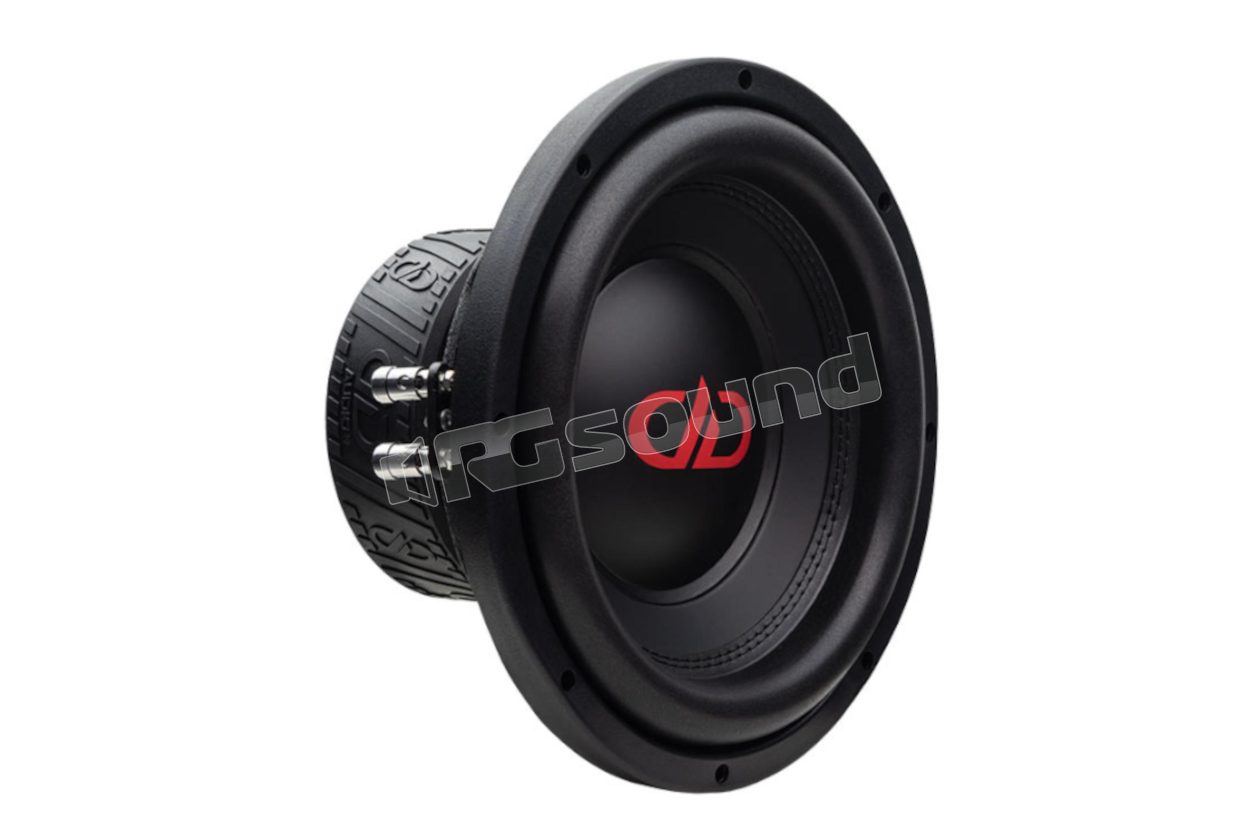

210e-D2 10" Subwoofer - 2 Ohm Version

DD Audio Digital Designs
Your price:
€ 94,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

DD Audio Digital Designs DD210eD2 10" Subwoofer - 2 Ohm Version

The brand new "e" revision of the 200 Series is available in 8", 10" and 12" models. These new drivers are designed for versatile applications in sealed enclosures and small vented or bandpass enclosures. The moving mass and dual magnet motor power are optimized to provide maximum efficiency with amplifiers in the power range between 150 and 350 watts.

The updates to this series include treated non-pressed paper cones with fiberglass reinforcement, taller and thicker EROM surrounds with black stitching, dual layer system with integrated tinsel terminals and new basket and motor cover designs that enhance the aesthetics with the DD brand.

DD210eD2 Features

  • Free flow cooling system
  • High temperature resistant voice coil
  • Dual layer system with integrated tinsel arms
  • Extended poles
  • Basket with DD logo
  • EROM surrounds with double stitching
  • Non-pressed fiberglass cones
  • Magnet cover with embossed DDesign logo

DD Audio Digital Designs DD210eD2 Technical Specifications

  • Speaker Size (inches) 10
  • RMS Power 350
  • Peak Power 1100
  • VCD (inches) 2
  • Voice Coil Impedance D2 / D4
  • Fs (Hz) 35
  • Qms 11.107
  • Qes 0.53
  • Qts 0.506
  • BL (TM) 20
  • Vas (Ltr) 32.495
  • Xmech (MM) m30
  • Xmax (MM) m10
  • Frame Outer Diameter (inches) 10.12
  • Frame Outer Diameter with Gasket (inches) 10.25
  • Mounting Diameter (inches) 9
  • Mounting Depth (inches) 4.75
  • Motor Diameter (inches) 1.7
  • Motor Depth (inches) 5.27
  • Magnet Weight (ounces) 55
  • Displacement (liters) 0.05
  • Sealed Enclosure (cubic feet) 0.5 - 0.7
  • Ported Enclosure (cubic feet) 0.5 - 1.25
€ 94,00 Price incl. VAT
