2/794 46 cm Subwoofer

Phonocar

Discontinued

Your price:
€ 373,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
30 - 1500 Hertz
Sensitivity
98 dB
Impedance
4 Ohm
Weight
11 Kg
Installation Depth
207 mm
Woofer Material
fibra di cellulosa trattata

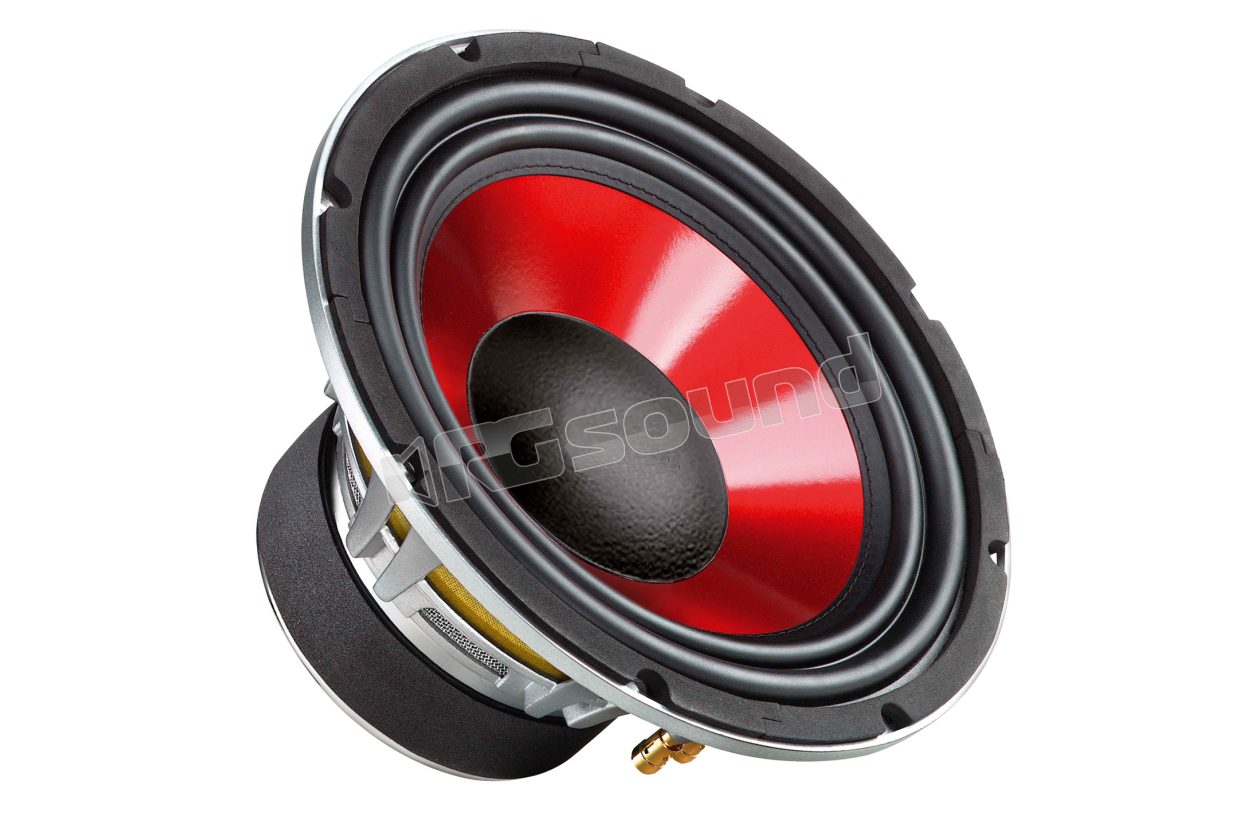

Phonocar 2/794 - Subwoofer SPL 46cm

Kapton voice coil and long-excursion mechanics for high SPL performance

Recommended installation in reflex box 90 liters with duct diameter 140mm and length 165mm



General Features:

Sub-Woofer 460mm Hi-Tech
Power 1000 W Rms
Impedance 4 Ohm. Efficiency 99 dB
Voice coil Ø 100mm. Aluminum basket
Treated cellulose membrane
Dimensions Ø 465mm - D 180mm


Technical Specifications:
Power Watt Rms 1.000
Frequency Response (Hz) 30÷1.500
S.P.L. 1W/1m (dB) 98
Impedance (Ω) 4
Voice coil Ø (mm) 100
Voice Coil Resistance (Re) (Ω) 3.20
Resonance Frequency (Hz) 30
Mech. Q-Factor (Qms) - 14.82
Elect. Q-Factor (Qes) - 0.39
Total Q-Factor (Qts) - 0.38
Moving Mass (Mms) (g) 253
Effective cone diameter (D) (mm) 400
Equivalent air volume (Vas) (mc) 245
BxL (Wb/m) 19.8
Voice coil inductance (Le/1 KHz) (mH) 1.80
Linear mathematical (Xmax) (mm) ± 10

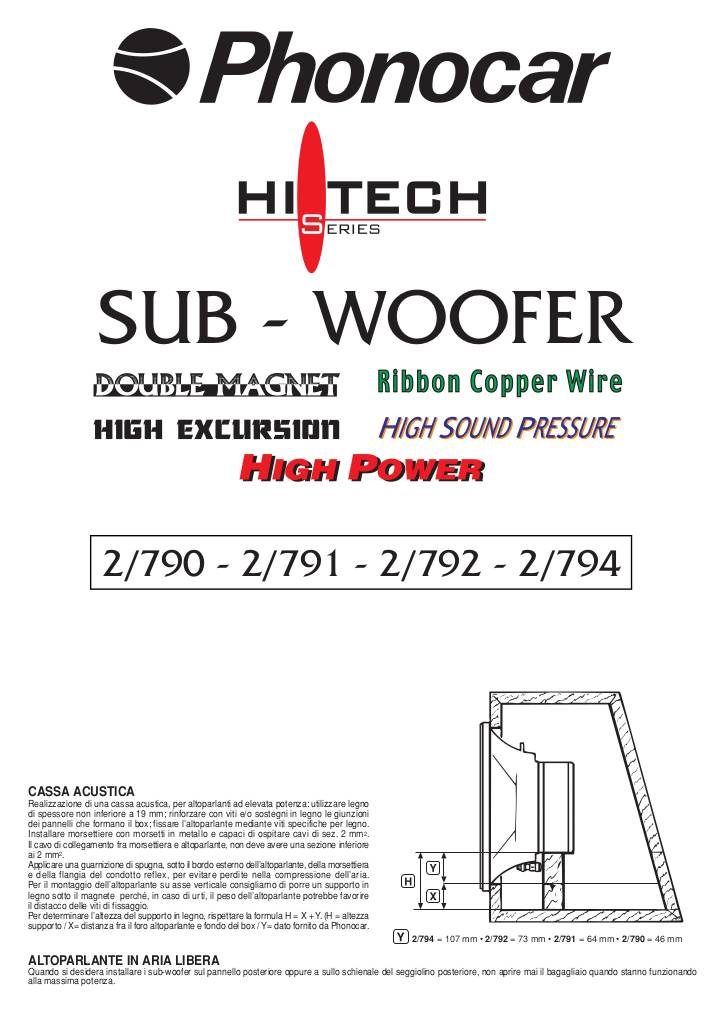

Scheda tecnica - specifiche - progetti box

20120109185750-fihitech.pdf
