2.6K3U 3-way speaker system with UMA

ESB car audio
Your price:
€ 314,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
20 millimetri
Tweeter Size
25 millimetri
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
65 - 9000 Hertz
Sensitivity
91.5 dB
Impedance
4 Ohm

ESB car audio 2.6K3U 3-way speaker system with UMA

The 3-way system ESB 2.6K3U combines artisanal precision and cutting-edge technology to deliver an extraordinary listening experience. With the Mid-High Unit 2.UMA and the Mid-Woofer 2.165 II, this system offers impeccable audio reproduction. 2.UMA, conceived with inspiration from the '70s, is designed to concentrate the emissions of the midrange and tweeter at a single virtual point, eliminating phase delays and irregularities at the crossover point.

The tweeter, equipped with a thin fabric dome diaphragm impregnated with silk and external suspension coated with high-loss damping material, ensures homogeneous sound free from unwanted resonances. The midrange, with its waterproof pressed paper cone and high-precision voice coil, offers lightness, rigidity and vibration damping capability for faithful and accurate reproduction.

The Mid-Woofer 2.165 II is characterized by an ABS basket reinforced with fiberglass, which offers maximum torsional rigidity and minimal air resistance. The waterproof pressed paper cone and single-wave rubber surround with high damping ensure precise and controlled response even at the lowest frequencies, while the voice coil and high-quality ferrite magnet guarantee superior performance and long-term reliability.

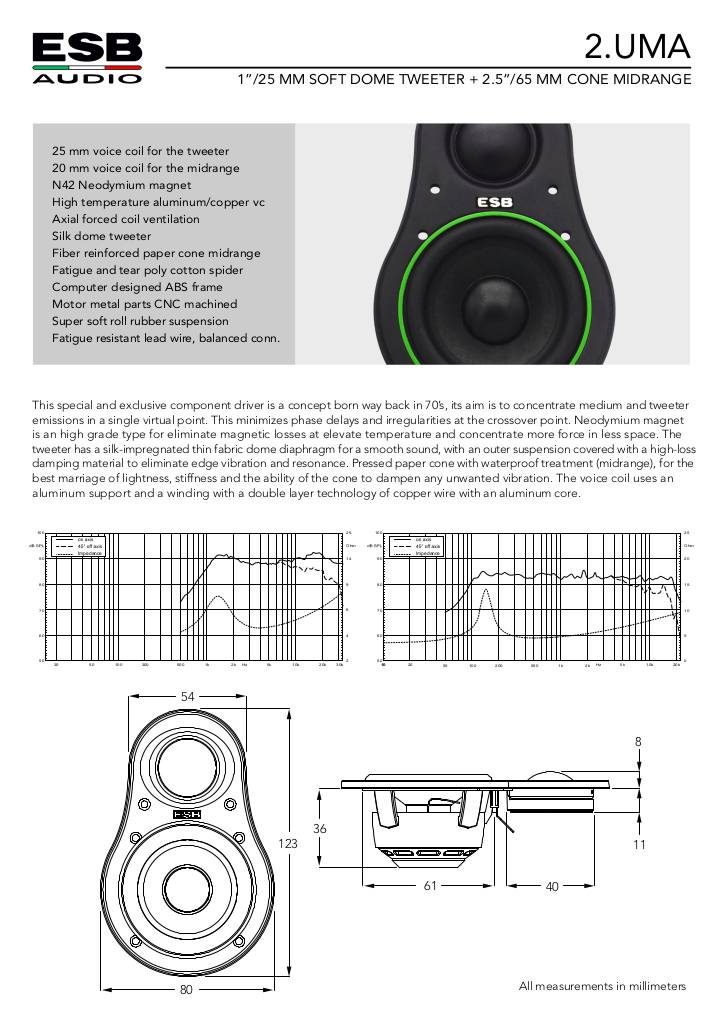

Scheda Tecnica 2.UMA

n-20240503095234-data-sheet-2-uma-04-23.pdf

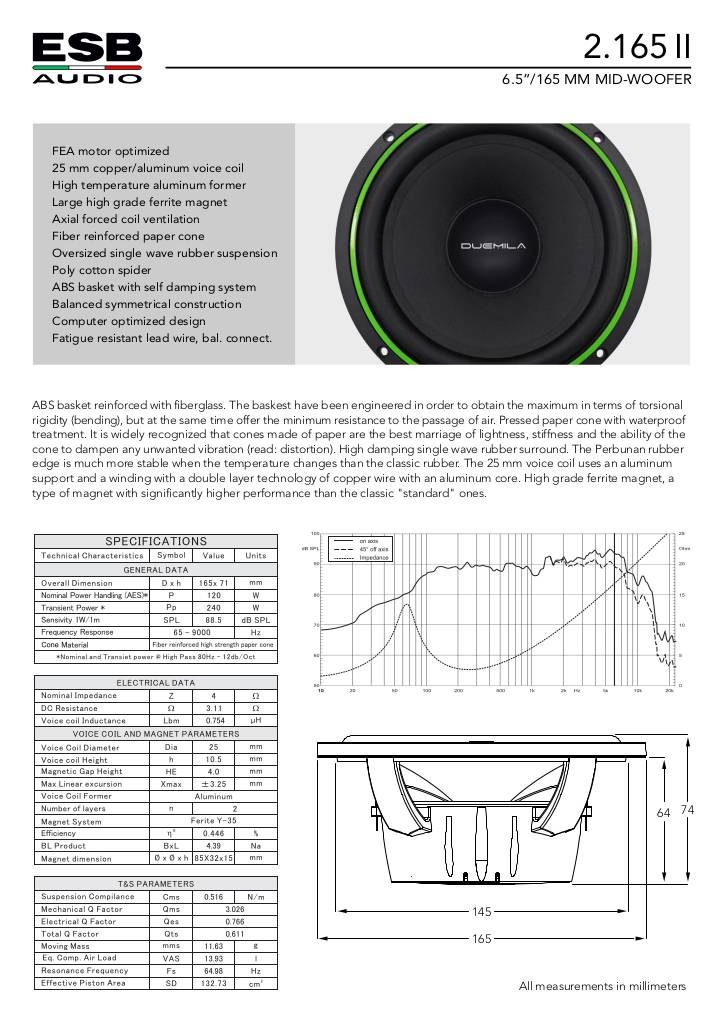

Scheda tecnica 2.165II

n-20240503095234-data-sheet-2-165ii-04-23.pdf

ESB car audio 2.6K3U Technical specifications

Mid-High 2.UMA

  • Nominal impedance: 4 Ohm
  • Nominal power: 60 (mid), 80 (tw) W
  • Transient power: 120 (mid), 160 (tw) W
  • Frequency response: 100 Hz - 25 KHz
  • Sensitivity: 86 (mid), 92 (tw) dB 2.83v/1m

Mid-Woofer 2.165 II

  • Nominal impedance: 4 Ohm
  • Nominal power: 120 Watt
  • Transient power: 240 Watt
  • Frequency response: 65 Hz - 9 KHz
  • Sensitivity: 91.5 dB 2.83v/1m
€ 314,00 Price incl. VAT
