2.6K2 B con Crossover 165mm Sound Quality 2-Way System

ESB car audio
Your price:
€ 157,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 20.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
120 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Cupola in Torcon

ESB car audio 2.6K2 Two-way system

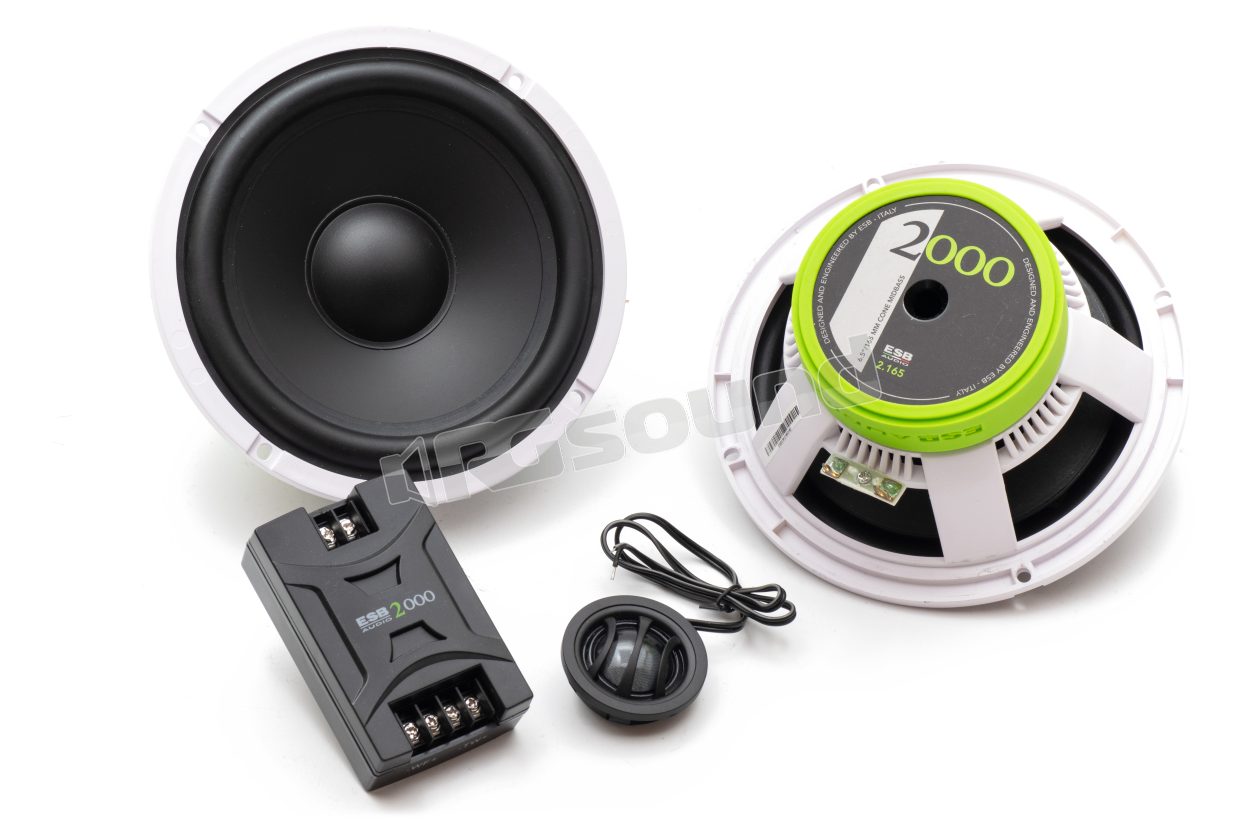

Two-way system with pair of 165 mm mid-woofers, pair of 25 mm tweeters, pair of metal grilles, screws and accessories.
This system can be virtually used on any car, ESB 2.6K2 is able to produce exceptional sound even with moderate power amplifiers. A reference product for its category, with a decidedly advantageous quality-to-price ratio.
Strengths of 2.165 woofers
Optimized magnetic motor with FEA simulation to guarantee perfectly symmetrical magnetic flux in both cone movement directions. Metal parts machined from solid and refined with CNC processing for maximum linearity of magnetic flux and minimal loss, this reduces distortion at high power levels.
25 mm dual layer voice coil CCAW (copper-coated aluminum wire) wound on an aluminum former for exceptional power handling and distortion-free reproduction even for the most demanding musical passages. Exponential cone constructed with a compound of cellulose pulp and hemp fiber (CELEMPTM), ensures a perfect balance between rigidity and weight.
2.6K2 Features
  • 2-way speaker system
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 65 Hz ~ 20 KHz
Tweeter
  • 25 mm voice coil
  • Neodymium magnet
  • Torcon® dome
  • dB Cloth® dome damping material
  • Ferrofluid cooling and damping
Woofer
  • FEA optimized motor
  • Ferrite magnet
  • Exponential cone in CELEMPTM
  • Progressive cotton surround

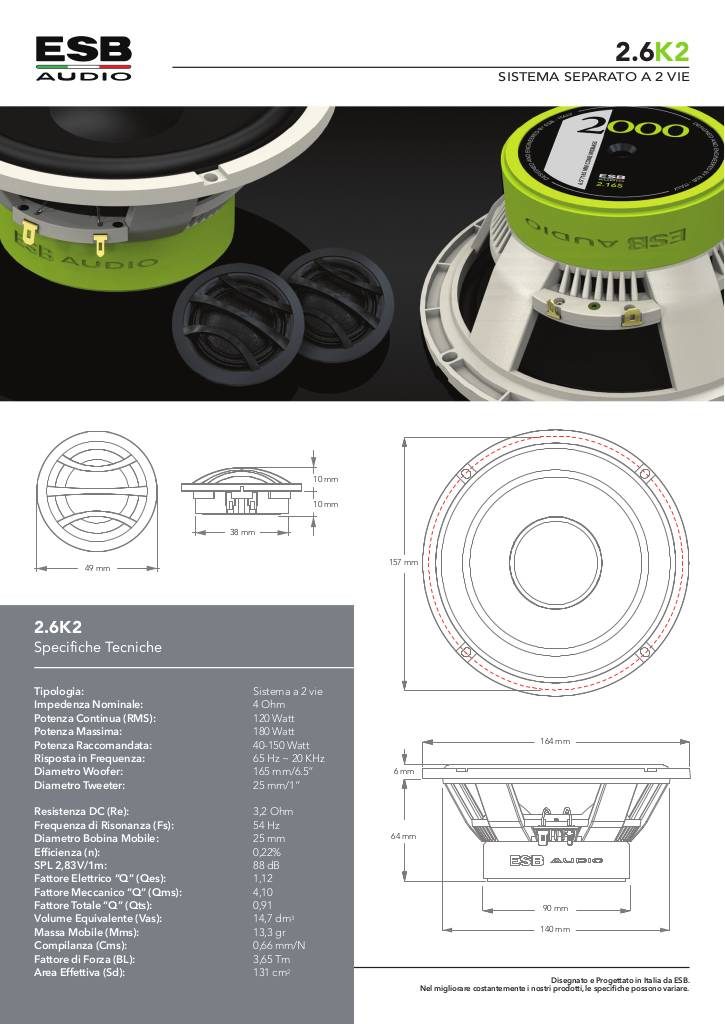

Scheda tecnica woofer

n-20210122122120-2-6k2.pdf

ESB car audio 2.6K2 Technical specifications

  • Type: 2-way system
  • Nominal Impedance: 4 Ohm
  • Continuous Power (RMS): 120 Watt
  • Maximum Power: 180 Watt
  • Recommended Power: 40-150 Watt
  • Frequency Response: 65 Hz ~ 20 KHz
  • Woofer Diameter: 165 mm / 6.5"
  • Tweeter Diameter: 25 mm / 1"
  • DC Resistance (Re): 3.2 Ohm
  • Resonance Frequency (Fs): 54 Hz
  • Voice Coil Diameter: 25 mm
  • Efficiency (n): 0.22% SPL 2.83V/1m: 88 dB
  • Electrical Factor "Q" (Qes): 1.12
  • Mechanical Factor "Q" (Qms): 4.10
  • Total Factor "Q" (Qts): 0.91
  • Equivalent Volume (Vas): 14.7 dm3
  • Moving Mass (Mms): 13.3 gr
  • Compliance (Cms): 0.66 mm/N
  • Force Factor (BL): 3.65 Tm
  • Effective Area (Sd): 131 cm2
