18WRS600

Beyma
Your price:
€ 230,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
1.200 Watt
RMS Power
600 Watt
Frequency Response
35 - 1.000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
10 Kg
Installation Depth
205 mm
Voice Coil Diameter
76 mm

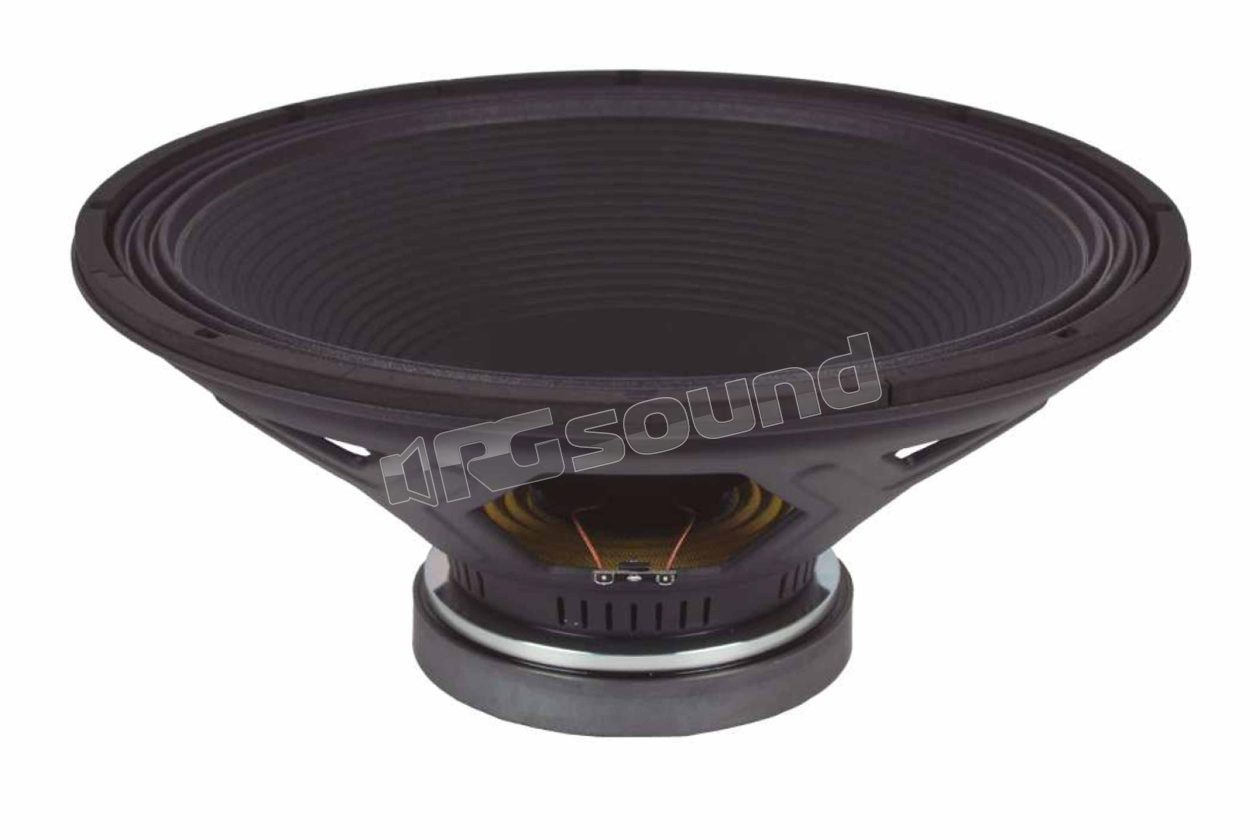

Beyma 18WRS600subwoofer 46cm (18") low distortion, maximum power 1,200 W and high sensitivity: 98 dB (1W / 1m)

  • Exclusive Malt Cross® technology cooling system
  • FEA optimized ferrite magnetic circuit
  • Ultra low air noise
  • Designed with MMSS technology
  • Preliminary technical datasheet
  • Optimized non-linear behavior
  • Weather-resistant cone with treatment on both sides
  • 3" copper voice coil
  • Optimized stamped steel frame
  • Extended controlled displacement: Xmax ± 8.5 mm
  • Peak-to-peak excursion of 53 mm before damage
  • Optimized for direct radiation subwoofer applications

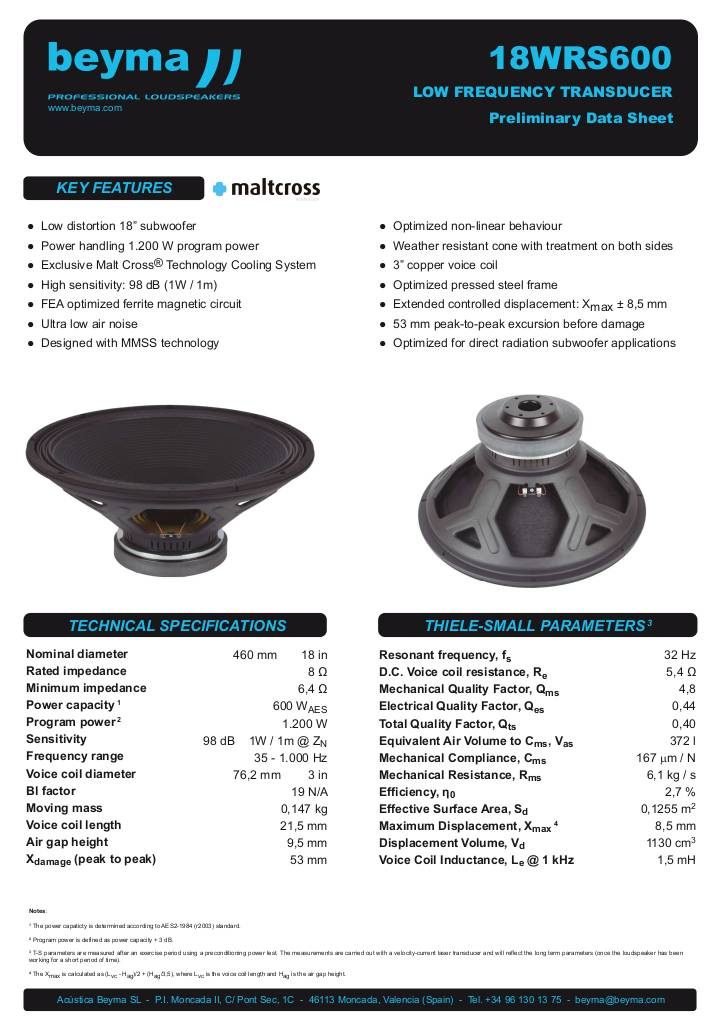

Scheda tecnica

n-20180426173143-18wrs600.pdf

Technical specifications Beyma 18WRS600

Nominal diameter 460 mm 18 in

Nominal impedance 8 Ohm

Minimum impedance 6.4 ohm

Power capacity 600 W AES

Program power 1200 W

Sensitivity 98 dB 1 W @ 1 m @ ZN

Frequency range 35-1000 Hz

Voice coil diameter 76.2 mm 3 in

BL factor 19 N/A

Moving mass 0.147 kg

Winding length 21.5 mm

Air gap height 9.5 mm

Xdamage pp 53 mm

Fs 32 Hz

Re 5.4 ohm

Qms 4.8

Qes 0.44

Qts 0.4

Vas 372 l

Cms 167 µm / N

Rms 6.1 kg/s

Efficiency %2.7

Sd 0.1255 m²

Xmax 8.5 mm

Vd 1130 cm³

Le @ 1 kHz1.5 mH

Depth 218 mm 8.58 in

Net weight 8.7 kg 19.2 lb

Total weight 10 kg 22 lb

Magnet Ferrite

€ 230,00 Price incl. VAT
