18QLEX1600Fe

Beyma
Your price:
€ 489,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
3200 Watt
RMS Power
1600 Watt
Frequency Response
30-1000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
14,6 Kg
Installation Depth
233 mm
Voice Coil Diameter
101,6 mm

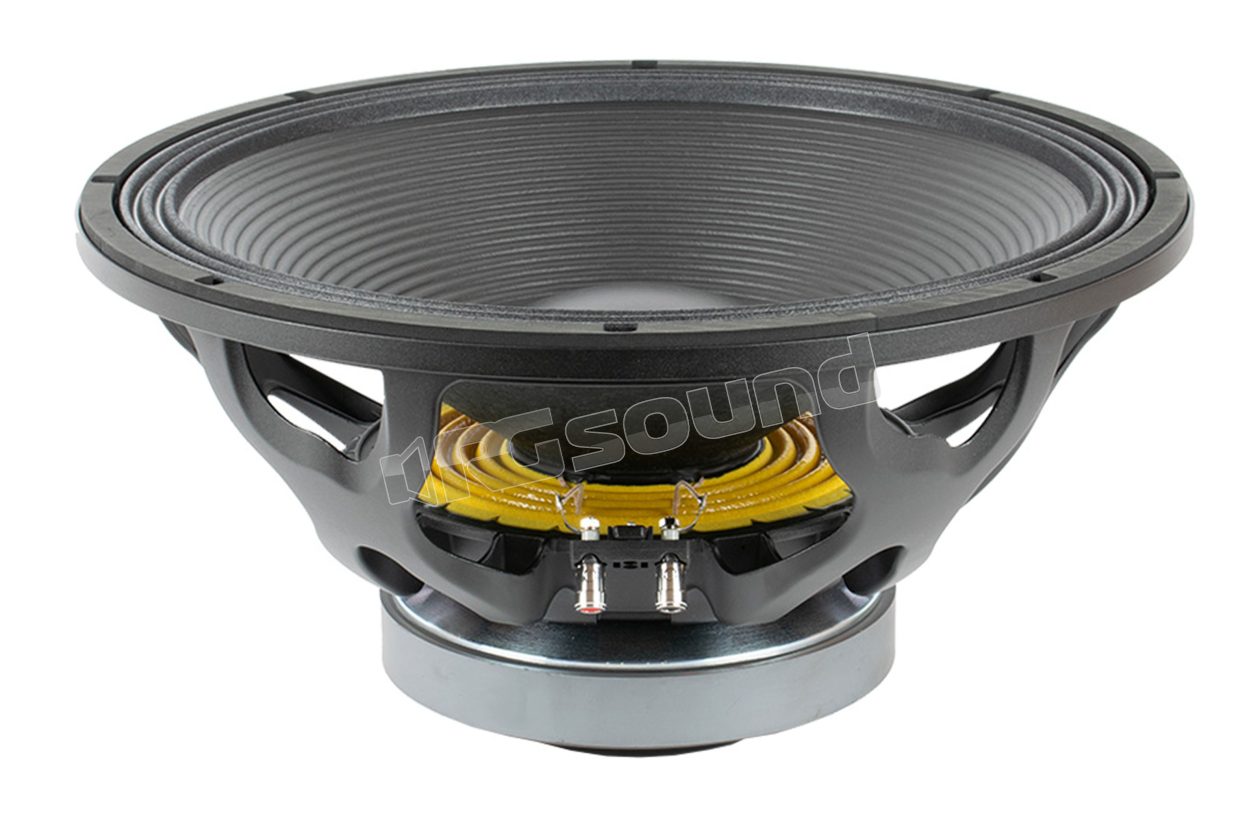

Beyma 18QLEX1600Fe subwoofer 46cm (18") with 1600 Watt RMS, impedance 8 Ohm

Nominal impedance 8 Ohm
Power handling capacity 1600 W AES
Nominal diameter 460 mm 18 inches
Sensitivity 97 dB 1 W @ 1 m @ ZN
Minimum impedance 6.3 ohm
Frequency range 30-1000 Hz
Program power 3200 W.
Recommended enclosure volume 125 l
Voice coil diameter 101.6 mm 4 inches
BL factor 36.4 N / A
Moving mass 0.323 kg
Winding length 32 mm
Air gap height 15 mm
Xdamage pp 60 mm

Beyma 18QLEX1600Fe technical specifications

Thiele & Small Parameters
Fs 30 Hz
Ri 5.3 ohm
qms 6.5
QES 0.24
Qts 0.23
Vas 195 l
Cms 88 µm / N
Rms 9.3 kg / s
Efficiency% 2.1
Sd 0.1255 m²
Xmax 13 mm
vd 1631 cm³
Le @ 1 kHz 3.9 mH

Construction details
Depth 233 mm 9.2 inches
Net weight 14.6 kg 32.1 lbs
Total weight 15.9 kg 35.0 lbs
Ferrite magnet

€ 489,00 Price incl. VAT
