18PWB1000Fe/S

Beyma
Your price:
€ 420,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
30 - 2000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
13,5 Kg
Installation Depth
212 mm
Voice Coil Diameter
101 mm

Beyma 18PWB1000Fe/S subwoofer 46cm / 18" PWB Series

High power handling: 2,000 W program power
4" voice coil
High sensitivity: 96 dB (1W / 1m)
FEA optimized magnetic circuit
Ferrite magnet
Low power compression losses
Weather-resistant cone with treatment on both sides
High excursion capability: X max ± 12.5 mm
Low frequency extension, deep sound and high control

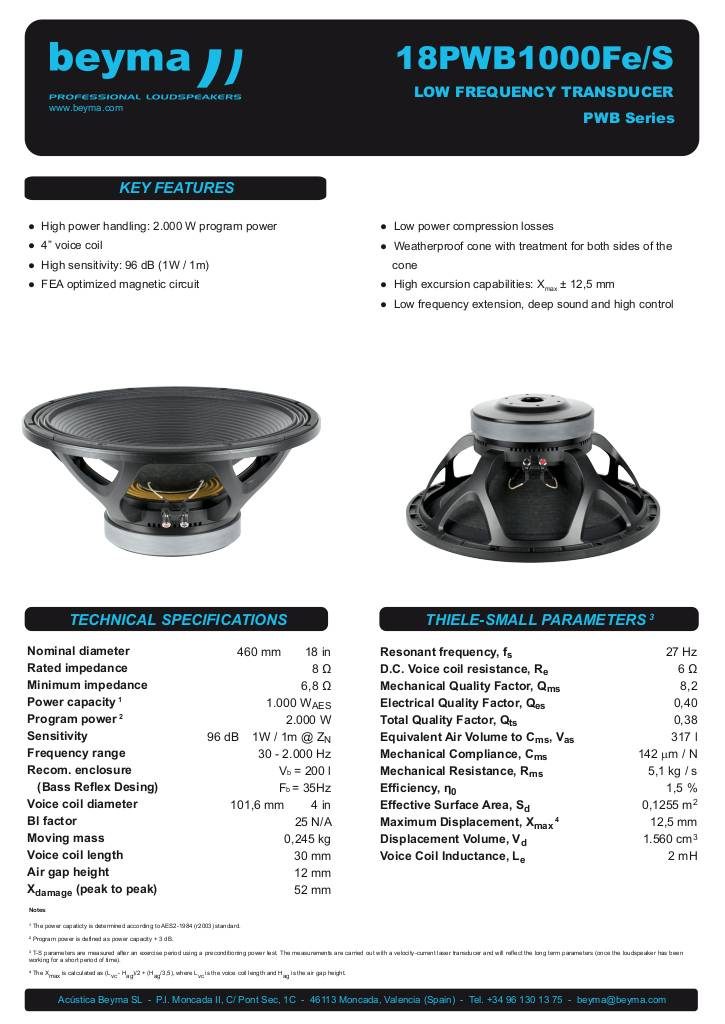

Scheda tecnica

n-20221228143123-beyma-speakers-data-sheet-low-mid-frequency-18pwb1000fes.pdf

Beyma 18PWB1000Fe/S technical specifications

Nominal impedance 8 Ohm
Power handling 1000 W AES
Nominal diameter 460mm 18 inches
Sensitivity 96 dB 1 W/1 m @ ZN
Minimum impedance 6.8ohm
Frequency range 30-2000Hz
Program power 2000 W
Recommended enclosure volume 200 l
Voice coil diameter 101.6 millimetres 4 inches
BL factor 25 N/D
Moving mass 0.245 kg
Winding length 30 mm
Air gap height 12mm

Xdamage pp 52 mm
Fs 27Hz
Rif 6 ohm
Qms 8.2
Qes 0.4
Qt 0.38
Vas 317 litres
Cms 142 µm/n
Rms 5.1 kg/sec
Efficiency % 1.5
SD 0.1255 mq
Xmax 12.5mm
Vd 1560 cm³
Le @1 kHz 2 mH

Depth 212 mm 8.3 inches
Net weight 13.5 kilograms 29.8 pounds
Total weight 15.1 kg 33.9 pounds

€ 420,00 Price incl. VAT
