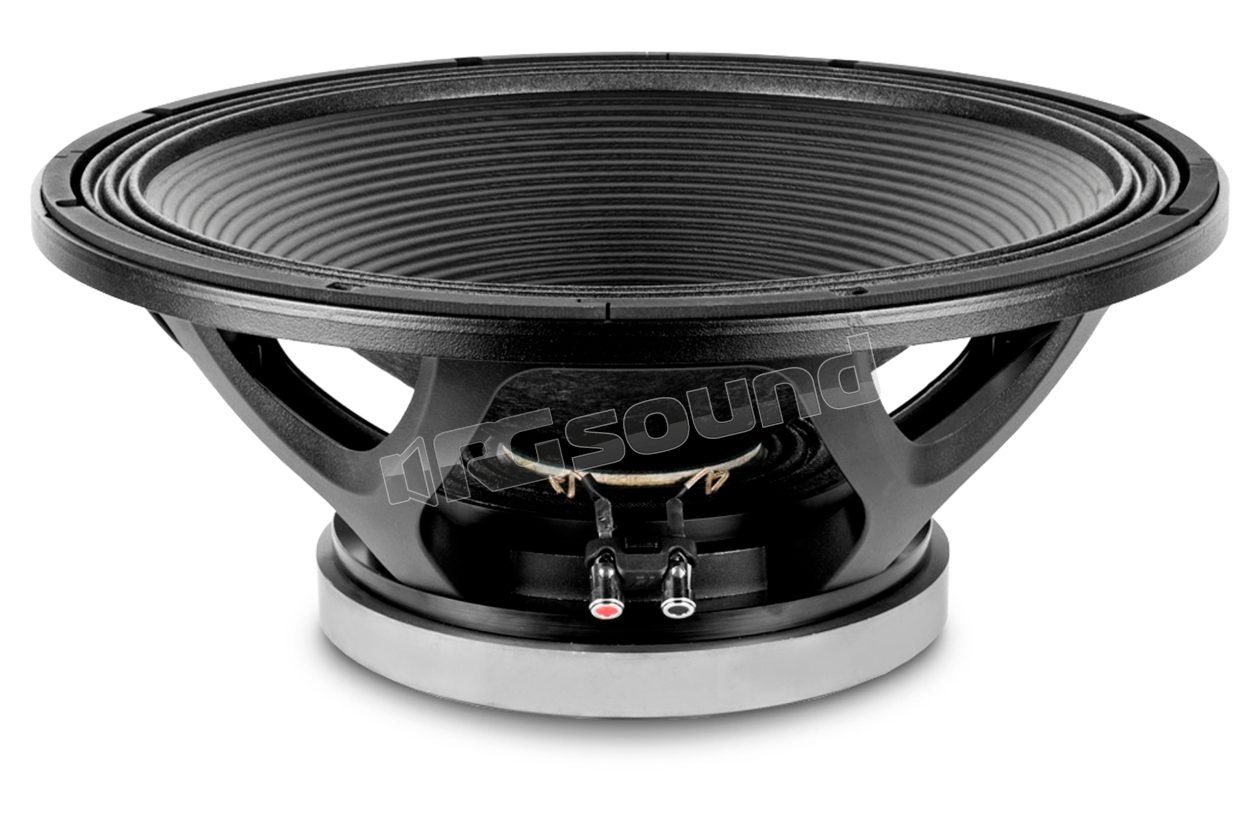

18PW1400Fe/S 460mm subwoofer, 1400 Watt AES power

Beyma
Your price:
€ 442,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2800 Watt
RMS Power
1400 Watt
Frequency Response
25 - 1800 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
16,9 Kg
Installation Depth
206 mm
Voice Coil Diameter
101 mm

Beyma 18PW1400Fe/S 46 cm subwoofer with high power handling: 1,400 Watts AES

Exclusive cooling system with Malt Cross technology
Low power compression losses
High sensitivity: 98 dB (1W/1m)
Ferrite magnetic circuit optimized FEA
Optimized non-linear parameters
Weather-resistant cone with treatment on both sides
4" DUO voice coil in double-layer in/out copper
Aluminum demodulator ring
Ferrite magnet
Controlled extended displacement: Xmax ± 10 mm
Peak-to-peak excursion of 55 mm

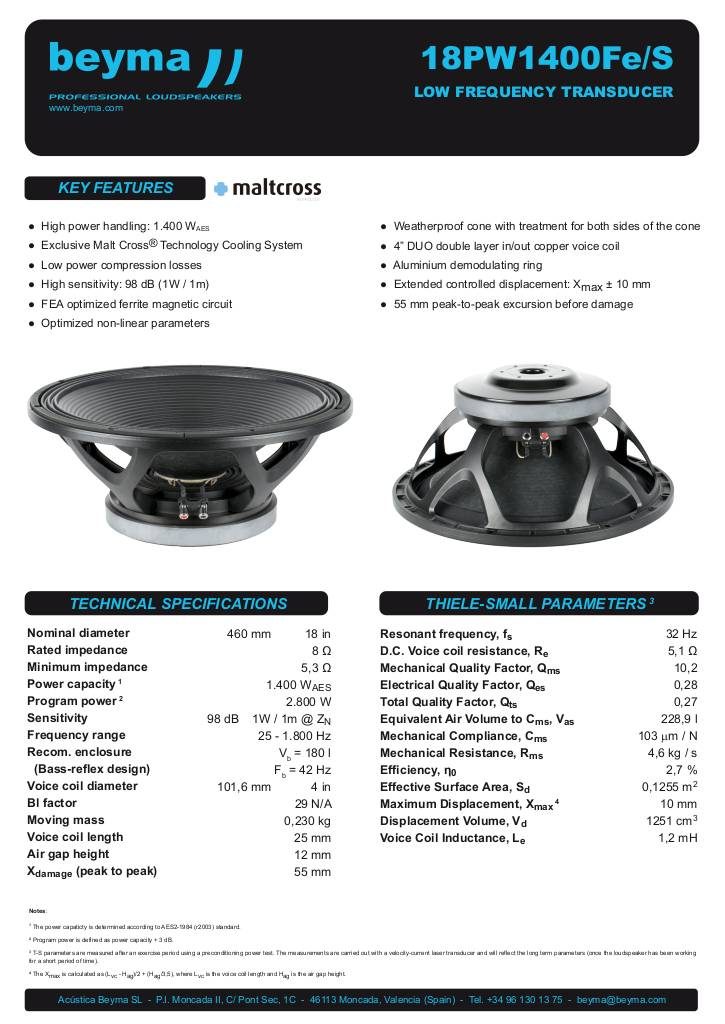

Scheda tecnica

n-20221228124723-beyma-speakers-data-sheet-low-mid-frequency-18pw1400fes.pdf

Beyma 18PW1400Fe/S technical specifications

Nominal impedance 8 Ohm
Power handling capacity 1400 W AES
Nominal diameter 460 mm 18 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 5.3 Ohm
Frequency range 25-1800 Hz
Program power 2800 W
Recommended cabinet volume 180 lt
Voice coil diameter 101.6 millimeters 4 inches
BL factor 29 N/D
Moving mass 0.230 kg
Winding length 25 mm
Air gap height 12 mm
Xdamage pp 55 mm

Thiele & Small Parameters
Fs 32 Hz
Rif 5.1 Ohm
Qms 10.2
Qes 0.28
Qt 0.27
Vas 228.9 l
Cms 103 µm/n
Rms 4.6 kg/sec
Efficiency % 2.7
SD 0.1255 mq
Xmax 10 mm
Vd 1251 cm³
Le @1 kHz 1.2 mH

Depth 206.5 mm 8.1 inches
Net weight 16.9 kg 37.26 pounds
Total weight 18.2 kilograms 40.1 pounds

€ 442,00 Price incl. VAT
