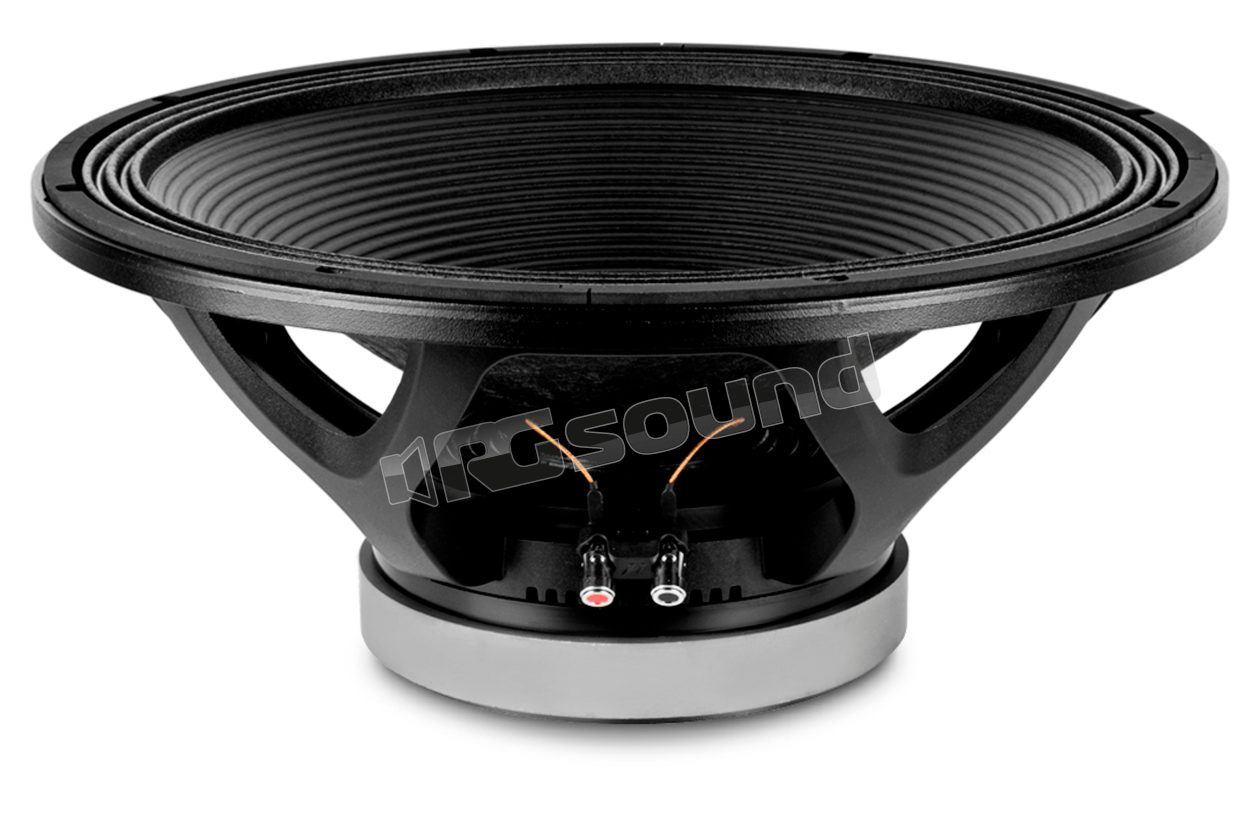

18P1000FeV2/S 460mm subwoofer, 1200 Watt AES power

Beyma
Your price:
€ 425,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2400 Watt
RMS Power
1200 Watt
Frequency Response
30 - 2000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
13 Kg
Installation Depth
212 mm
Voice Coil Diameter
101 mm

Beyma 18P1000FeV2/S subwoofer P1000 Series 46cm / 18"

Ferrite magnet
High maximum power handling 2,400 W
4" copper voice coil.
High sensitivity: 98 dB (1W / 1m)
FEA optimized magnetic circuit
Weather-resistant cone with treatment on both sides
CONEX spider
High excursion capability: X max ± 8 mm
Low frequency extension and high control

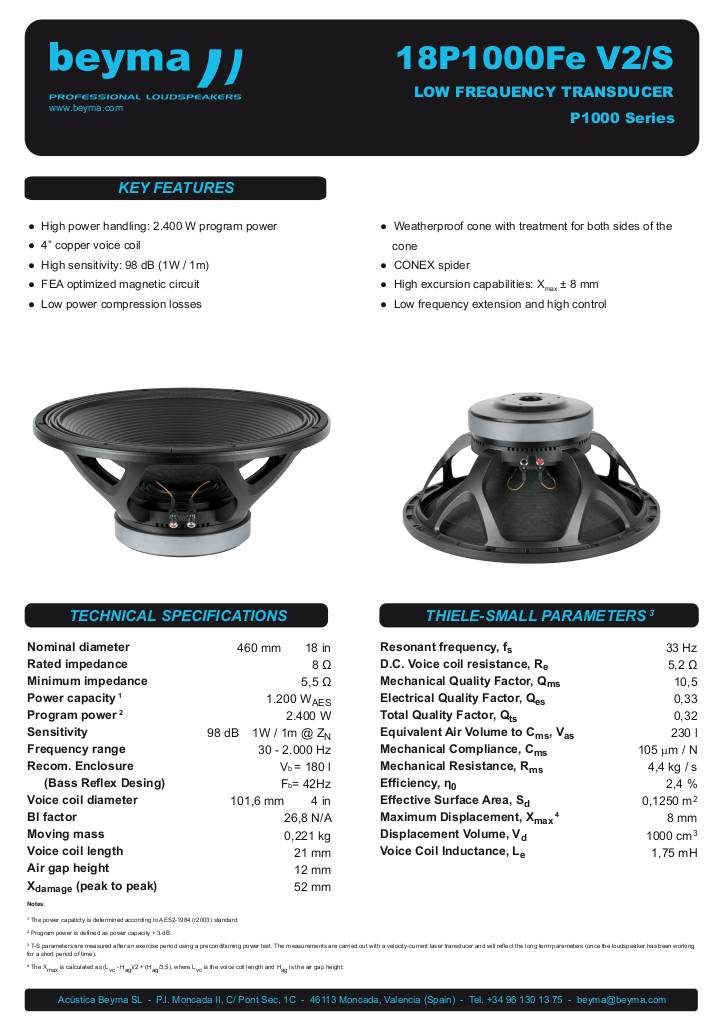

Scheda tecnica

n-20221228123848-beyma-speakers-data-sheet-low-mid-frequency-18p1000fev2s.pdf

Beyma 18P1000FeV2/S technical specifications

Nominal impedance 8 Ohm
Power handling 1200 W AES
Nominal diameter 460mm 18 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 5.5 Ohm
Frequency range 30-2000Hz
Program power 2400 W
Recommended enclosure volume 180 lt
Voice coil diameter 101.6 millimeters 4 inches
BL factor 26.8 N/D
Moving mass 0.221 kg
Winding length 21 mm
Air gap height 12mm
Xdamage pp 52 mm

Thiele & Small Parameters
Fs 33Hz
Rif 5.2 Ohm
Qms 10.5
Qes 0.33
Qt 0.32
Vas 230 lt
Cms 105 µm/n
Rms 4.4 kg/sec
Efficiency % 2.4
SD 0.1250 mq
Xmax 8mm
Vd 1000 cm³
Le @1 kHz 1.75 mH

Depth 212 mm 8.3 inches
Net weight 13.5 kilograms 29.8 pounds
Total weight 15.8 kg 32.6 pounds

€ 425,00 Price incl. VAT
