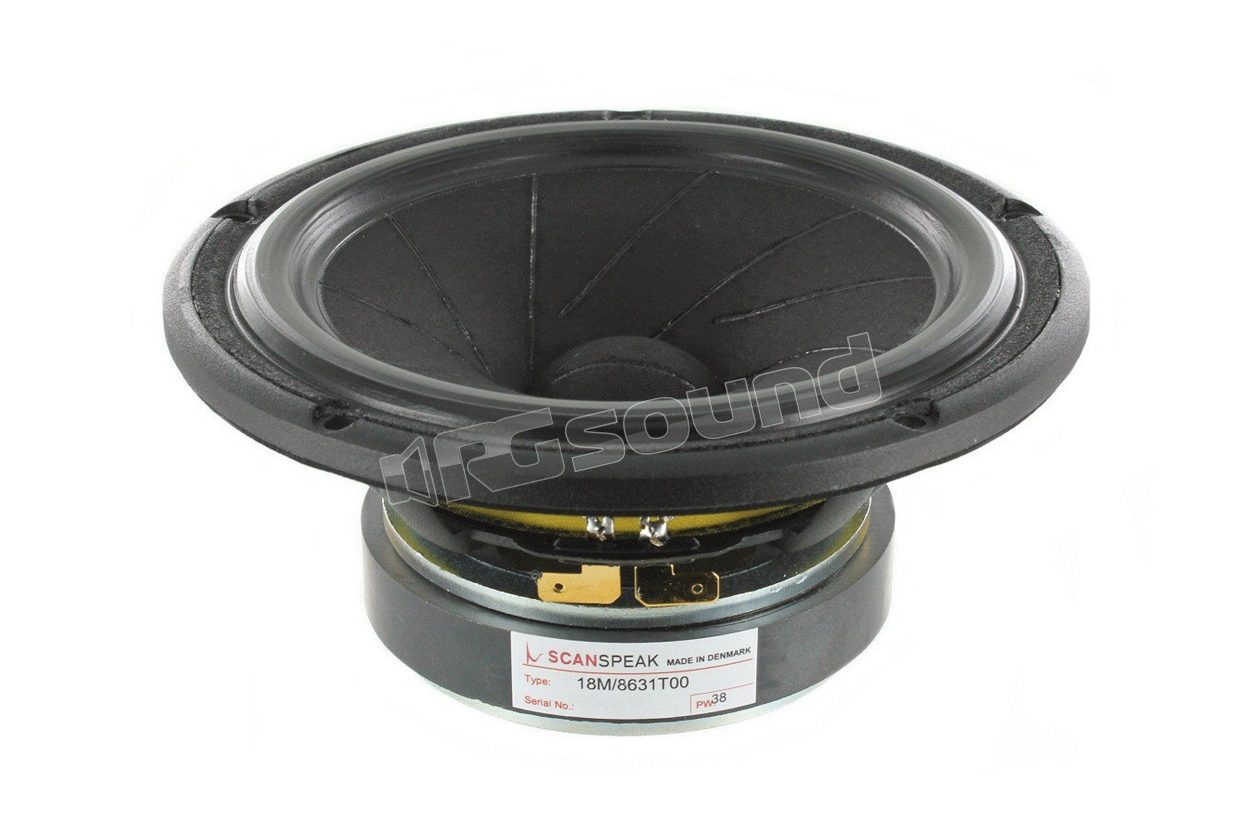

18M/8631T00 165mm midrange with sliced paper cone

Scan Speak
Your price:
€ 436,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
250 Watt
RMS Power
120 Watt
Frequency Response
70 - 6.000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
1,7 Kg
Installation Depth
77 mm
Voice Coil Diameter
38 mm

Scan Speak 18M/8631T00 midrange 165mm (6½") with carved paper cone, 8 Ohm impedance.

The Midrange and MidWoofer drivers of the Scan Speak Revelator series are well known for their cone technology. The carved cuts are filled with damping adhesive that drastically reduces cone break-up. Combined with low-loss suspensions and the patented magnetic group with Symmetrical Drive technology (SD-1), they represent a step forward in midrange clarity and overall regular frequency response.

Nominal impedance 4 Ω

Re 3.9 Ω

Sensitivity 1W/1m 92 dB

fs 65 Hz

Voice coil diameter 38 mm

Nominal power 120 W

Maximum power 250 W

Bxl 5.6 Tm

Mms 14.3 gr

Cms 0.42 mm/N

Sd 154 cm²

Lev c 0.16 mH

Zo 29 Ω

Xmax ± 3.00 mm

Vas 14.0 l

Qts 0.60

Qms 5.65

Qes 0.67

Ferrite magnet

Paper cone

Treated foam suspension

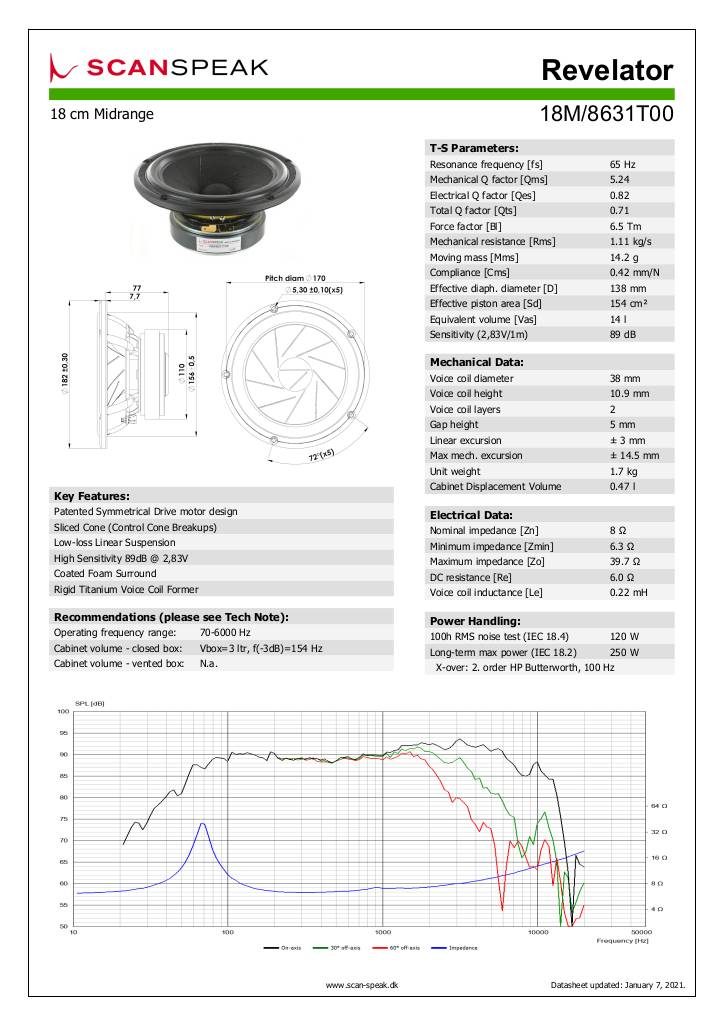

Scheda tecnica

n-20210527100952-18m-8631t00.pdf
€ 436,00 Price incl. VAT
