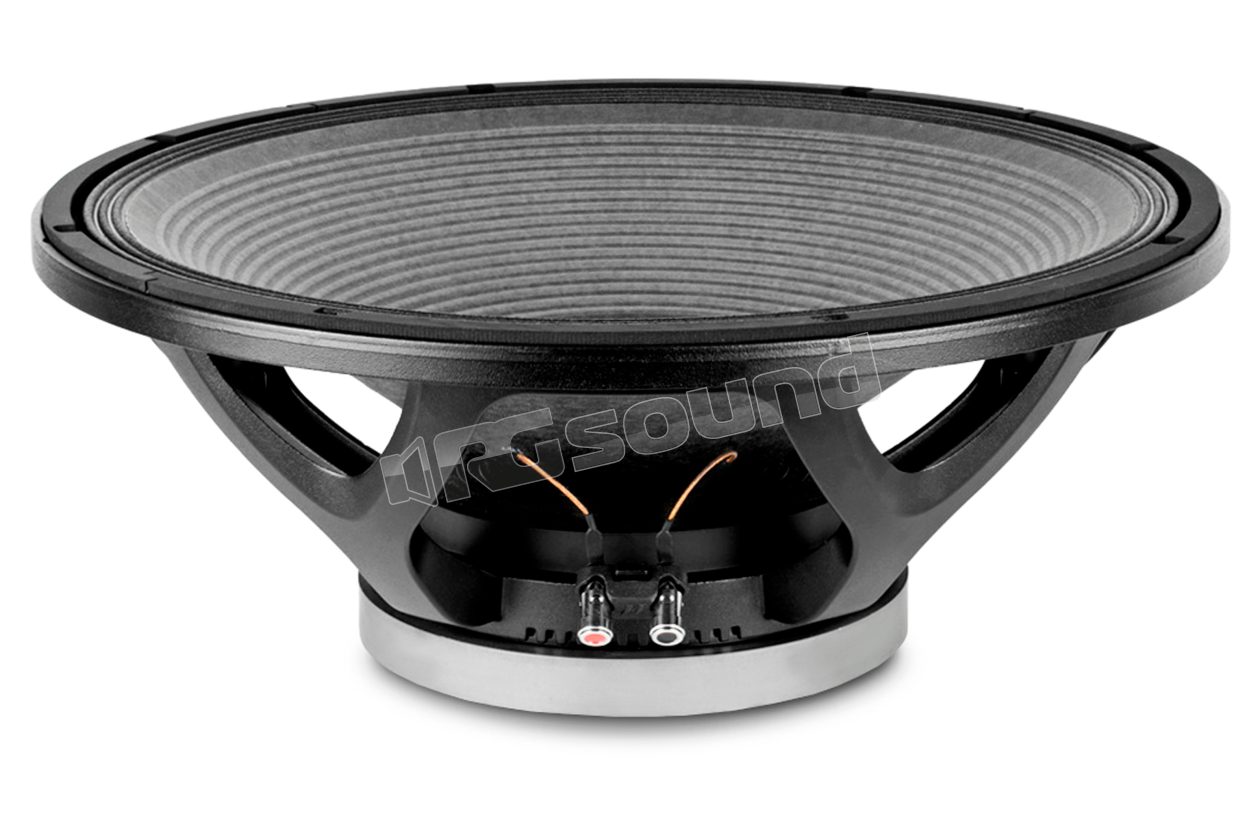

18LX60V2/S 460mm subwoofer, 700 Watt AES power

Beyma
Your price:
€ 358,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
25 - 1000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
11 Kg
Installation Depth
193 mm
Voice Coil Diameter
101 mm

Beyma 18LX60V2/S subwoofer LX60 Series 46cm, 700 Watt, 8 Ohm

Ferrite Magnet
High power handling: 700 WAES
High sensitivity: 98 dB (1W / 1m)
FEA optimized magnetic circuit
CONEX spider for greater resistance and uniformity
Weather-resistant cone with treatment on both sides of the cone
4" dual layer voice coil in/out
Controlled extended excursion: X max ± 9 mm
Peak-to-peak excursion of 47 mm

Scheda tecnica

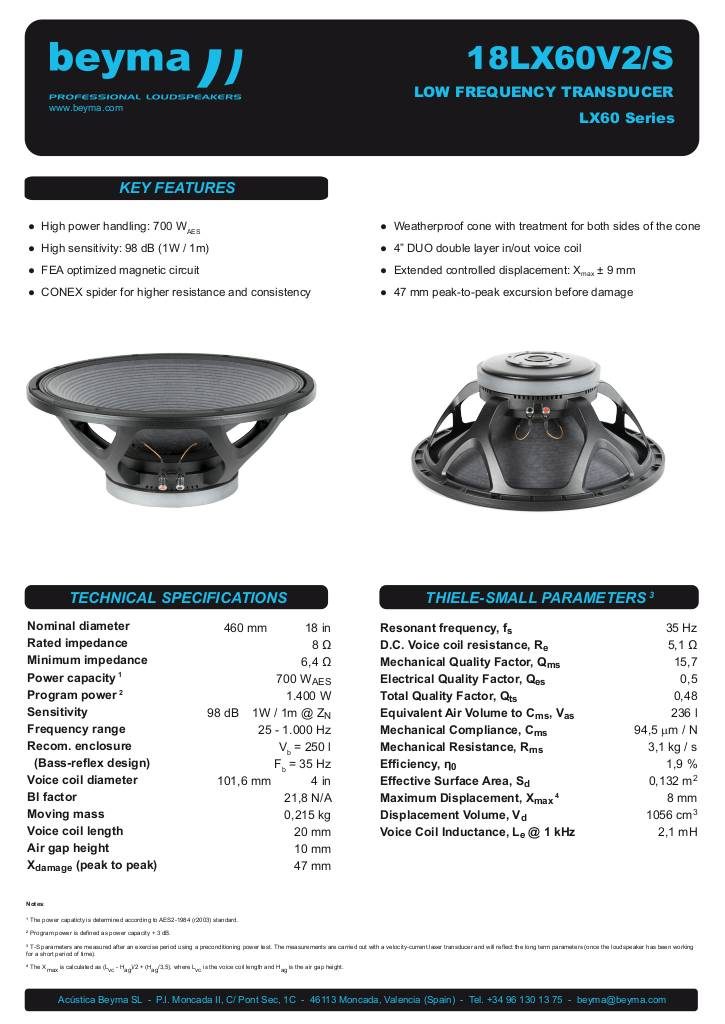

n-20221228114433-beyma-speakers-data-sheet-low-mid-frequency-18lx60v2s.pdf

Beyma 18LX60V2/S technical specifications

Nominal impedance 8 Ohm
Power handling capacity 700 W AES
Nominal diameter 460mm 18 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 6.4ohm
Frequency range 25-1000Hz
Program power 1400 W
Recommended enclosure volume 250 l
Voice coil diameter 101.6 millimeters 4 inches
BL factor 21.8 N/D
Moving mass 0.215 kg
Winding length 20 mm
Air gap height 10mm
Xdamage pp 47mm

Thiele & Small Parameters
Fs 35Hz
Rif 5.1 Ohm
Qms 15.7
Qes 0.5
Qt 0.48
Vas 236 liters
cms 94.5 µm/n
Rms 3.1 kg/sec
Efficacy % 1.9
SD 0.132 mq
Xmax 8mm
Vd 1056 cm³
Le @1 kHz 2.1 mH

Depth 193 millimeters 7.6 inches
Net weight 11.2 kilograms 25.8 pounds
Total weight 12.5 kilograms 27.56 pounds

€ 358,00 Price incl. VAT
