18LEX1200ND 18" Subwoofer 8ohm 98dB 1200W Neodymium

Beyma
Your price:
€ 342,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

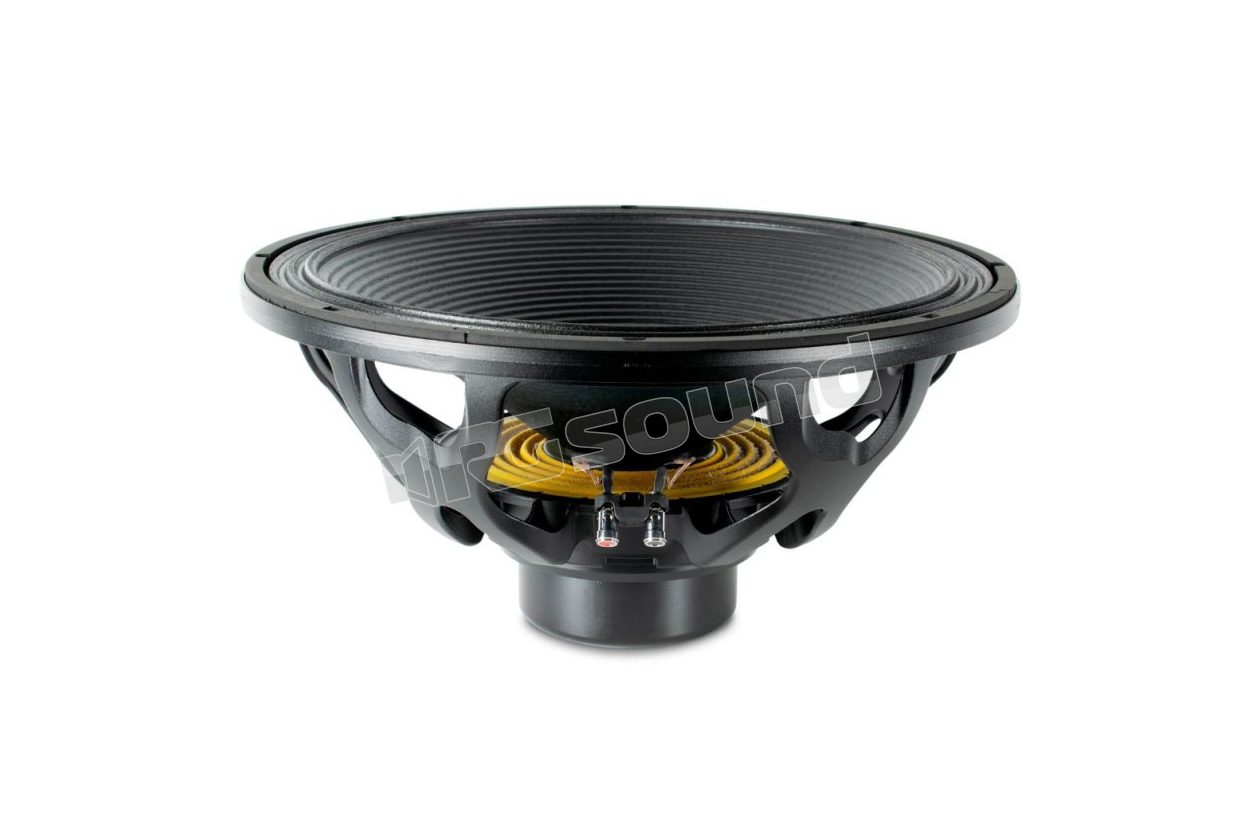

Beyma 18LEX1200ND Subwoofer 18" 8ohm 98dB 1200W Neodymium

18" high power low distortion subwoofer

18LEX1200ND Features

  • Exclusive cooling system with Malt Cross® technology
  • Low losses for power compression
  • High sensitivity: 98 dB (1 W / 1 m)
  • Neodymium magnetic circuit optimized with FEA
  • Extremely low air noise
  • Optimized linear behavior
  • Weather-resistant cone with treatment on both sides
  • Double silicone spider
  • DUO 4" double-layer copper voice coil (input/output)
  • Aluminum demodulation ring
  • Extended controlled displacement: Xmax ± 11 mm
  • Peak-to-peak excursion of 48 mm before damage
  • Optimized for direct radiation applications and bandpass subwoofers

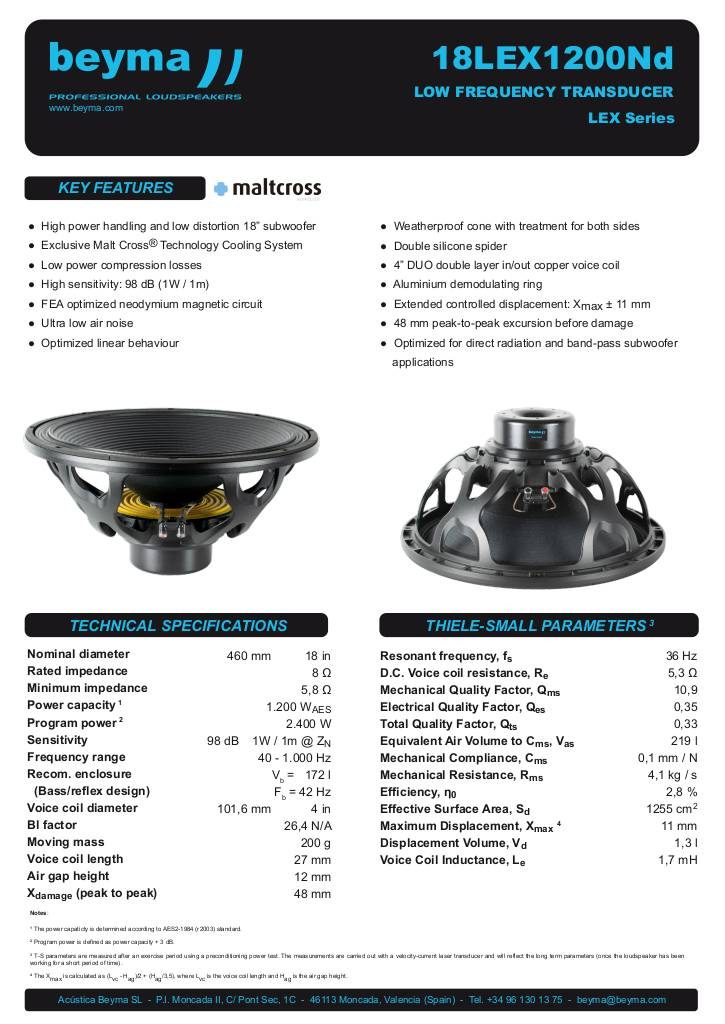

Scheda tecnica

n-20260623113825-18lex1200nd.pdf

Beyma 18LEX1200ND Technical Specifications

  • Rated power 1200 W AES
  • Nominal diameter 460 mm 18 in
  • Nominal impedance 8 Ohm
  • Minimum impedance 5.8 Ohm
  • Program power 2400 W
  • Sensitivity 98 dB 1 W at 1 m at ZN
  • Frequency range 40-1000 Hz
  • Recommended cabinet volume 172 l
  • Voice coil diameter 101.6 mm
  • BL factor 26.4 N/A
  • Moving mass 200 g
  • Winding length 27 mm
  • Air gap height 12 mm
  • Xdamage pp 48 mm
€ 342,00 Price incl. VAT
