18LEX1200FE 18" Subwoofer 8ohm 97dB 1200W Ferrite

Beyma
Your price:
€ 296,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

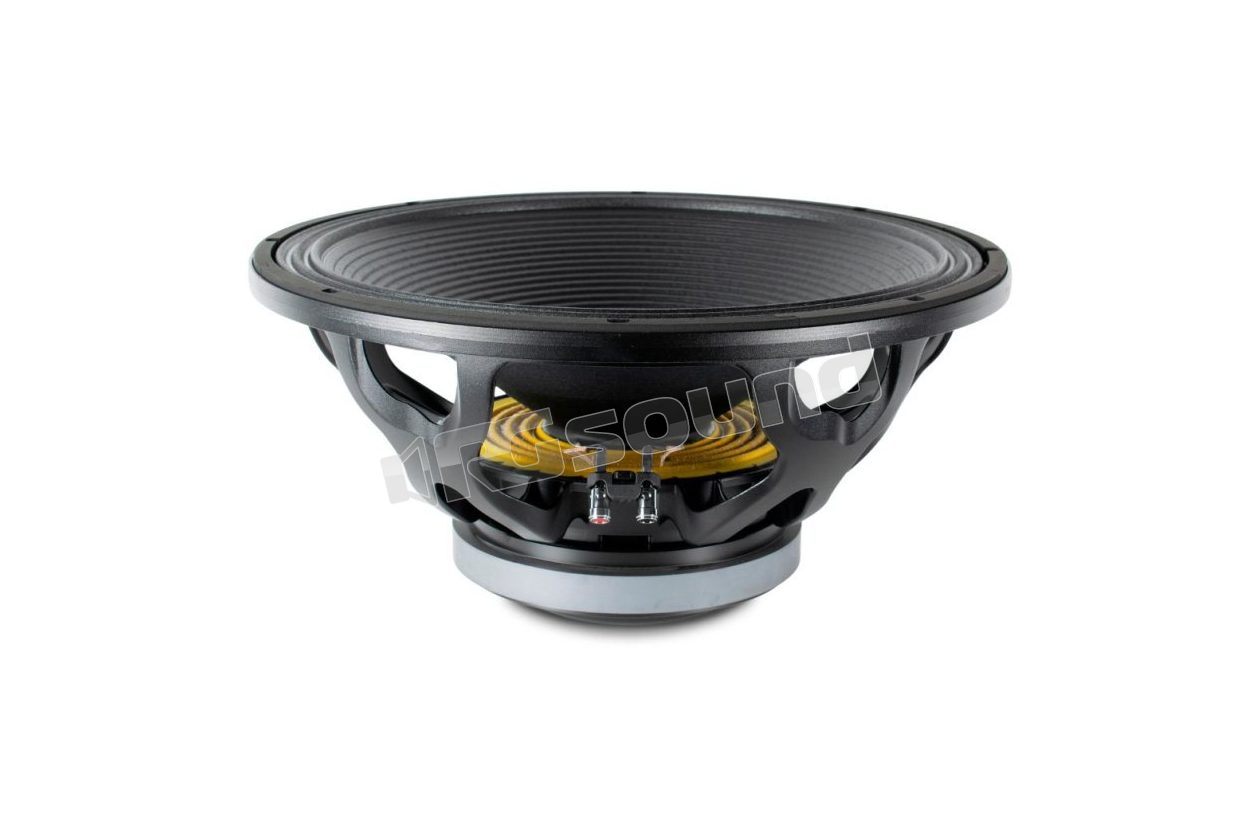

Beyma 18LEX1200FE 18" Subwoofer 8ohm 97dB 1200W Ferrite

18" high power low distortion subwoofer

18LEX1200FE Features

  • Exclusive cooling system with Malt Cross® technology
  • Low power compression losses
  • High sensitivity: 97 dB (1 W / 1 m)
  • Ceramic magnetic circuit optimized with FEA
  • Extremely low air noise
  • Optimized linear behavior
  • Weather-resistant cone with treatment on both sides
  • Dual silicone spider
  • 4" DUO dual-layer copper voice coil (in/out)
  • Aluminum demodulation ring
  • Extended controlled excursion: Xmax ± 11 mm
  • Peak-to-peak travel of 48 mm before damage
  • Optimized for direct radiating and bandpass subwoofer applications

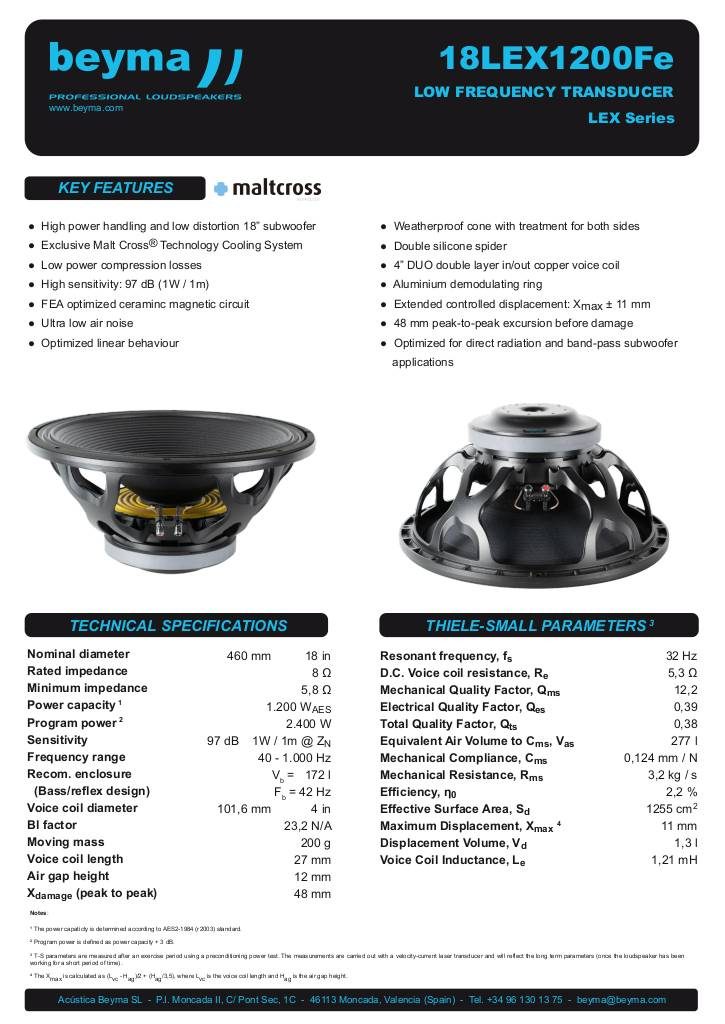

Scheda tecnica

n-20260623114120-18lex1200fe.pdf

Beyma 18LEX1200FE Technical Specifications

  • Rated power 1200 W AES
  • Nominal diameter 460 mm
  • Nominal impedance 8 Ohm
  • Minimum impedance 5.8 Ohm
  • Program power 2400 W
  • Sensitivity 97 dB 1 W at 1 m at ZN
  • Frequency range 40-1000 Hz
  • Recommended box volume 172 l
  • Voice coil diameter 101.6 mm
  • BL factor 23.2 N/A
  • Moving mass 200 g
  • Winding length 27 mm
  • Air gap height 12 mm
  • Xdamage pp 48 mm
€ 296,00 Price incl. VAT
