18LEX1000Nd

Beyma
Your price:
€ 403,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
35-1000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
7,3 Kg
Installation Depth
233 mm
Voice Coil Diameter
89 mm

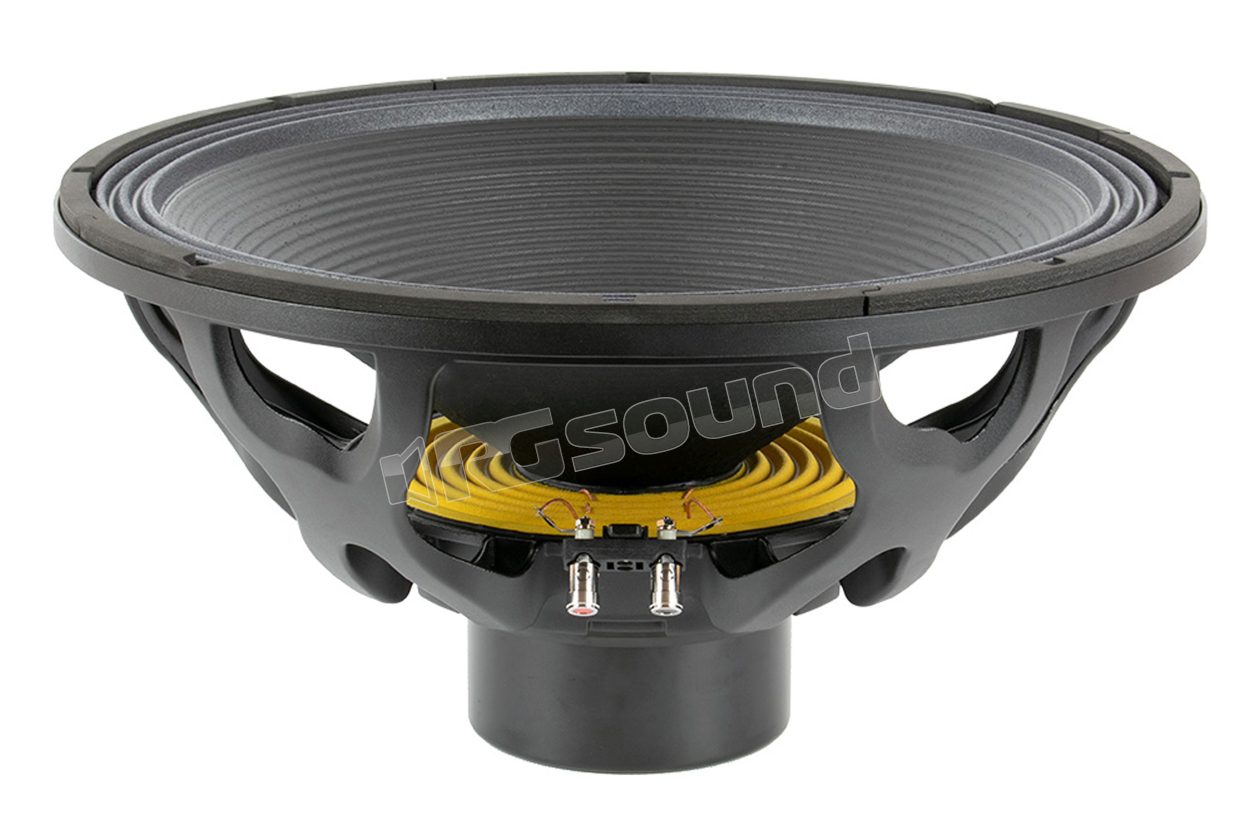

Beyma 18LEX1000Nd 18" subwoofer, waterproof cone, exclusive Malt Cross cooling system.

Nominal impedance 8 Ohm
Power handling capacity 1000 W AES
Nominal diameter 460 mm 18 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 6.5 ohm
Frequency range 35-1000 Hz
Program power 2000 W.
Recommended enclosure volume 200 l
Voice coil diameter 88.9 mm 3.5 inches
BL factor 22 N / A
Moving mass 0.185 kg
Winding length 25 mm
Air gap height 12 mm
Xdamage pp 65 mm

Thiele & Small Parameters
Fs 34 Hz
Ri 5.1 ohm
qms 5.6
QES 0.42
Qts 0.39
Vas 260 l
Cms 117 µm / N
Rms 7.1 kg / s
Efficiency% 2.4
Sd 0.1255 m²
Xmax 10 mm
vd 1255 cm³
Le @ 1 kHz 1.6 mH

Construction Details
Depth 233 mm 9.2 inches
Net weight 7.3 kg 16.1 pounds
Total weight 8.6 kg 18.9 pounds
Neodymium magnet

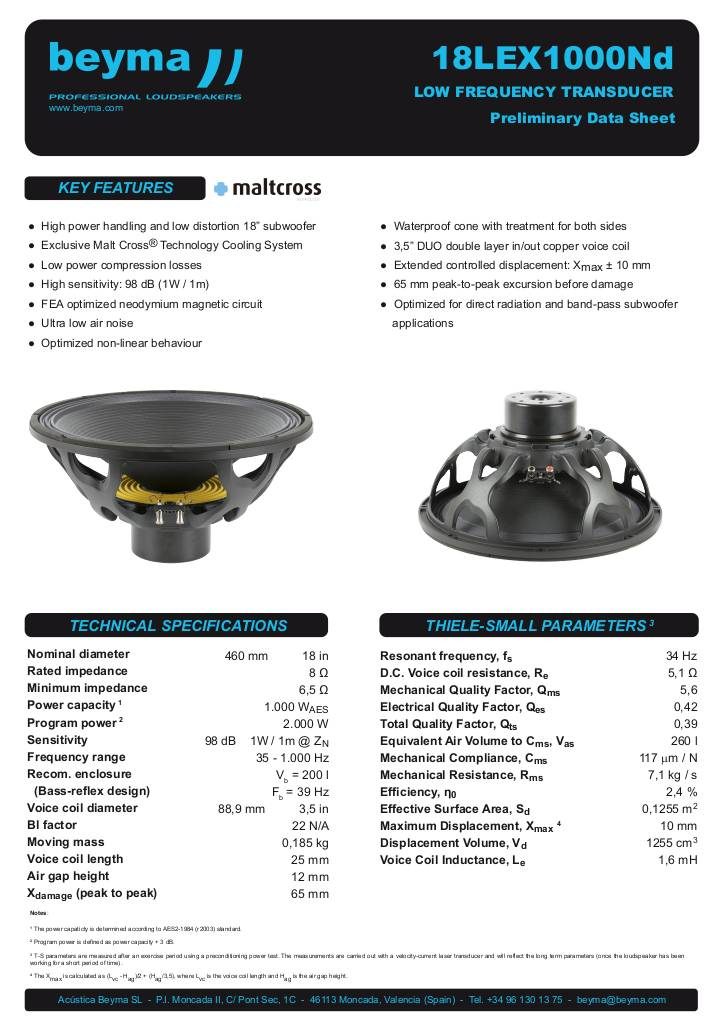

Scheda tecnica

n-20200717175920-beyma-speakers-data-sheet-low-mid-frequency-18lex1000nd.pdf
€ 403,00 Price incl. VAT
