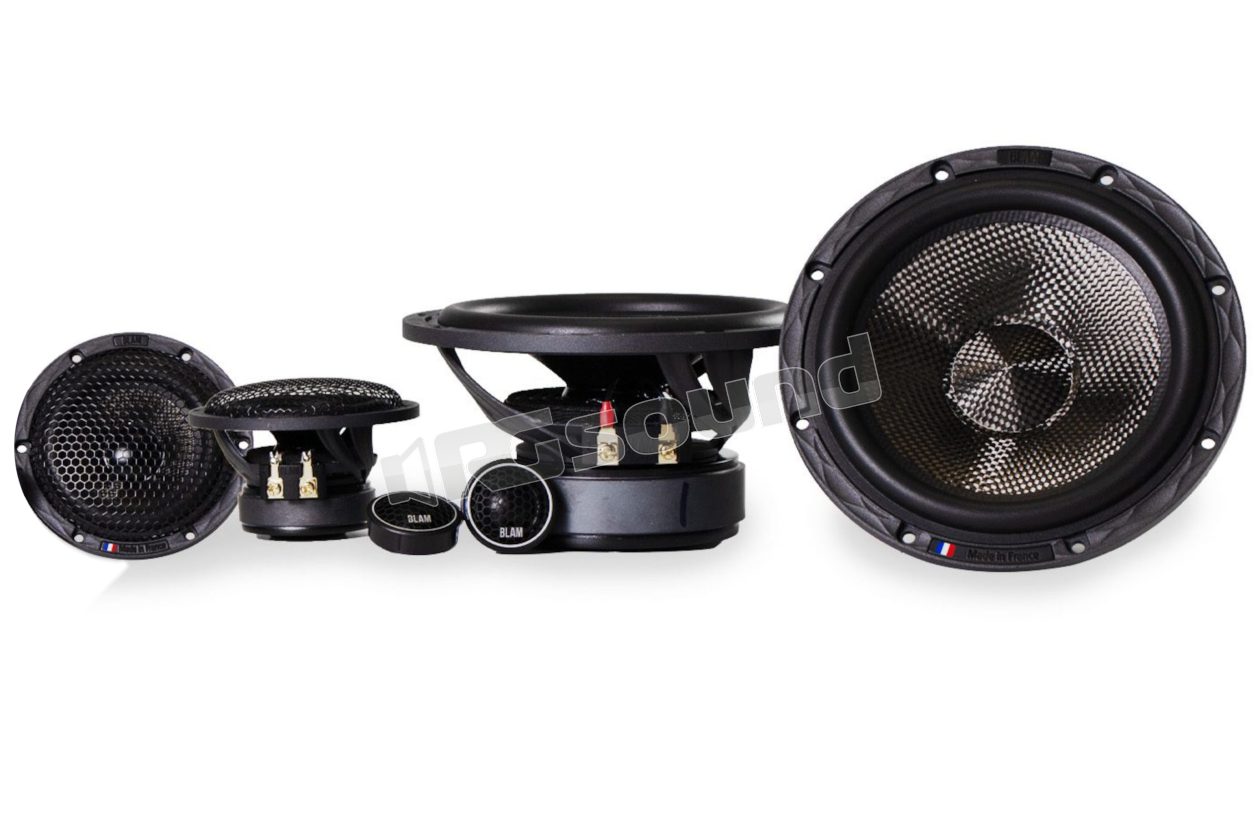

165 S300 Active 165 mm 3-way system without crossover

BLAM
Your price:
€ 1270,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
87 millimetri
Tweeter Size
20 millimetri
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
50 - 5000 Hertz
Impedance
2 Ohm
Woofer Material
Fibra di carbonio

BLAM 165 S300 Active 3-way 165 mm active system - without crossover


The 165 S300 Kit is a three-way audio system that offers precise and powerful sound reproduction. It is equipped with two 6.5" (165 mm) woofers with a maximum power of 250 W, a frequency response from 50 Hz to 5 kHz and an impedance of 2 Ω, with an ultra-rigid carbon fiber cone and an oversized magnetic motor.

Two S 3.55 midrange drivers provide a wide bandwidth from 200 Hz to 27 kHz with an impedance of 3 Ω, incorporating an aluminum phase plug and gold-plated terminals for optimal signal transmission. The highs are handled by two 20 mm textile dome tweeters T20HR, which offer a frequency response from 1.5 kHz to 40 kHz with an impedance of 4 Ω.

BLAM 165 S300 technical features

2 Woofer 6.300

  • Woofer 6-1/2'' (165 mm)
  • Maximum power 250 W / Nominal power 125 W
  • Frequency response 50 Hz - 5 kHz
  • Impedance 2 Ω
  • Die-cast aluminum basket
  • Ultra-rigid carbon fiber cone
  • NBR surround
  • Long-lasting "Conex" spider
  • 38 mm (1.5″) voice coil on fiberglass support
  • Oversized 100 mm x 20 mm magnetic motor
  • Gold-plated terminal strip

Midrange S 3.55

  • Extended frequency, usable in full range
  • Frequency response 200 Hz - 27 kHz
  • Impedance 3 Ω
  • Die-cast aluminum basket
  • Ultra-rigid carbon fiber cone
  • NBR surround
  • Long-lasting "conex" spider
  • 20 mm voice coil, fiberglass support
  • Oversized 55 mm x 10 mm magnetic motor
  • Machined aluminum phase plug
  • Gold-plated terminal

Tweeter T20HR

  • 20 mm (3/4″) fabric dome diaphragm
  • Maximum power 100 W - Nominal power 15 W
  • Frequency response 1.5 Hz - 40 kHz
  • Impedance 4 Ω
€ 1270,00 Price incl. VAT
