165 S300 165 mm 3-way system with passive crossover

BLAM
Your price:
€ 1369,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
90 millimetri
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
50 - 5000 Hertz
Impedance
2 Ohm
Woofer Material
Fibra di carbonio

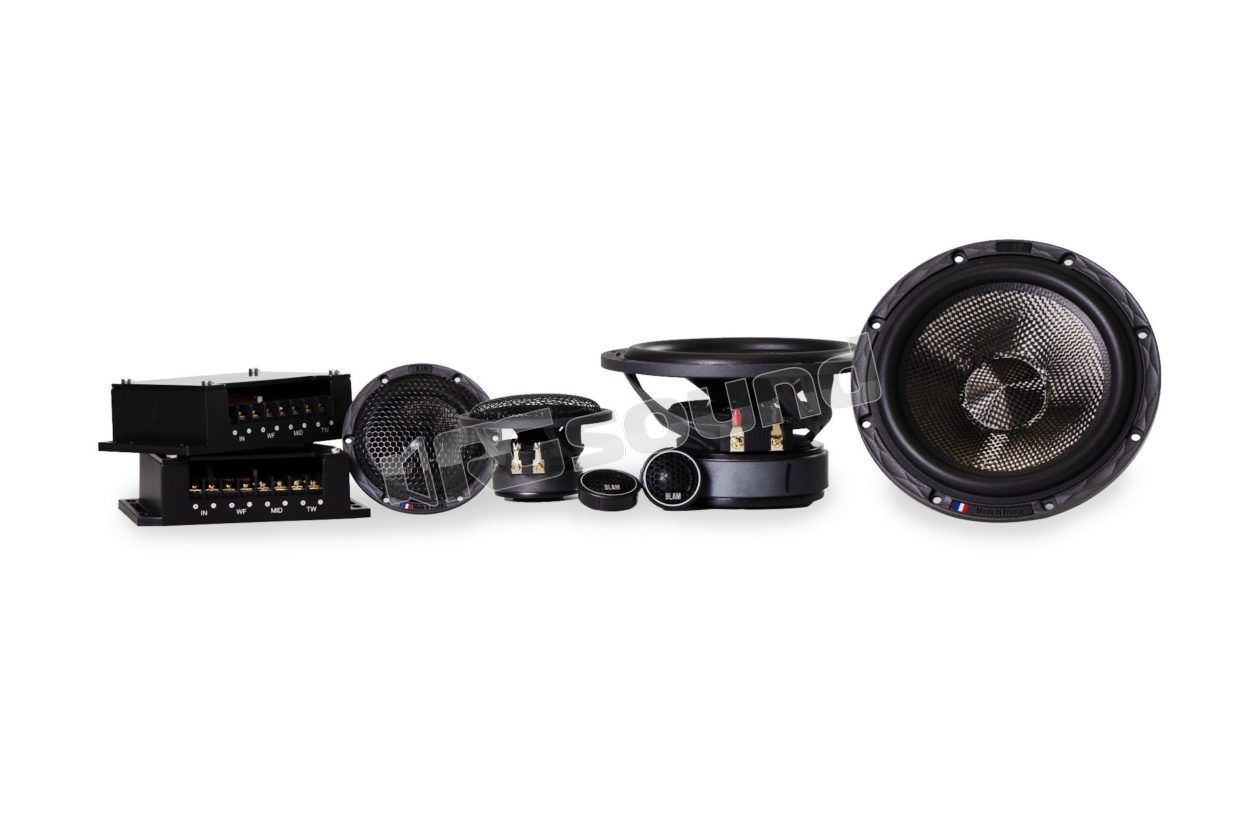

BLAM 165 S300 3-way system 165 mm with passive crossover


The 165 S300 Kit is a three-way audio system that offers precise and powerful sound reproduction. It is equipped with two 6.5" (165 mm) woofers with a maximum power of 250 W, a frequency response from 50 Hz to 5 kHz and an impedance of 2 Ω, with an ultra-rigid carbon fiber cone and an oversized magnetic motor.

Two S 3.55 midrange drivers provide a wide bandwidth from 200 Hz to 27 kHz with an impedance of 3 Ω, incorporating an aluminum phase plug and gold-plated terminals for optimal signal transmission. The highs are handled by two 20 mm textile dome tweeters T20HR, which offer a frequency response from 1.5 kHz to 40 kHz with an impedance of 4 Ω. The set is completed by BFX03 filters for optimal signal management, ensuring an immersive and detailed audio experience.

BLAM 165 S300 Technical specifications

Woofer 6.300

  • Maximum power 250 W
  • Nominal power 125 W
  • Frequency response 50 Hz - 5 kHz
  • Impedance 2 Ω
  • Die-cast aluminum basket
  • Ultra-rigid carbon fiber cone
  • NBR surround
  • Long-lasting "Conex" spider
  • 38 mm (1.5") voice coil on fiberglass support
  • Oversized magnetic motor 100mm x 20mm
  • Gold-plated terminals

Midrange S 3.55

  • Frequency response 200 Hz - 27 KHz
  • Impedance 3 Ω
  • Die-cast aluminum basket
  • Ultra-rigid carbon fiber cone
  • NBR surround
  • Long-lasting "conex" spider
  • 20 mm voice coil, fiberglass support
  • Oversized magnetic motor 55mm x 10mm
  • Machined aluminum phase plug - Gold-plated terminal.

Tweeter T20HR

  • 20 mm (3/4″) textile dome diaphragm
  • Maximum power 100W
  • Nominal power 15 W
  • Frequency response 1.5 Hz - 40 KHz
  • Impedance 4 Ω
  • BFX03 filters
€ 1369,00 Price incl. VAT
