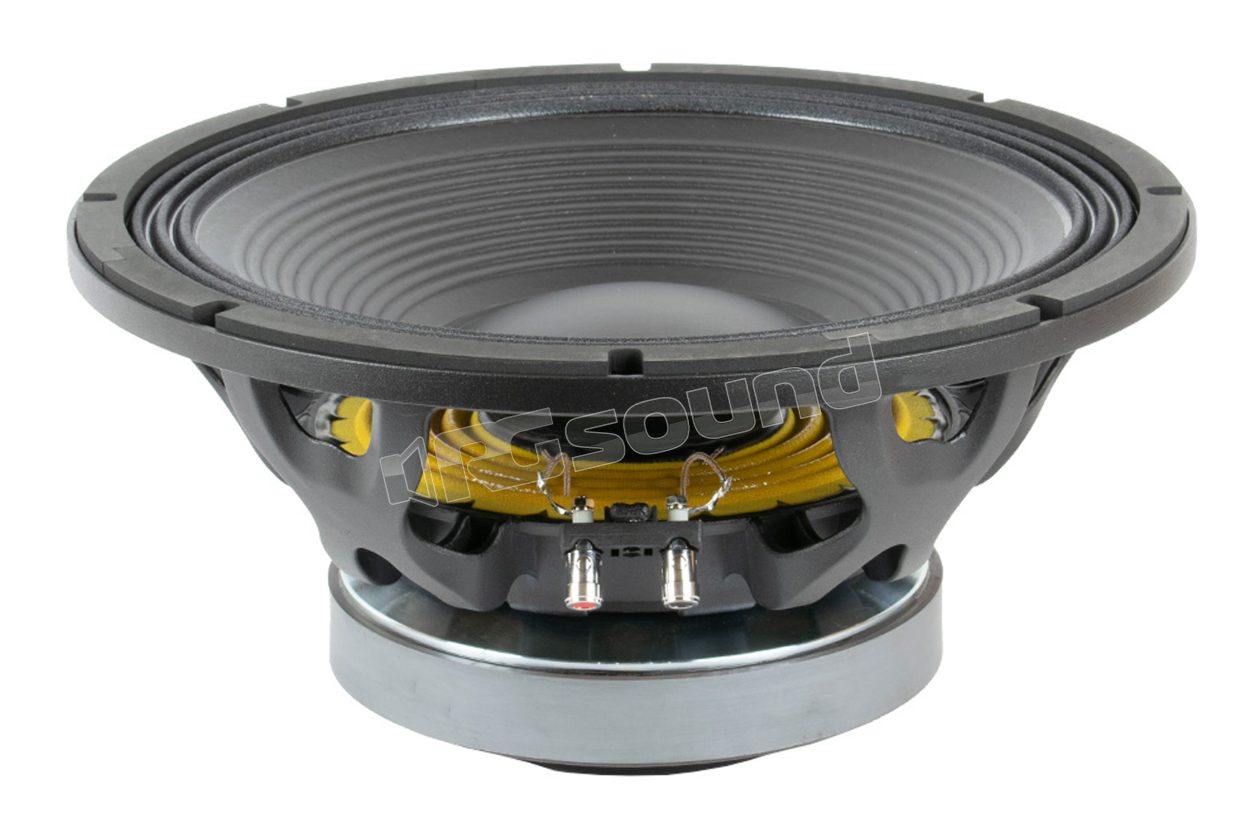

15QLEX1600Fe 38cm high-power subwoofer, 1600/3200 Watt, with low distortion

Beyma
Your price:
€ 452,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
3200 Watt
RMS Power
1600 Watt
Frequency Response
35-1000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
14 Kg
Installation Depth
191 mm
Voice Coil Diameter
101,6 mm

Beyma 15QLEX1600Fe 38cm (15") subwoofer with high power and low distortion, for high-performance applications.

Nominal impedance 8 Ohm
Power handling 1600 W AES
Nominal diameter 380 mm 15 inches
Sensitivity 96 dB 1 W / 1 m @ ZN
Minimum impedance 6.3 ohm
Frequency range 35-1000 Hz
Program power 3200 Watt
Recommended enclosure volume 80 l
Voice coil diameter 101.6 mm 4 inches
BL factor 35.6 N / A
Moving mass 0.254 kg
Winding length 32 mm
Air gap height 15 mm
Xdamage pp 60 mm

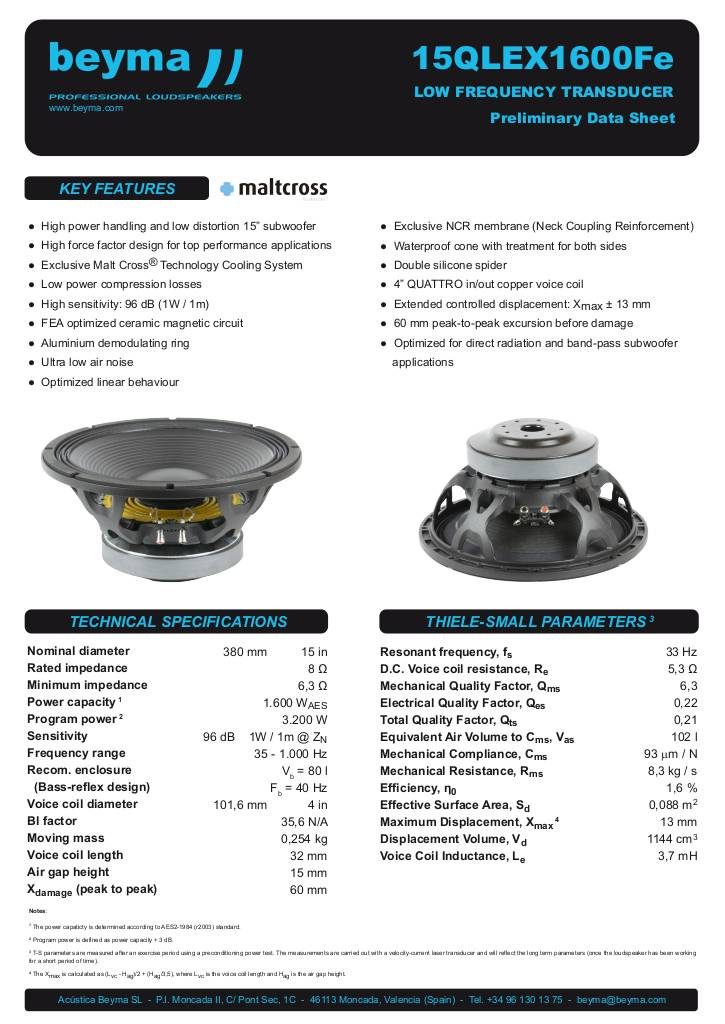

Scheda tecnica

n-20200717144736-beyma-speakers-data-sheet-low-mid-frequency-15qlex1600fe.pdf

Beyma 15QLEX1600Fe technical specifications

Thiele & Small Parameters
Fs 33 Hz
Ri 5.3 ohm
qms 6.3
QES 0.22
Qts 0.21
Vas 102 l
Cms 93 µm / N
Rms 8.3 kg / s
Efficiency% 1.6
Sd 0.088 m²
Xmax 13 mm
vd 1144 cm³
Le @ 1 kHz 3.7 mH

Construction details
Depth 191 mm 7.5 inches
Net weight 13.9 kg 30.6 pounds
Total weight 14.9 kg 32.8 pounds
Ferrite magnet

€ 452,00 Price incl. VAT
