Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
45 - 20.000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
13 Kg
Installation Depth
170 mm
Voice Coil Diameter
101 mm

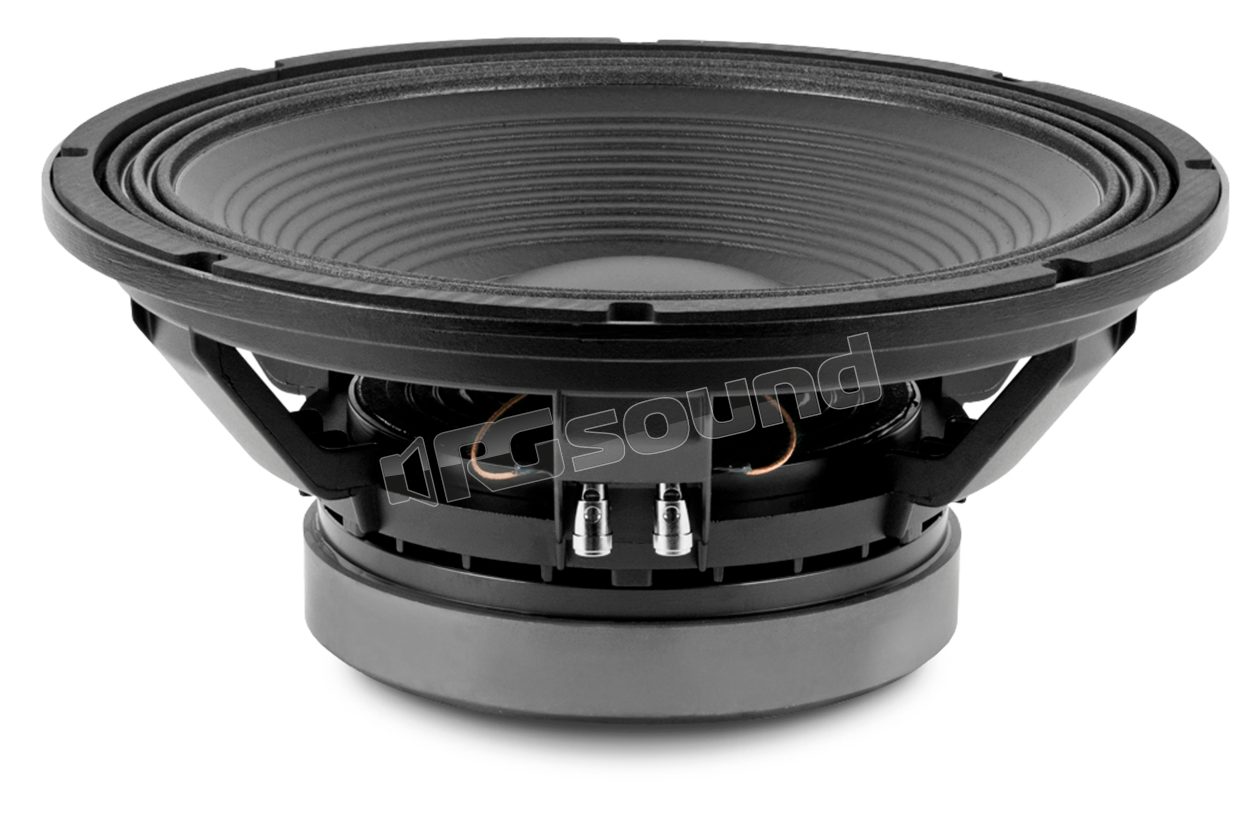

Beyma 15P1000Fe/V2 subwoofer P1000 Series with high power handling 2,000 Watts.

4" copper voice coil
High sensitivity: 98 dB (1W / 1m)
FEA optimized magnetic circuit
Low power compression losses
Weather resistant cone treatment on both sides of the cone
CONEX spider
Peak-to-peak excursion of 52 mm before damage
High excursion capability: X max ± 8 mm
Low frequency extension and high control

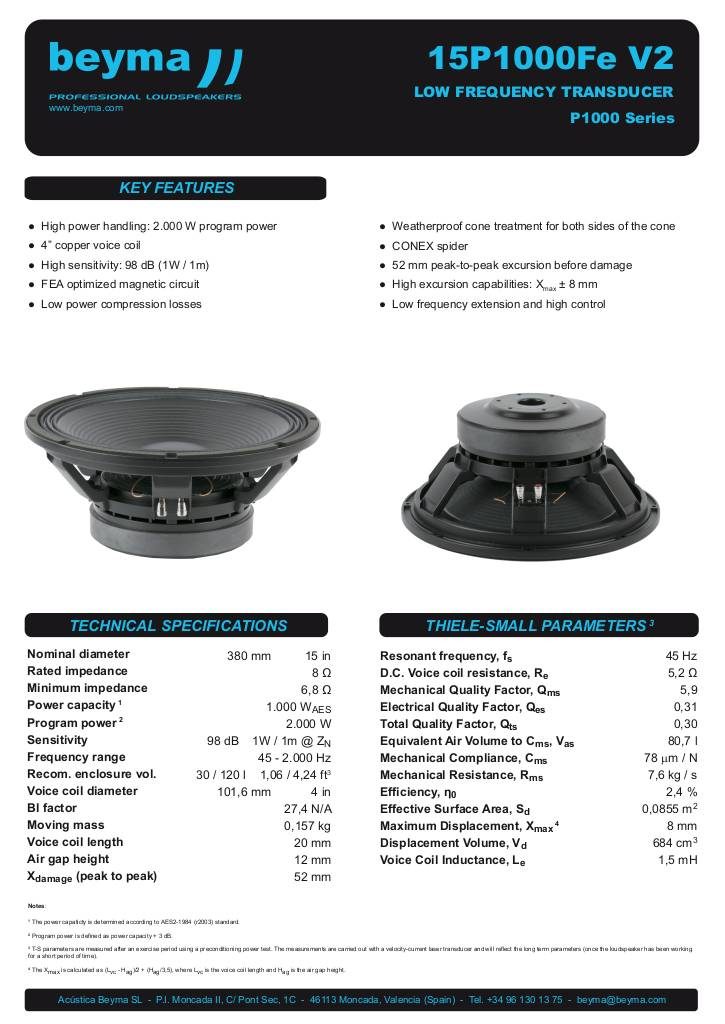

Scheda tecnica

n-20221228151237-beyma-speakers-data-sheet-low-mid-frequency-15p1000fev2.pdf

Beyma 15P1000Fe/V2 technical specifications

Nominal impedance 8 Ohm
Power handling capacity 1000 W AES
Nominal diameter 380mm 15 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 6.8ohm
Frequency range 45-2000 hz
Program power 2000 W
Recommended enclosure volume 30 / 120 l 1.06 / 4.24 ft³
Voice coil diameter 101.6 millimeters 4 inches
BL factor 27.4 N/A
Moving mass 0.157 kg
Winding length 20 mm
Gap height 12mm
Xdamage pp 52 mm

Fs 45Hz
Rif 5.2 Ohm
Qms 5.86
Qes 0.31
Qt 0.3
Vas 80.7 l
Cms 78 µm/n
Rms 7.6 kg/sec
Efficiency % 2.4
SD 0.0855 mq
Xmax 8mm
Vd 684 cm³
Le @1 kHz 1.5 mH

Depth 170mm 6.70 inches
Net weight 13.1 kg 28.9 pounds
Total weight 14.1 kg 15.6 pounds
