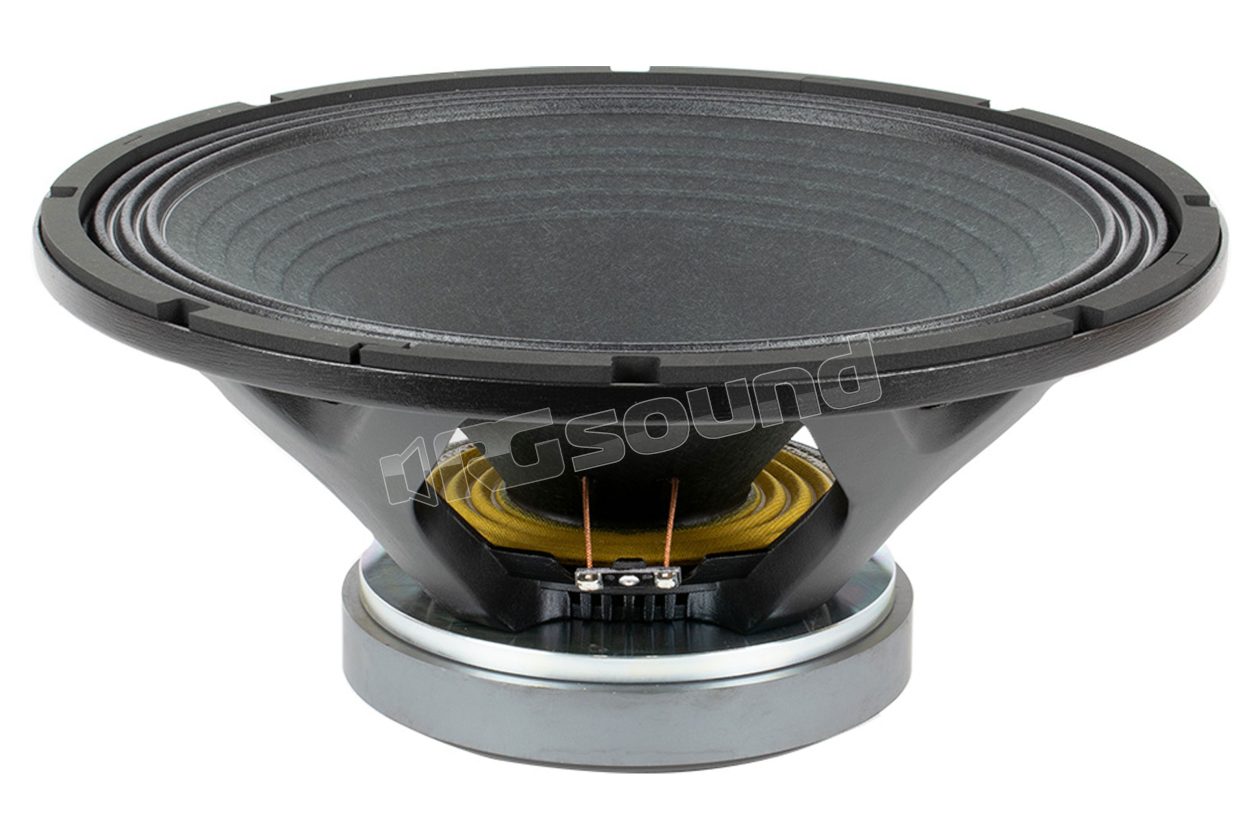

15MCB700 high-performance 38cm woofer

Beyma
Your price:
€ 270,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
45-4000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
8 Kg
Installation Depth
177 mm

Beyma 15MCB700 woofer 38cm MC Series, maximum power 1,400 Watts, exclusive cooling system with Malt Cross technology. Optimized for bass and midrange reproduction in high-performance audio systems.

Nominal impedance 8 Ohm
Power handling 700 W AES
Nominal diameter 380 mm 15 inches
Sensitivity 99 dB 1 W / 1 m @ ZN
Minimum impedance 7 Ohm
Frequency range 45-4000 Hz
Program power 1400 Watts
Recommended enclosure volume 60 l
Voice coil diameter 76.2 mm 3 inches
BL factor 20 N / A
Mobile mass 0.096
Winding length 18 mm
Gap height 9.5 mm
Xdamage pp 45 mm

Thiele & Small Parameters
Fs 44 Hz
Ri 5.3 ohm
qms 5.4
QES 0.36
Qts 0.34
Vas 148 l
Cms 135 µm / N
Rms 4.9 kg / s
Efficiency% 3.4
Sd 0.088 m²
Xmax 7 mm
vd 385 cm³
Le @ 1 kHz 0.9 mH

Construction Details
Depth 177 mm 7 inches
Net weight 8 kg 17.6 pounds
Total weight 9.0 kg 19.8 pounds
Ferrite magnet

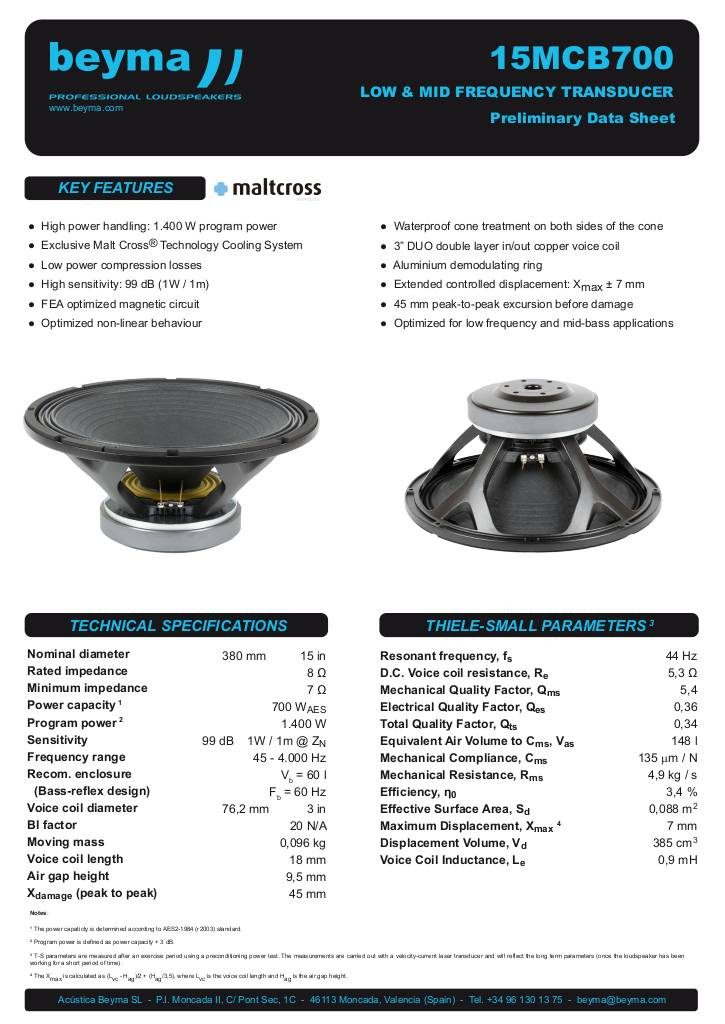

Scheda tecnica

n-20200717124631-beyma-speakers-data-sheet-low-mid-frequency-15mcb700.pdf
€ 270,00 Price incl. VAT
