15M/8631G00 pair of midranges with cut-out

Scan Speak
Your price:
€ 389,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
MAX Power
110 Watt
RMS Power
50 Watt
Frequency Response
50 - 7000 Hertz
Sensitivity
87 dB
Impedance
8 Ohm
Weight
1,7 Kg
Installation Depth
71 mm
Voice Coil Diameter
38 mm

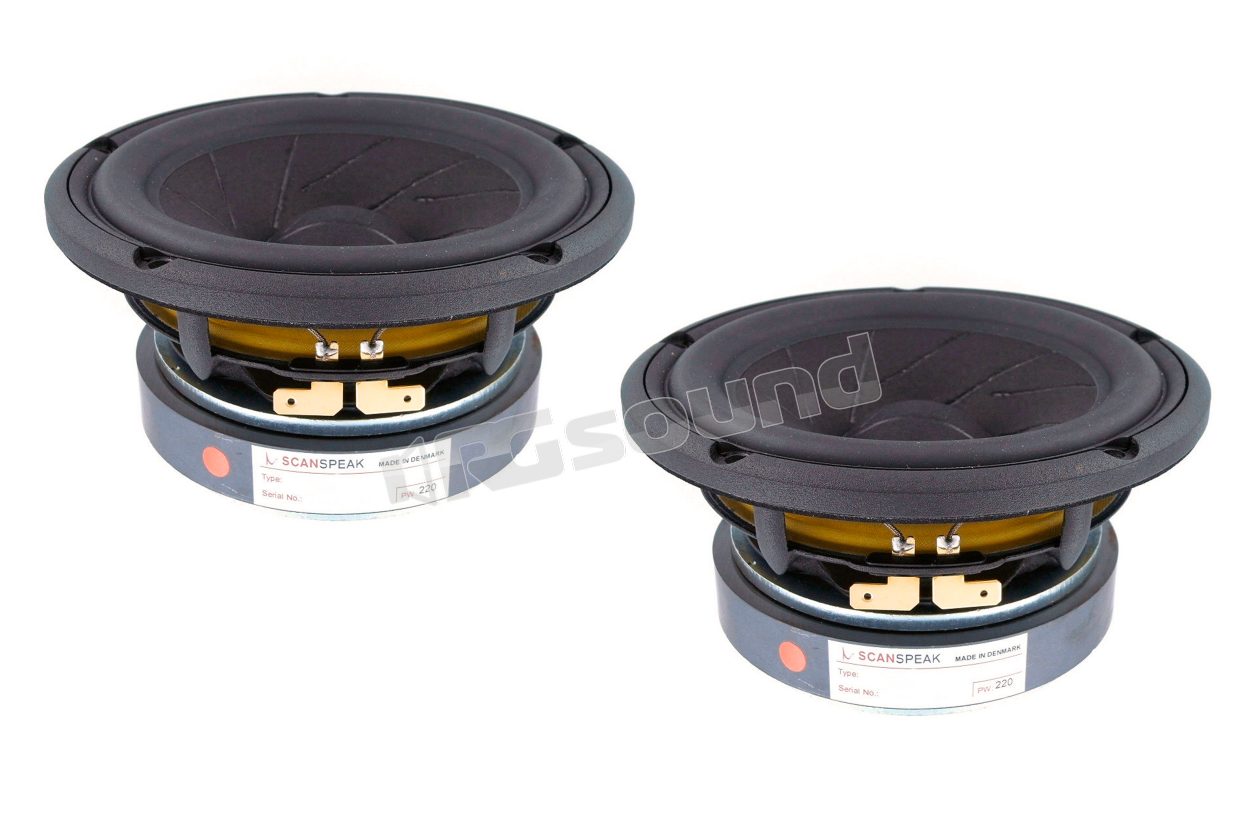

Scan Speak 15M/8631G00 Revelator pair of 15cm midrange, 8 Ohm, carved paper cone, large ferrite magnet

This Revelator midrange is equipped with the carved cone, the engravings are filled with damping glue, which drastically reduces the diaphragm breakup modes. In combination with the Scan-Speak low-loss linear suspension and the patented symmetrical SD-1 Drive, it represents a breakthrough in midrange clarity and overall frequency response characteristics.

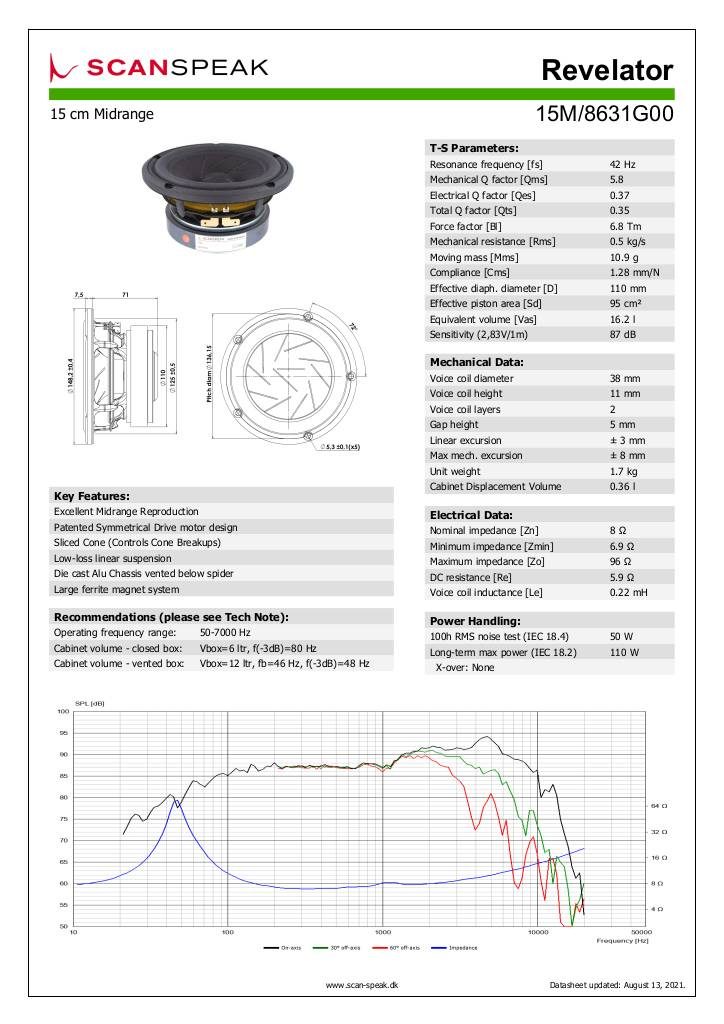

Scheda tecnica

n-20240229124858-15m-8631g00.pdf

Scan Speak 15M/8631G00 technical specifications

Patented symmetrical pull motor system
Low-loss linear suspension and low damping
Sliced cone technology
Ventilated cast aluminum frame under the spider
Large ferrite magnet system
Size: 15 cm
Fs: 42 Hz
Re: 5.9 Ω
Qt: 0.35
Sensitivity: 87 dB
VAS: 16.2 liters
Sd: 95 cm²
Bl: 6.8 Tm

€ 389,00 Price incl. VAT
