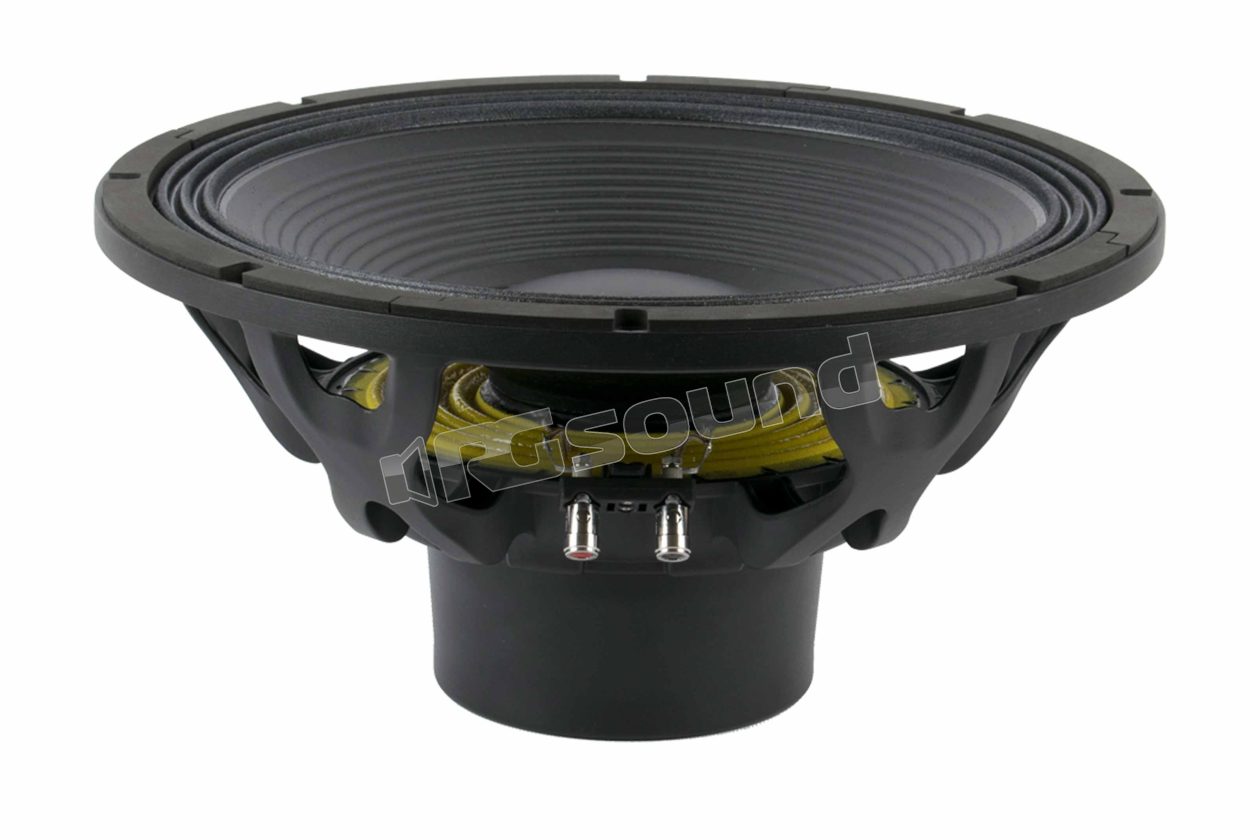

15LEX1600Nd 38cm subwoofer

Beyma
Your price:
€ 506,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
3.200 Watt
RMS Power
1.600 Watt
Frequency Response
40 - 1.500 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
8,8 Kg
Installation Depth
192 mm
Voice Coil Diameter
101 mm

Beyma 15LEX1600Nd subwoofer 38 cm with 8 Ohm impedance and 1600 W nominal power

Nominal impedance 8 Ohm

Power capacity 1600 W AES

Nominal diameter 380 mm 15 in

Sensitivity 96 dB 1 W/1 m @ ZN

Minimum impedance 7.1 ohm

Frequency range 40-1500 Hz

Program power 3200 W

Recommended enclosure volume 90 l

Voice coil diameter 101.6 mm 4 in

Magnet Neodymium

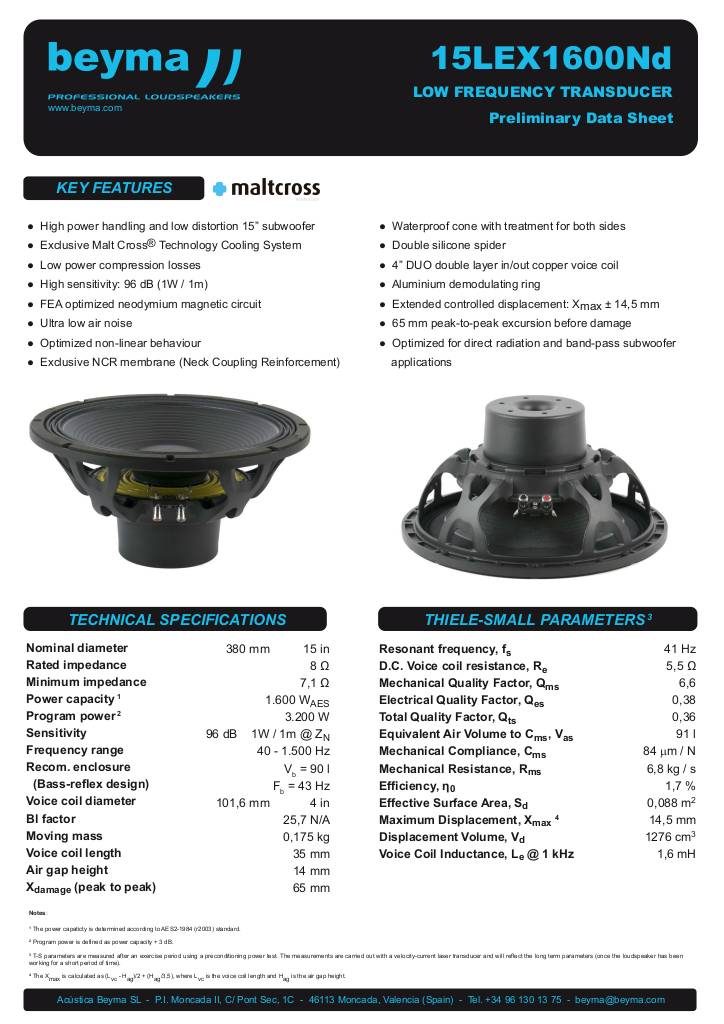

Scheda tecnica

n-20190402115741-15lex1600nd.pdf

Beyma 15LEX1600Nd technical specifications

BL factor 25.7 N/A

Moving mass 0.175 kg

Winding length 35 mm

Air gap height 14 mm

Xdamage pp 65 mm

Fs 41 Hz

Re 5.5 ohm

Qms 6.6

Qes 0.38

Qts 0.36

Vas 91 l

Cms 84 µm / N

Rms 6.8 kg/s

Efficiency % 1.7

Sd 0.088 m²

Xmax 14.5 mm

Vd 1276 cm³

Le @1 kHz 1.6 mH

Depth 192 mm 7.6 in

Net weight 8.8 kg 19.4 lb

Weight 9.8 kg 21.6 lb

€ 506,00 Price incl. VAT
