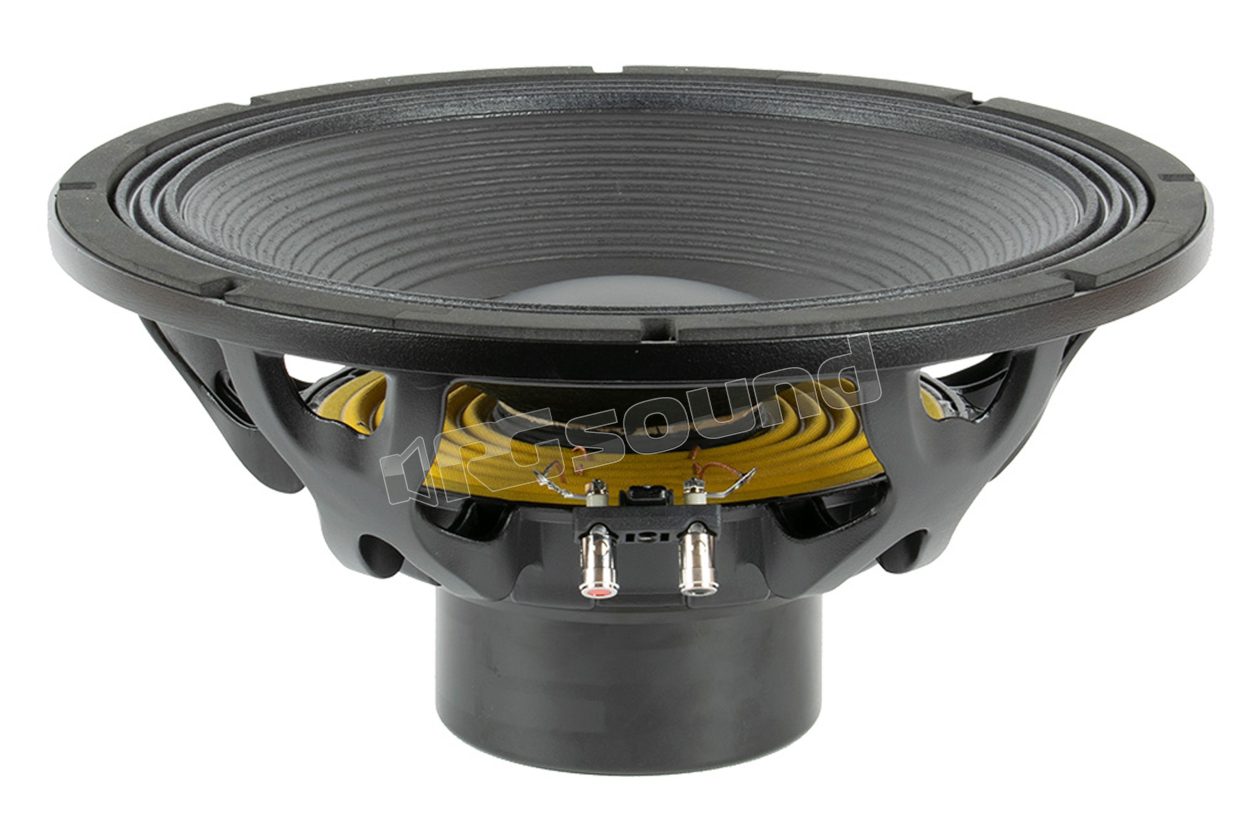

15LEX1000Nd 38cm subwoofer with 8 Ohm impedance

Beyma
Your price:
€ 357,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
40-1500 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
6,7 Kg
Installation Depth
189 mm
Voice Coil Diameter
89 mm

Beyma 15LEX1000Nd Subwoofer 38cm - impedance 8 Ohm - sensitivity 97 dB

38cm (15") subwoofer with a power of 1000/2000 Watt and very low distortion. High sensitivity 97 dB.

Construction details

  • Depth 189 mm 7.4 inches
  • Net weight 6.7 kg 14.8 pounds
  • Total weight 7.7 kg 17.0 pounds
  • Neodymium magnet

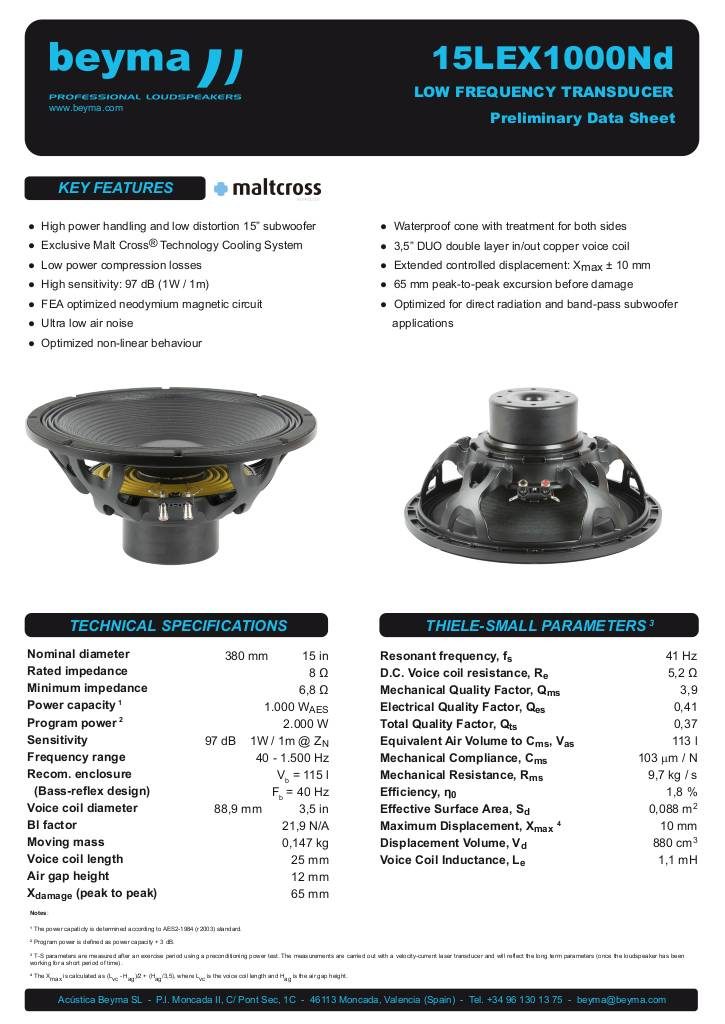

Scheda tecnica

n-20200717142800-beyma-speakers-data-sheet-low-mid-frequency-15lex1000nd.pdf

Beyma 15LEX1000Nd Technical specifications

  • Nominal impedance 8 Ohm
  • Power handling 1000 W AES
  • Nominal diameter 380 mm 15 inches
  • Sensitivity 97 dB 1 W @ 1 m @ ZN
  • Minimum impedance 6.8 ohm
  • Frequency range 40-1500 Hz
  • Program power 2000 Watt
  • Recommended enclosure volume 115 l
  • Voice coil diameter 88.9 mm 3.5 inches
  • BL factor 21.9 N / A
  • Moving mass 0.147 kg
  • Winding length 25 mm
  • Air gap height 12 mm
  • Xdamage pp 65 mm

Thiele & Small Parameters

  • Fs 41 Hz
  • Ri 5.2 ohm
  • qms 3.9
  • QES 0.41
  • Qts 0.37
  • Vas 113 l
  • Cms 103 µm / N
  • Rms 9.7 kg / s
  • Efficiency% 1.8
  • Sd 0.088 m²
  • Xmax 10 mm
  • vd 880 cm³
  • Le @ 1 kHz 1.1 mH
€ 357,00 Price incl. VAT
