15LEX1000Fe 38cm subwoofer, 8 Ohm impedance

Beyma
Your price:
€ 270,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
40-1000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
11 Kg
Installation Depth
182 mm
Voice Coil Diameter
89 mm

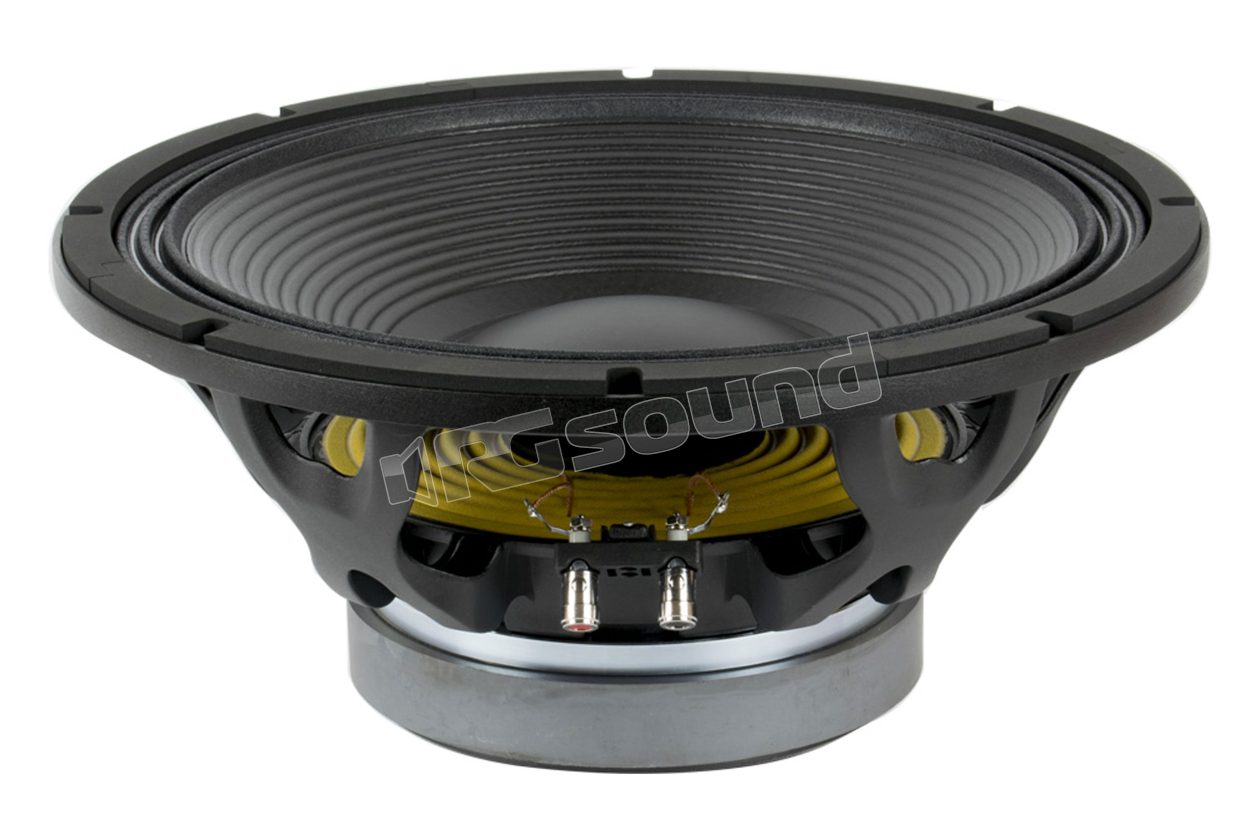

Beyma 15LEX1000Fe 38cm (15") high power and low distortion subwoofer

Exclusive cooling system with Malt Cross technology and waterproofing treatment on both sides of the cone.

Nominal impedance 8 Ohm
Power handling 1000 W AES
Nominal diameter 380 mm 15 inches
Sensitivity 97 dB 1 W @ 1 m @ ZN
Minimum impedance 7.4 ohm
Frequency range 40-1000 Hz
Program power 2000 Watt
Recommended enclosure volume 115 l
Voice coil diameter 88.9 mm 3.5 inches
BL factor 23.2 N / A
Moving mass 0.142 kg
Winding length 27 mm
Air gap height 12 mm
Xdamage pp 51 mm

Thiele & Small Parameters
Fs 41 Hz
Ri 5.4 ohm
qms 5.1
QES 0.37
Qts 0.34
Vas 116 l
Cms 106 µm / N
Rms 7.2 kg / s
Efficiency% 2.1
Sd 0.088 m²
Xmax 11 mm
vd 968 cm³
Le @ 1 kHz 1.7 mH

Construction Details
Depth 182 mm 7.2 inches
Net weight 11 kg 24.2 pounds
Total weight 12 kg 26.4 pounds
Ferrite magnet

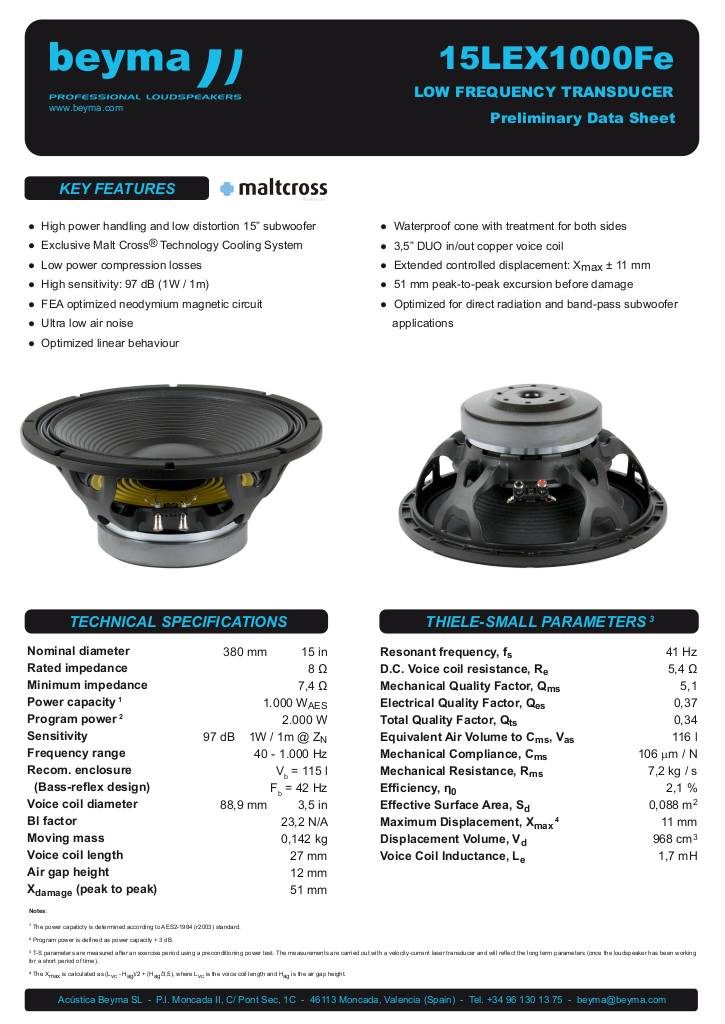

Scheda tecnica

n-20200717130104-beyma-speakers-data-sheet-low-mid-frequency-15lex1000fe.pdf
