15CMV2 15" Mid-Bass Speaker

Beyma
Your price:
€ 124,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
350 Watt
RMS Power
70 Watt
Frequency Response
50 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Voice Coil Diameter
76 mm

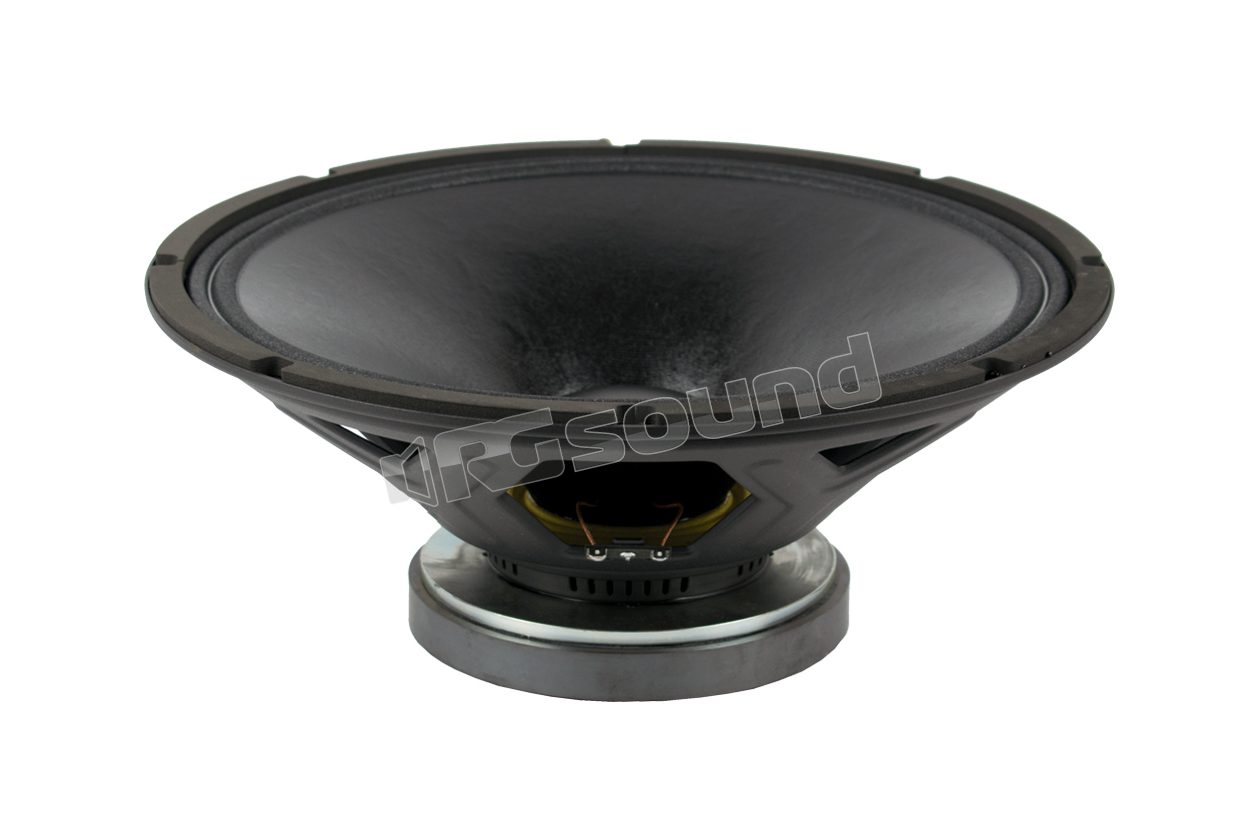

Beyma 15CMV2 15" Midwoofer

The new 15" midwoofer Beyma 15CMV2 handles 350 watts AES and 700 watts program power, strong midrange and intense bass, high values of 7.0 mm xmax and 35 mm peak xmax. Equipped with a dual-layer treated fabric surround and paper cone, it is designed to operate in small to medium-sized cabinets for electric bass, PA systems, etc.

15CMV2 Features

  • High power handling: 700 W program power
  • 3" voice coil with copper wire
  • High sensitivity: 97 dB (1W / 1m)
  • Extremely linear response and low distortion
  • Treated dual-roll fabric suspension
  • Optimized stamped steel frame
  • Ferrite magnet
  • Designed for bass and midwoofer applications in small vented cabinets in small vented cabinets

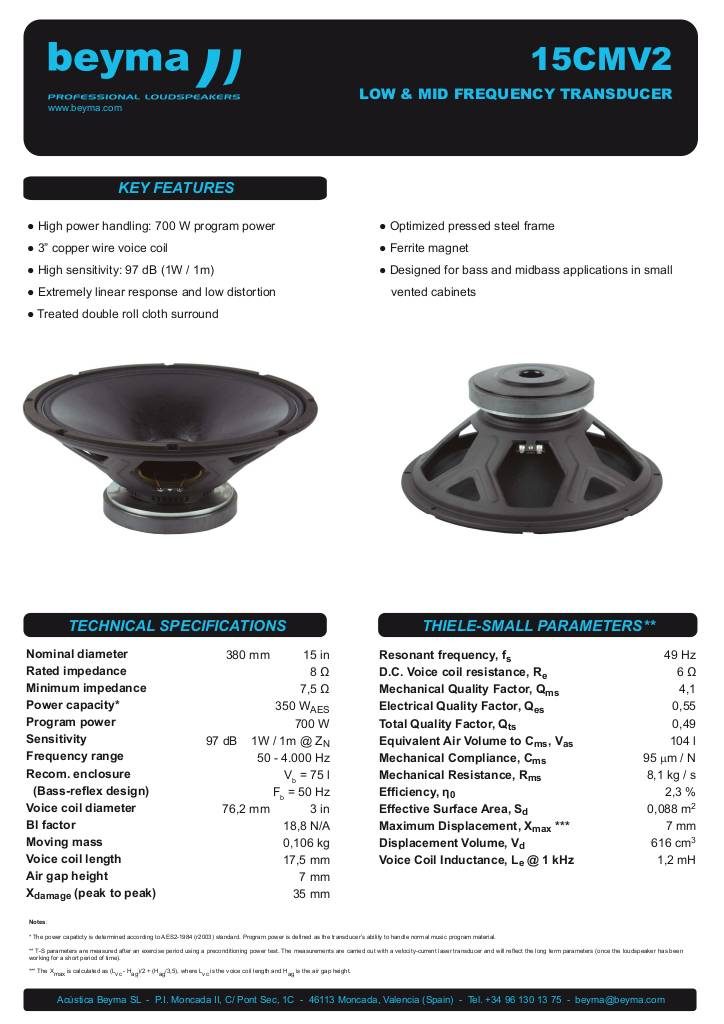

Scheda prodotto

n-20230724124441-beyma-speakers-data-sheet-low-mid-frequency-15cmv2.pdf

Beyma 15CMV2 Technical Specifications

  • Nominal diameter 380 mm 15 in
  • Nominal impedance 8 Ω
  • Minimum impedance 7.5 Ω
  • Power capacity 350 W
  • Program power 700 W
  • Sensitivity 97 dB 1W / 1m @ ZN
  • Frequency range 50 - 4,000 Hz
  • Voice coil diameter 76.2 mm 3 in
  • Bl factor 18.8 N/A
  • Moving mass 0.106 kg
  • Voice coil length 17.5 mm
  • Air gap height 7 mm
  • Damage X (peak to peak) 35 mm
  • Resonance frequency 49 Hz
  • Voice coil D.C. resistance 6 Ω
  • Mechanical quality factor 4.1
  • Electrical quality factor 0.55
  • Total quality factor 0.49
  • Equivalent air volume to Cms 104 l
  • Mechanical compliance 95 µm / N
  • Mechanical resistance 8.1 kg / s
  • Efficiency 2.3 %
  • Effective surface 0.088 m2
  • Maximum displacement 7 mm
  • Displacement volume 616 cm3
  • Voice coil inductance 1.2 mH
€ 124,00 Price incl. VAT
