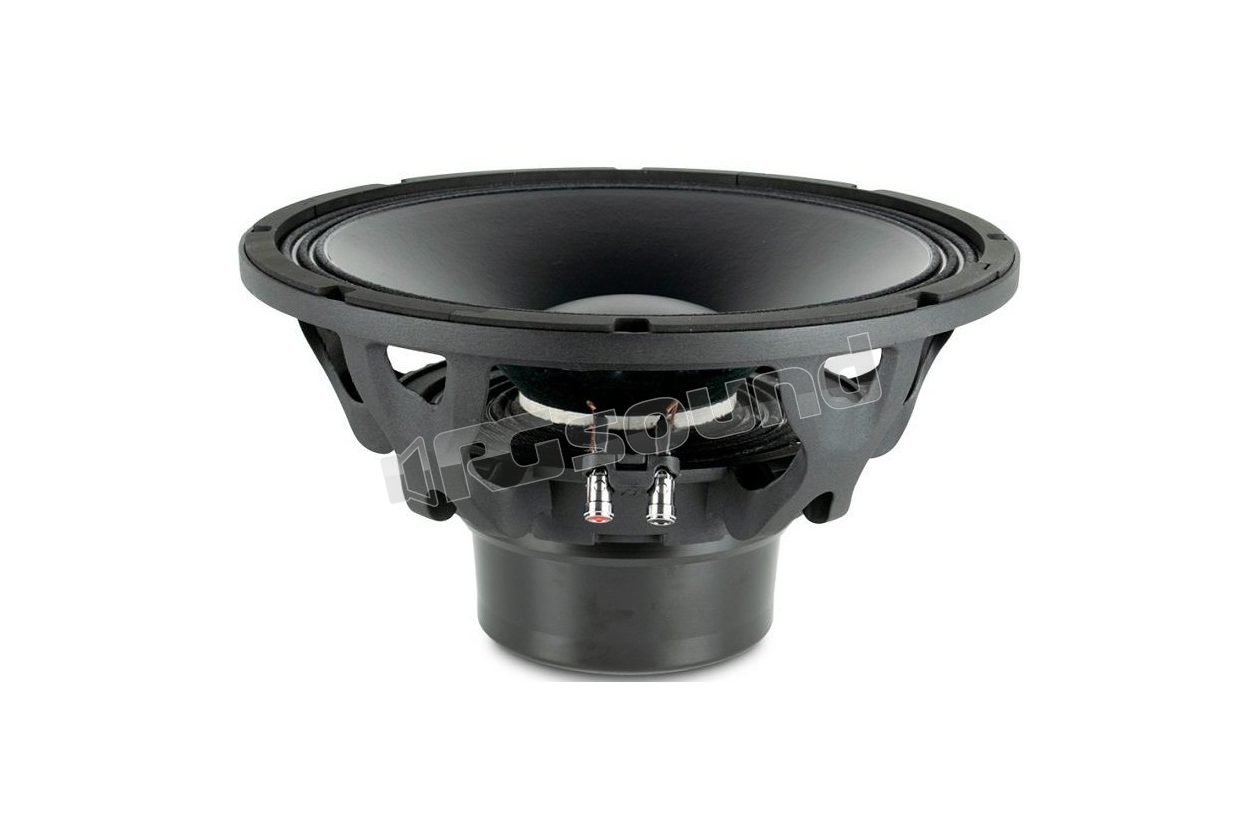

14MLEX1000ND 14" 8ohm 99dB 1000W Neodymium Woofer

Beyma
Your price:
€ 363,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Beyma 14MLEX1000ND 14" Woofer 8ohm 99dB 1000W Neodymium

14" high-power low-distortion woofer/mid-bass

14MLEX1000ND Features

  • Exclusive cooling system with Malt Cross® technology
  • Low power compression losses
  • High sensitivity: 99 dB (1 W / 1 m)
  • Neodymium magnetic circuit optimized with FEA
  • Extremely low air noise
  • Optimized linear behavior
  • Weather-resistant cone with treatment on both sides
  • Conex Spider
  • DUO dual-layer copper voice coil 4" (input/output)
  • Aluminum demodulation ring
  • Extended controlled excursion: Xmax ± 11 mm
  • Peak-to-peak travel of 60 mm before damage
  • Optimized for high-performance applications in bass or mid-bass
  • applications

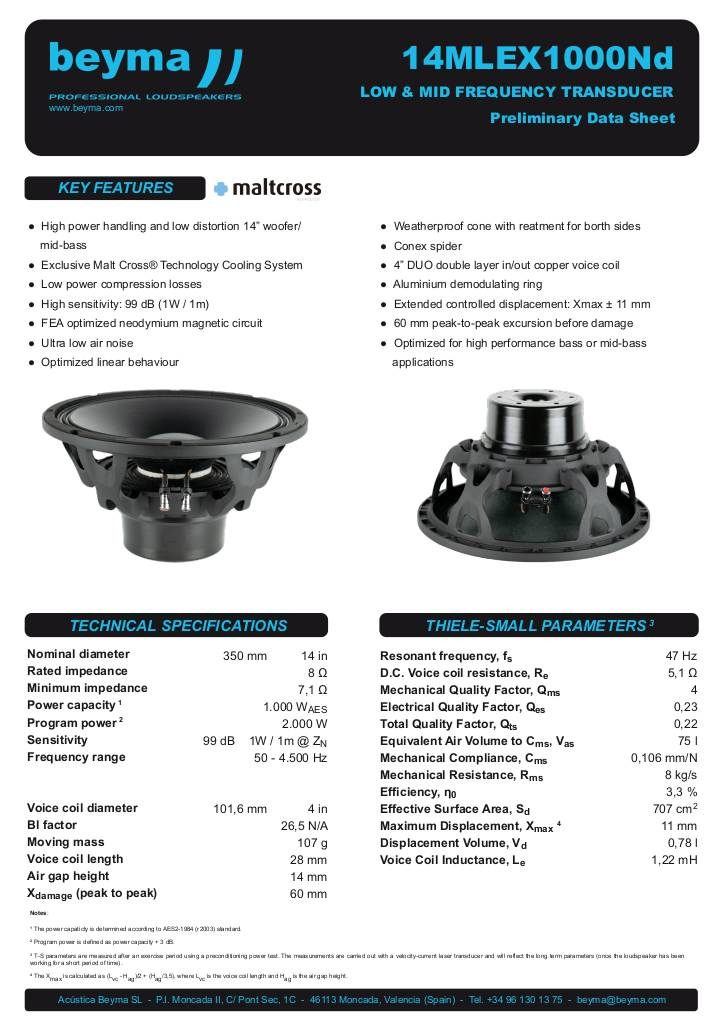

Scheda tecnica

n-20260623115858-14mlex1000nd.pdf

Beyma 14MLEX1000ND Technical Specifications

  • Rated power 1000 W AES
  • Nominal diameter 350 mm 14 in
  • Nominal impedance 8 Ohm
  • Minimum impedance 7.1 ohm
  • Program power 2000 W
  • Sensitivity 99 dB 1 W/1 m @ ZN
  • Frequency range 50-4500 Hz
  • Voice coil diameter 101.6 mm
  • BL factor 26.5 N / A
  • Moving mass 0.107 kg
  • Winding length 28 mm
  • Xdamage pp 60 mm
€ 363,00 Price incl. VAT
