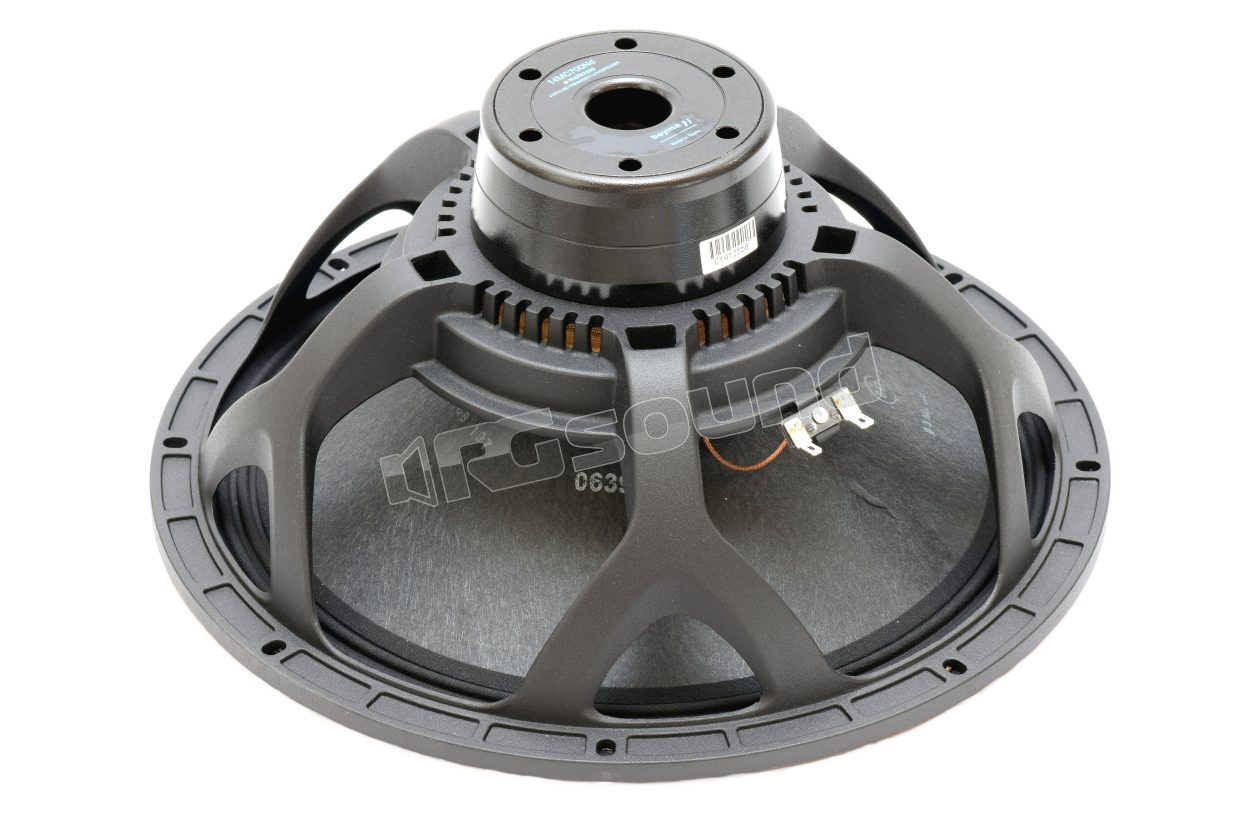

14MC700Nd 35cm high-sensitivity woofer

Beyma
Your price:
€ 371,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
350 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
55-400 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
4 Kg
Installation Depth
166 mm
Voice Coil Diameter
76 mm

Beyma 14MC700Nd woofer 35cm MC Series high sensitivity, exclusive cooling system with Malt Cross technology

Cone with waterproof treatment on both sides. Optimized to reproduce low and mid-low frequencies in high-performance audio systems.

Nominal impedance 8 Ohm
Power handling capacity 700 W AES
Nominal diameter 350 mm 14 inches
Sensitivity 99 dB 1 W / 1 m @ ZN
Minimum impedance 7.2 ohm
Frequency range 55-4000 Hz
Program power 1400 W.
Recommended enclosure volume 55 l
Voice coil diameter 76.2 mm 3 inches
BL factor 22 N / A
Moving mass 0.086 Kg
Winding length 18 mm
Air gap height 10 mm
Xdamage pp 48 mm

Thiele & Small Parameters
Fs 51 Hz
Ri 5.3 ohm
qms 3.3
QES 0.30
Qts 0.28
Vas 78 l
Cms 110 µm / N
Rms 8.3 kg / s
Efficiency% 3.3
Sd 0.070 m²
Xmax 7 mm
vd 490 cm³
Le @ 1 kHz 1 mH

Construction details
Depth 166 mm 6.5 inches
Net weight 4 kg 8.82 pounds
Total weight 5 kg 11 lb
Neodymium magnet

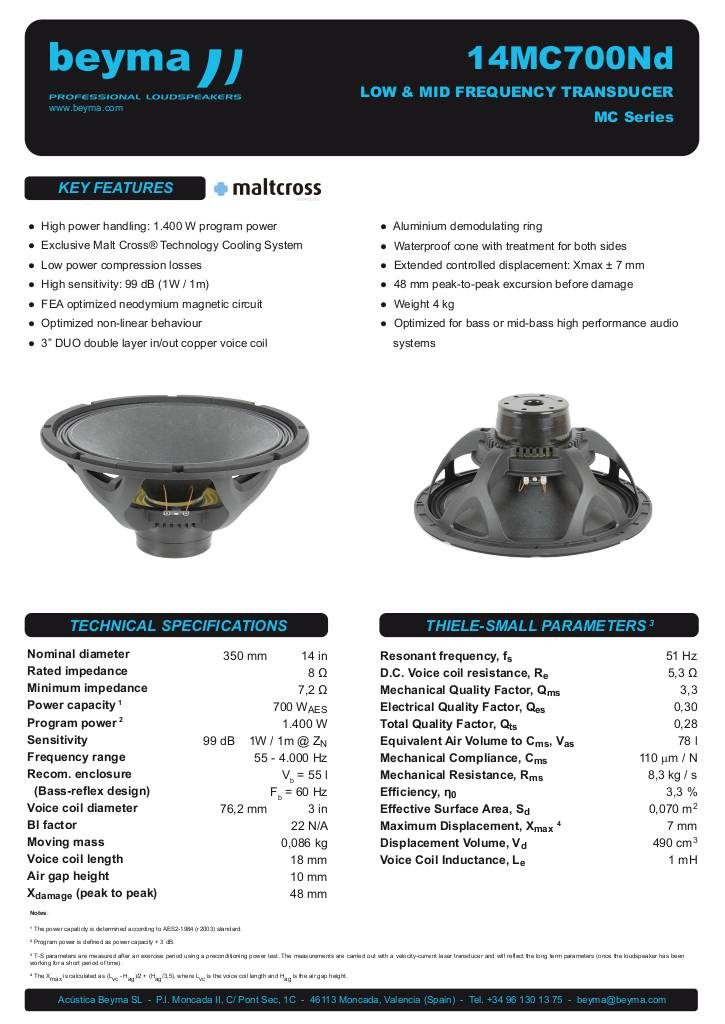

Scheda tecnica

n-20200717123301-beyma-speakers-data-sheet-low-mid-frequency-14mc700nd.pdf
€ 371,10 Price incl. VAT
