13TW5v2-2 slim sub 13.5'' 2 Ohm shallow-mount

JL Audio
Your price:
€ 890,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
350 mm
MAX Power
600 Watt
RMS Power
250 Watt
Sensitivity
85,5 dB
Impedance
2 Ohm
Weight
9,3 Kg
Installation Depth
67 mm

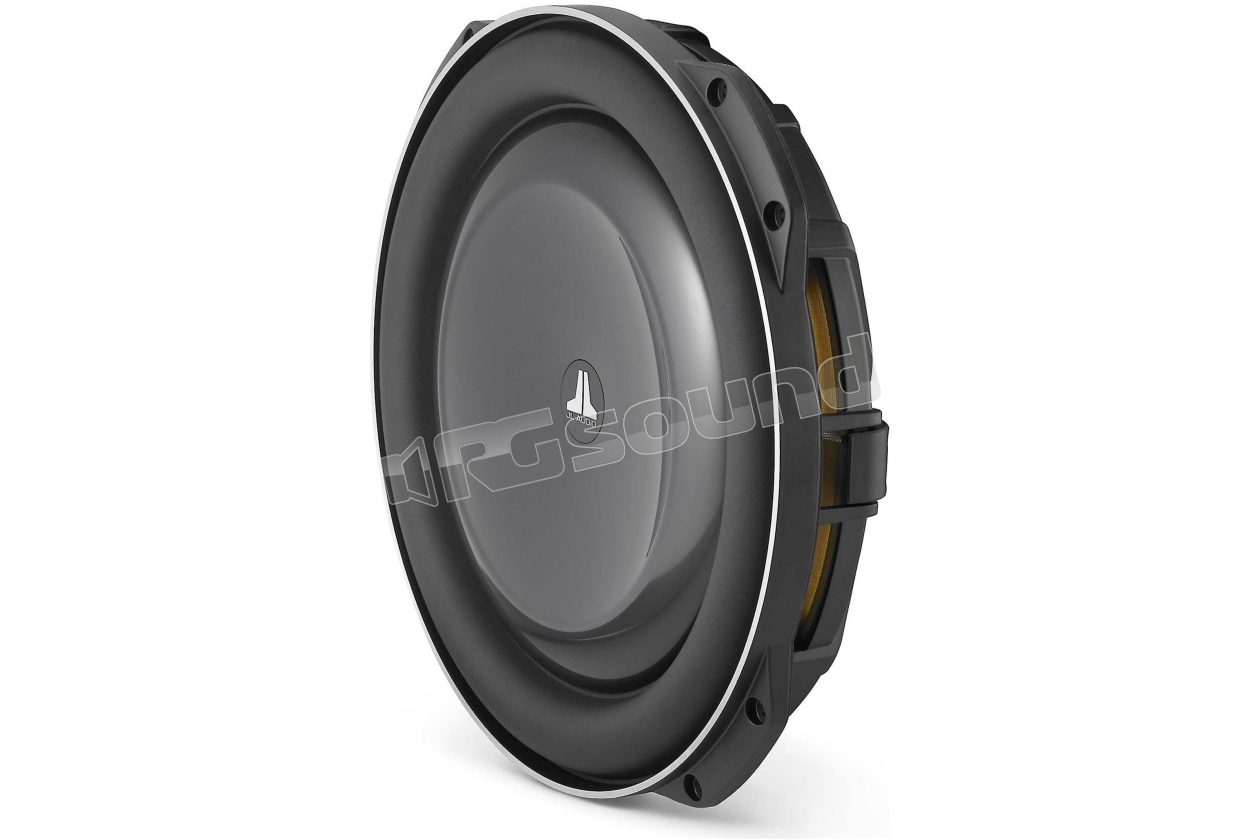

JL Audio 13TW5-2 slim subwoofer 345mm (13.5") with a power of 600 W and impedance 2 Ω

13TW5-2 is a particularly thin woofer made with a patented JL Audio technology that exploits a "concentric tube" structure to support the 7" diameter voice coil and suspension attachments. Excellent permeability capacity and mechanical stability.

To unleash even more performance from this technology, the v2 improves the original 13TW5 with a linear excursion capacity 13% greater. The die-cast aluminum frame has also been modified for greater strength and the redesigned motor now features an annular vent.

In line with its mission to be installable in tight spaces, the 13TW5V2 is optimized for enclosures that require woofers smaller than 12 inches and a little larger than the air space required for a typical 10 inch woofer.

13TW5v2 is best used with amplifier power in the range 250W - 600W and is optimized to operate at 0.80 cu. sealed enclosure 22.7 liters.

JL Audio 13TW5-2 technical features

Power handling 600 W
Recommended amplifier power (RMS) 250 - 600 W
Nominal impedance 2 Ohm
Nominal diameter 13.5 inches / 345 mm
Outer diameter 14.2 inches / 361 mm
Mounting hole diameter 12.5 inches / 318 mm
Outer motor diameter 6.75 inches / 171 mm
Mounting depth 2.625 inches / 67 mm
Net weight 20.5 lb / 9.3 kg
Efficiency (1 W / 1 m) 85.51 dB SPL

JL Audio 13TW5-2 sealed enclosure features

Wall thickness 0.75 inches / 19 mm
Front baffle thickness 0.75 inches / 19 mm
Volume (int. Net) 0.80 cu ft / 22.66 L
External width 19 inches / 483 mm
External height 15 inches / 381 mm
External depth 7.75 inches / 197 mm
F3 41.18 Hz
Fc 50.75 Hz
Qtc 0.937

€ 890,00 Price incl. VAT
