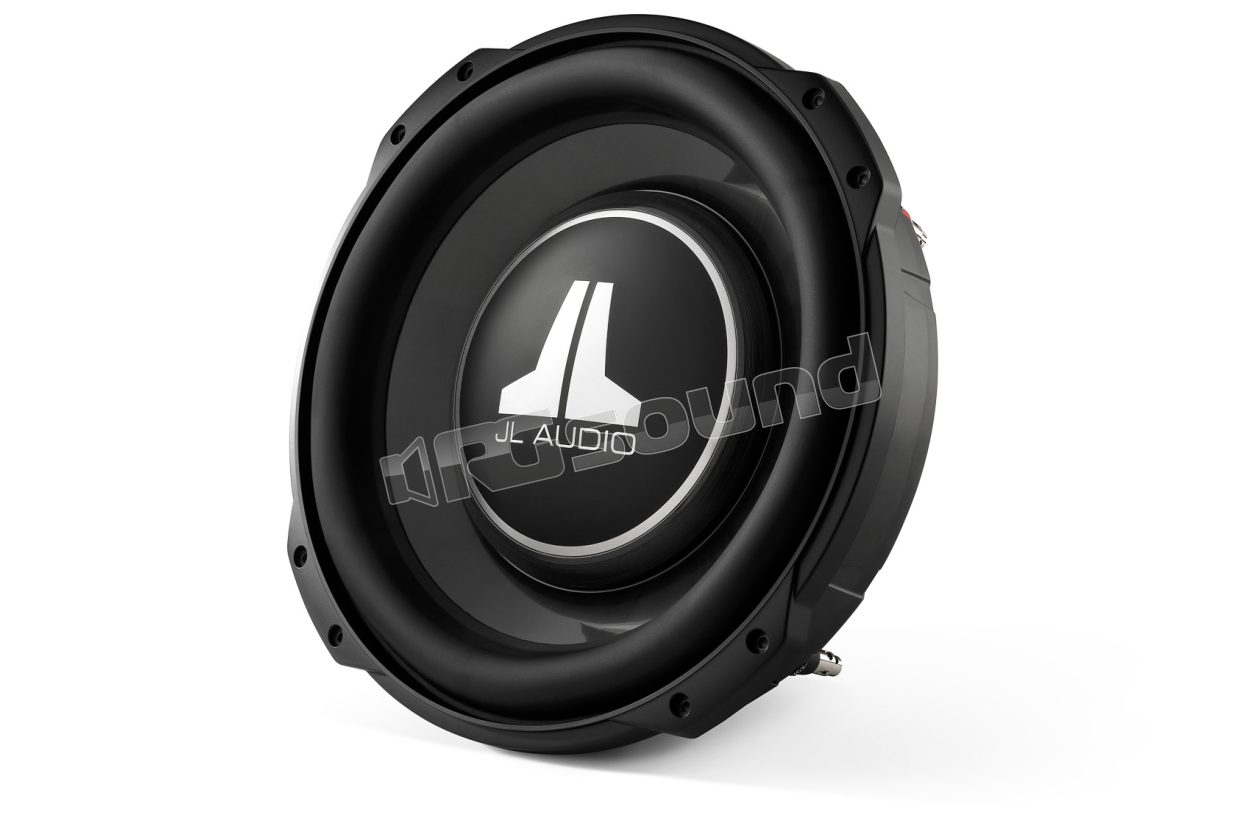

12TW3-D43 compact 30 cm sub

JL Audio

Discontinued

Your price:
€ 449,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
22 - 200 Hertz
Sensitivity
84 dB
Impedance
4 + 4 Ohm
Weight
6,8 Kg
Installation Depth
89 mm
Woofer Material
Polipropilene iniettato Mica

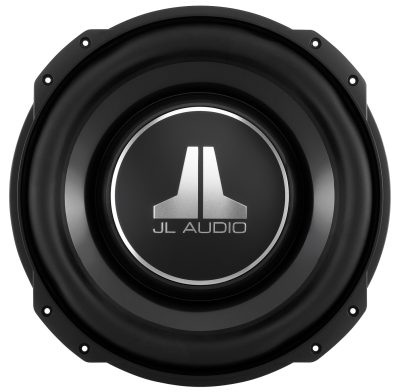

JL Audio 12TW3-D43 compact subwoofer 300mm TW3 Series, dual 4 Ohm voice coil, rated power 400W.

Built using many technologies from the ultra-slim TW5 Series subs, the new TW3 Series of subs offers an excellent combination of large linear excursions, even greater than the W3v3 Series, while maintaining a reduced mounting depth.

To achieve these incredible performances, the same construction technology from the TW5 Series defined as coaxial tube was also used, which guarantees greater mechanical stability.

12TW3-D43 Features

Offering a very reduced mounting depth, the 12TW3-D43 subwoofer operates in truly compact acoustic enclosures, making it therefore perfect for installations in tight spaces while maintaining great acoustic performance.

Subwoofer from the TW3 speaker series capable of delivering great power with a reduced mounting depth. The compact dimensions of the 12TW3-D43 are obtained using a patented JL Audio "coaxial tube" structure, integrated into the cone (made of Mica-injected Polypropylene), to support the voice coil.

12TW3-D43 technical specifications

Continuous Power Handling (RMS) 400 W

Recommended Amplifier Power (RMS) 100 - 400 W

Nominal Impedance (Znom) Dual 4 Ω

Free Air Resonance (Fs) 26.46 Hz

Electrical "Q" (Qes) 0.558

Mechanical "Q" (Qms) 10.766

Total Speaker "Q" (Qts) 0.531

Equivalent Compliance (Vas) 1.72 cu ft / 48.73 L

One-Way Linear Excursion (Xmax) 0.6 in / 15.2 mm

Efficiency (1 W / 1 m) 84.11 dB SPL

Effective Piston Area (Sd) 83.517 sq in / 0.0539 sq m

DC Resistance (Re) 9.280 Ω

12TW3-D43 dimensions and weight

Speaker diameter 300 mm

Outer diameter 318 / 335 mm

Mounting hole diameter 295 mm

Screw hole diameter 218 mm

Motor diameter 156 mm

Mounting depth 89 mm

Driver Displacement 0.029 cu ft / 0.82 L

Weight 6.8 kg

Discontinued
