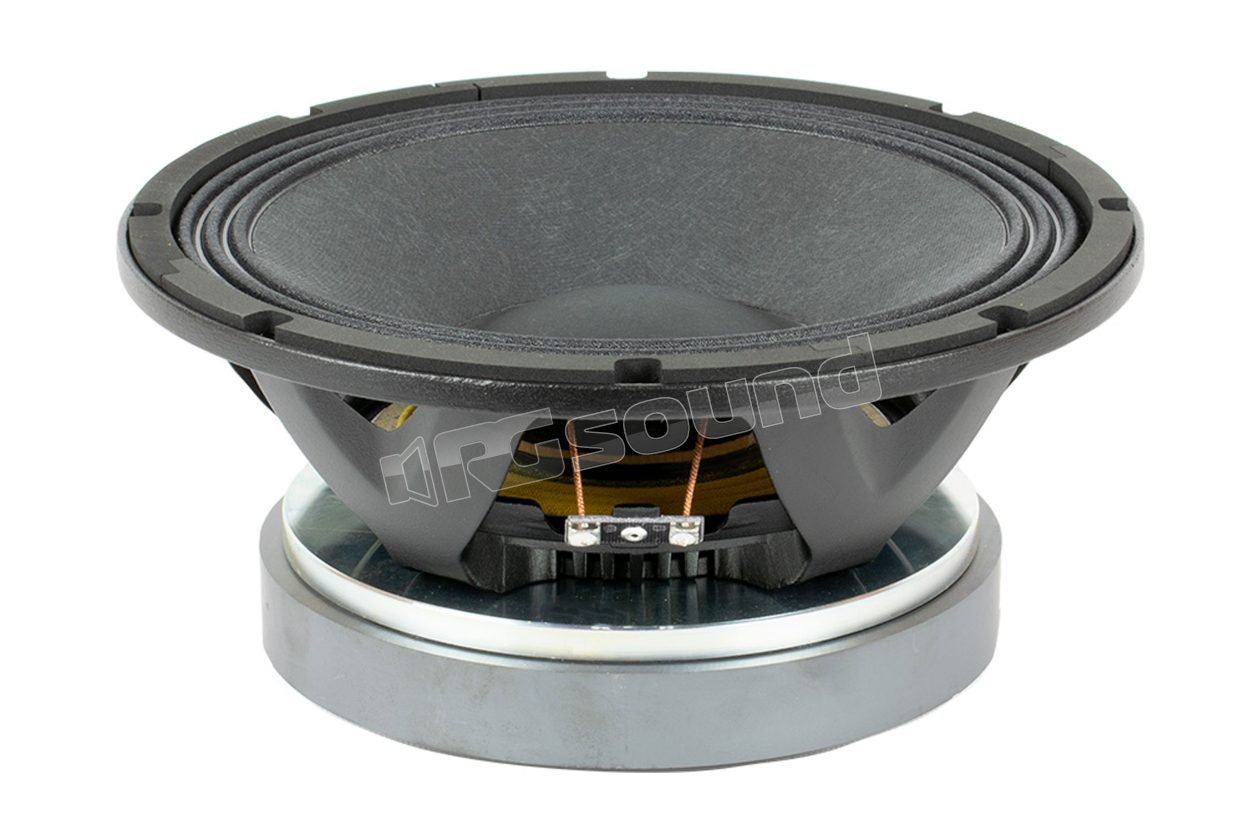

12MCB700 30cm 8 Ohm woofer for low / mid-low frequency applications

Beyma
Your price:
€ 225,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
55-4000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
7,8 Kg
Installation Depth
145 mm
Voice Coil Diameter
76 mm

Beyma 12MCB700 woofer with waterproof treatment on both sides of the cone

Nominal impedance 8 Ohm
Power handling 700 W AES
Nominal diameter 300 mm 12 inches
Sensitivity 98 dB 1 W @ 1 m @ ZN
Minimum impedance 7.1 ohm
Frequency range 55-4000 Hz
Program power 1400 Watt
Recommended enclosure volume 40 l
Voice coil diameter 76.2 mm 3 inches
BL factor 20.4 N / A
Moving mass 0.069 kg
Coil winding length 18 mm
Air gap height 9.5 mm
Xdamage pp 45 mm

Thiele & Small Parameters
Fs 51 Hz
Ri 5.4 ohm
qms 3.9
QES 0.29
Qts 0.27
Vas 59.5 l
Cms 139 µm / N
Rms 5.6 kg / s
Efficiency% 2.7
Sd 0.055 m²
Xmax 7 mm
vd 385 cm³
Le @ 1 kHz 0.9 mH

Construction details
Depth 145 mm 5.7 inches
Net weight 7.8 kg 17.2 pounds
Total weight 9.5 kg 20.9 pounds
Ferrite magnet

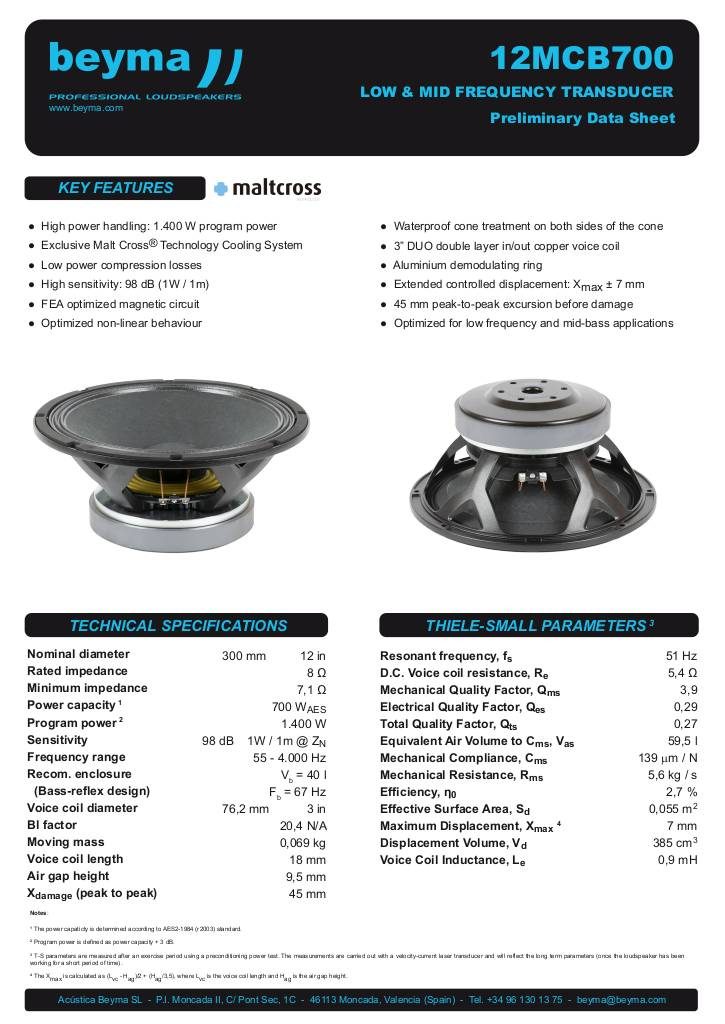

Scheda tecnica

n-20200717110909-beyma-speakers-data-sheet-low-mid-frequency-12mcb700.pdf
€ 225,10 Price incl. VAT
