12LEX1300Nd 30cm high-power subwoofer 1300/2600 Watt with low distortion

Beyma
Your price:
€ 582,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2600 Watt
RMS Power
1300 Watt
Frequency Response
45-1500 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
8,3 Kg
Installation Depth
176 mm
Voice Coil Diameter
101,6 mm

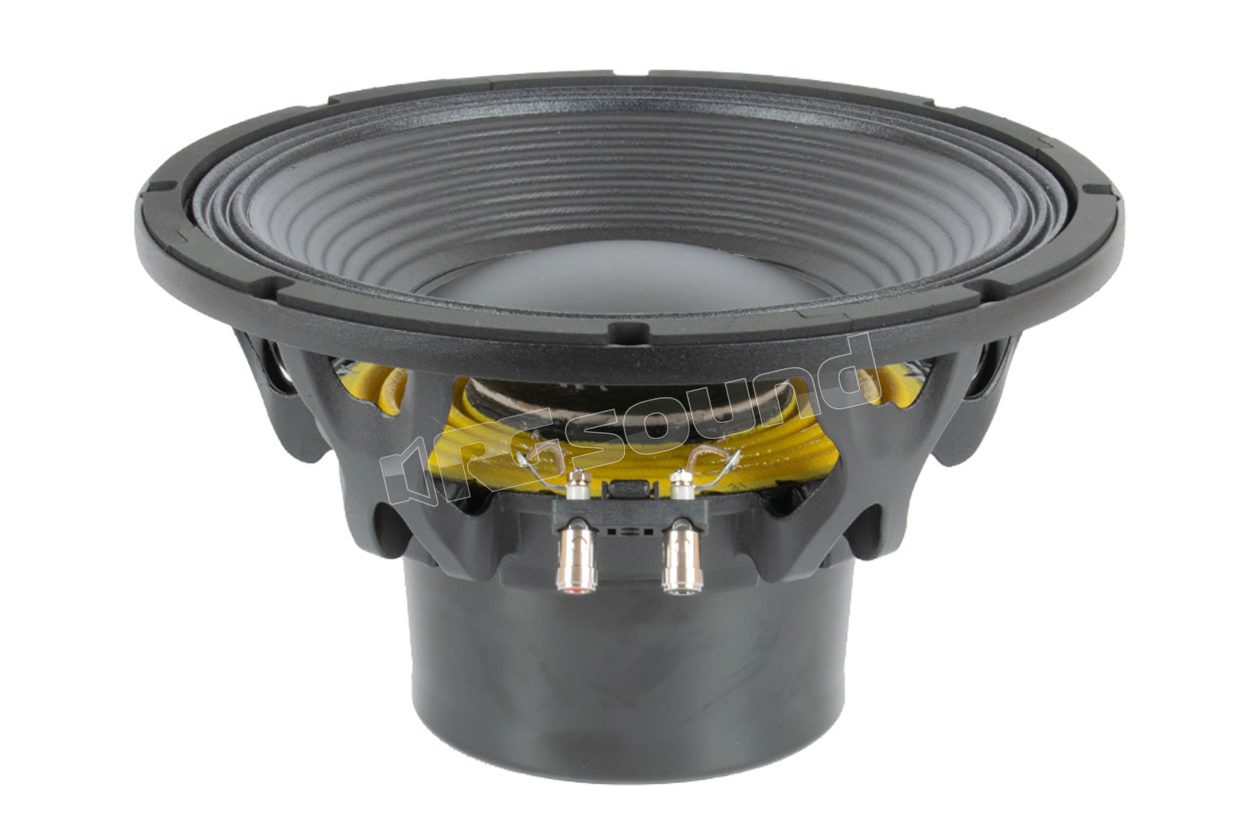

Beyma 12LEX1300Nd subwoofer 30cm (12") high power and low distortion

Both sides of the cone waterproof, exclusive cooling system with Malt Cross technology.

Nominal impedance 8 Ohm
Power handling capacity 1300 W AES
Nominal diameter 300 mm 12 inches
Sensitivity 96 dB 1 W / 1 m @ ZN
Minimum impedance 6.8 ohm
Frequency range 45-1500 Hz
Program power 2600 W
Recommended enclosure volume 45 l
Voice coil diameter 101.6 mm 4 inches
BL factor 26.4 N / A
Moving mass 0.125 kg
Winding length 28 mm
Air gap height 14 mm
Xdamage pp 65 mm

Thiele & Small Parameters
Fs 45 Hz
Ri 5 ohm
qms 4.2
QES 0.25
Qts 0.24
Vas 43 l
Cms 100 µm / N
Rms 8.4 kg / s
Efficiency% 1.5
Sd 0.055m²
Xmax 11 mm
vd 605 cm³
Le @ 1 kHz 1.3 mH

Construction Details
Depth 176 mm 6.9 inches
Net weight 8.3 kg 18.3 pounds
Total weight 9.0 kg 19.8 pounds
Neodymium magnet

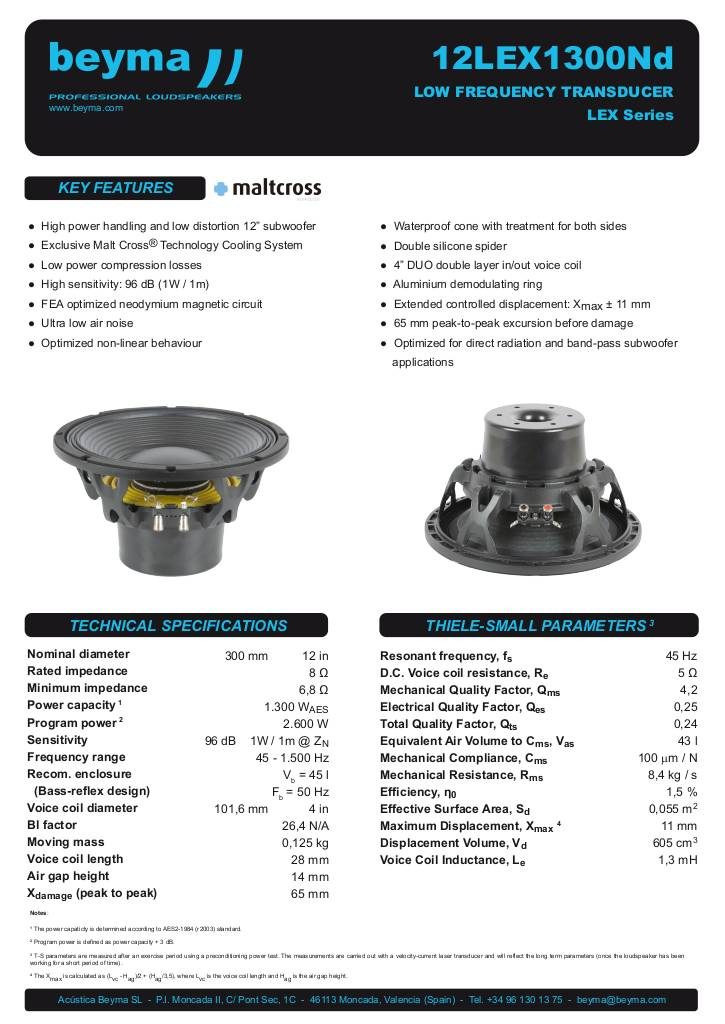

Scheda tecnica

n-20200717122141-beyma-speakers-data-sheet-low-mid-frequency-12lex1300nd.pdf
