12LEX1000Fe 30cm high-power, low-distortion subwoofer

Beyma
Your price:
€ 266,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
50-1500 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
10 Kg
Installation Depth
166 mm
Voice Coil Diameter
89 mm

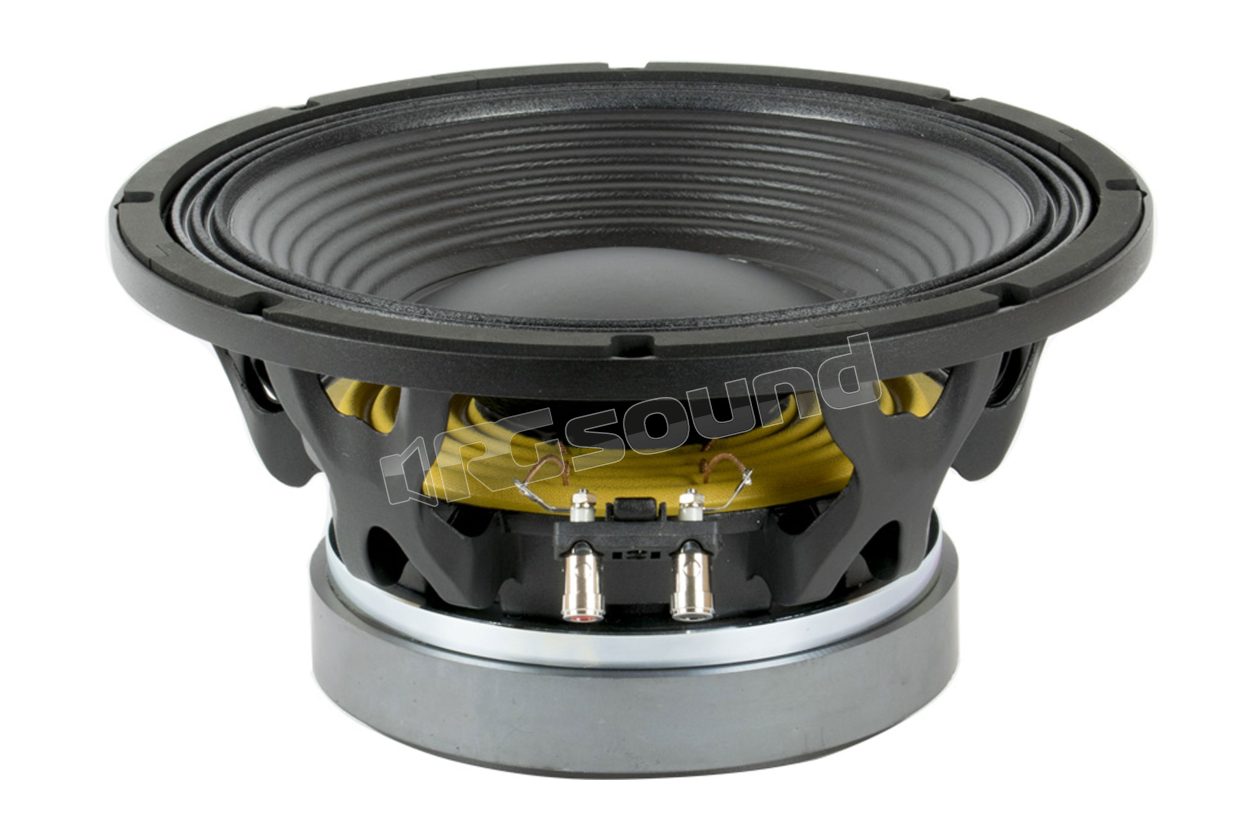

Beyma 12LEX1000Fe 30cm (12") subwoofer, 8 Ohm impedance, high power and low distortion

Nominal impedance 8 Ohm
Power handling capacity 1000 W AES
Nominal diameter 300 mm 12 inches
Sensitivity 95 dB 1 W / 1 m @ ZN
Minimum impedance 7.6 ohm
Frequency range 50-1500 Hz
Program power 2000 Watt
Recommended enclosure volume 50 l
Voice coil diameter 88.9 mm 3.5 inches
BL factor 24.6 N / A
Moving mass 0.018 kg
Winding length 27 mm
Air gap height 12 mm
Xdamage pp 51 mm

Thiele & Small Parameters
Fs 49 Hz
Ri 5.4 ohm
qms 3.6
QES 0.32
Qts 0.3
Vas 38.4 l
Cms 89 µm / N
Rms 10.1 kg / s
Efficiency% 1.3
Sd 0.055m²
Xmax 11 mm
vd 605 cm³
Le @ 1 kHz 1.7 mH

Construction Details
Depth 166 mm 6.5 inches
Net weight 10.4 kg 22.9 pounds
Total weight 11.1 kg 24.4 pounds
Ferrite magnet

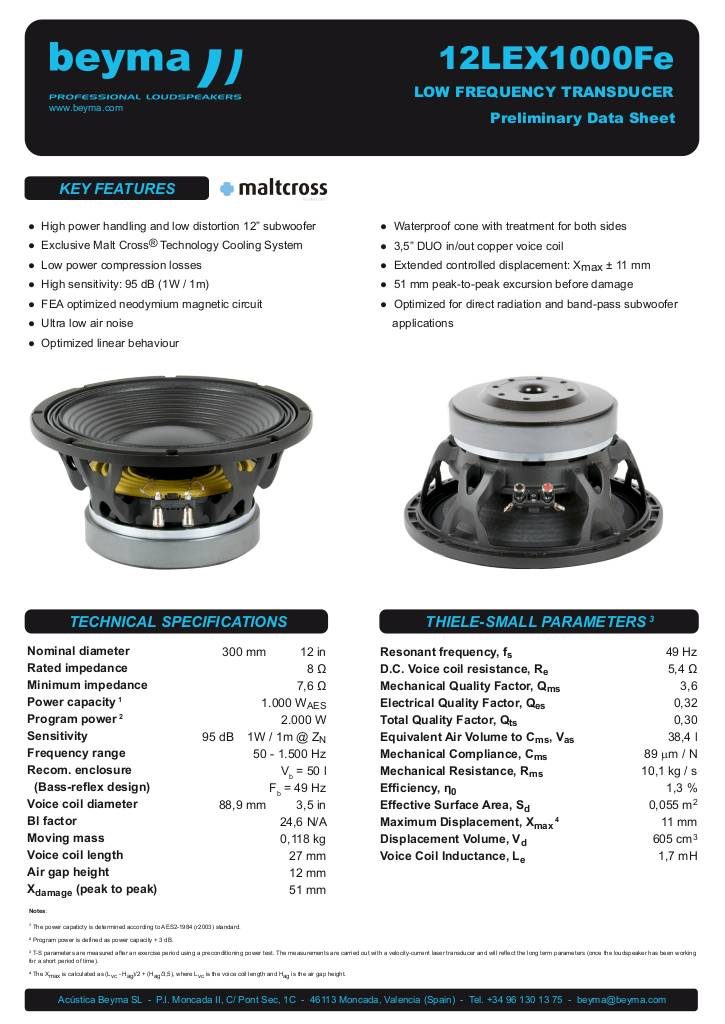

Scheda tecnica

n-20200717120440-beyma-speakers-data-sheet-low-mid-frequency-12lex1000fe.pdf
€ 266,00 Price incl. VAT
