12CMV3 12" 8ohm Ferrite Woofer

Beyma
Your price:
€ 146,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
640 Watt
RMS Power
320 Watt
Frequency Response
50+6000 Hertz
Sensitivity
96.5 dB
Impedance
8 Ohm

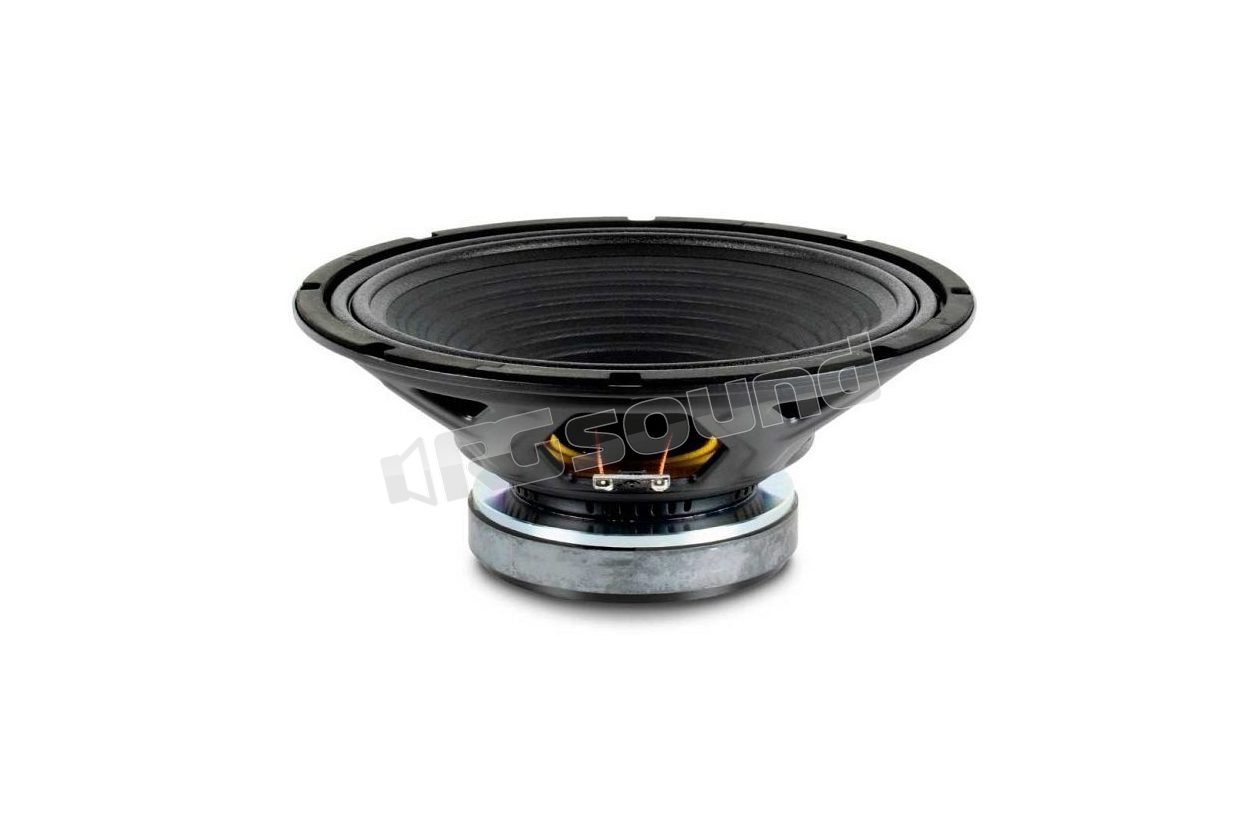

Beyma 12CMV3 12" Ferrite Woofer 8 Ohm

The new 12CMV3 features a new membrane with redesigned surround and cone, both optimized with Multiphysics software to offer an overall improved response across the entire frequency range.

The redesigned parts significantly reduce distortion in the low frequency range, thanks to improved excursion capabilities of the frame. Additionally, the improved cone behavior offers a more linear response in the crossover region and greater efficiency and, therefore, slightly higher sensitivity compared to the previous version of the driver.

Finally, an improved weather resistance treatment has also been implemented on both sides of the membrane.

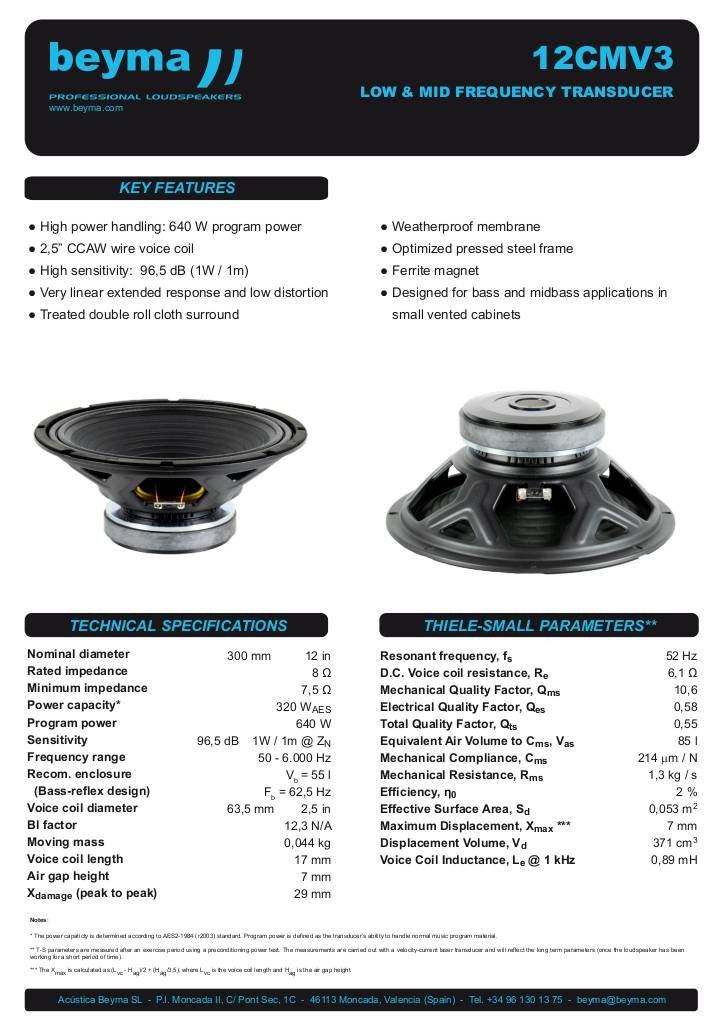

Scheda tecnica

n-20251021162604-12cmv3.pdf

Beyma 12CMV3 Technical specifications

  • Rated power 320 W AES
  • Nominal diameter 300 mm 12 inches
  • Nominal impedance 8 Ohm
  • Minimum impedance 7.5 Ohm
  • Program power 640 W
  • Sensitivity 96.5 dB 1 W @ 1 m @ ZN
  • Frequency range 50-6000 Hz
  • Recommended enclosure volume 55 l
  • Voice coil diameter 63.5 mm 2.5 inches
  • BL factor 12.3 N/A
  • Moving mass 0.044 kg
  • Winding length 17 mm
  • Air gap height 7 mm
  • Xdamage pp 29 mm
