12CMV2 12" Mid-Bass Speaker

Beyma
Your price:
€ 139,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
640 Watt
RMS Power
320 Watt
Frequency Response
50 - 6000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Voice Coil Diameter
63 mm

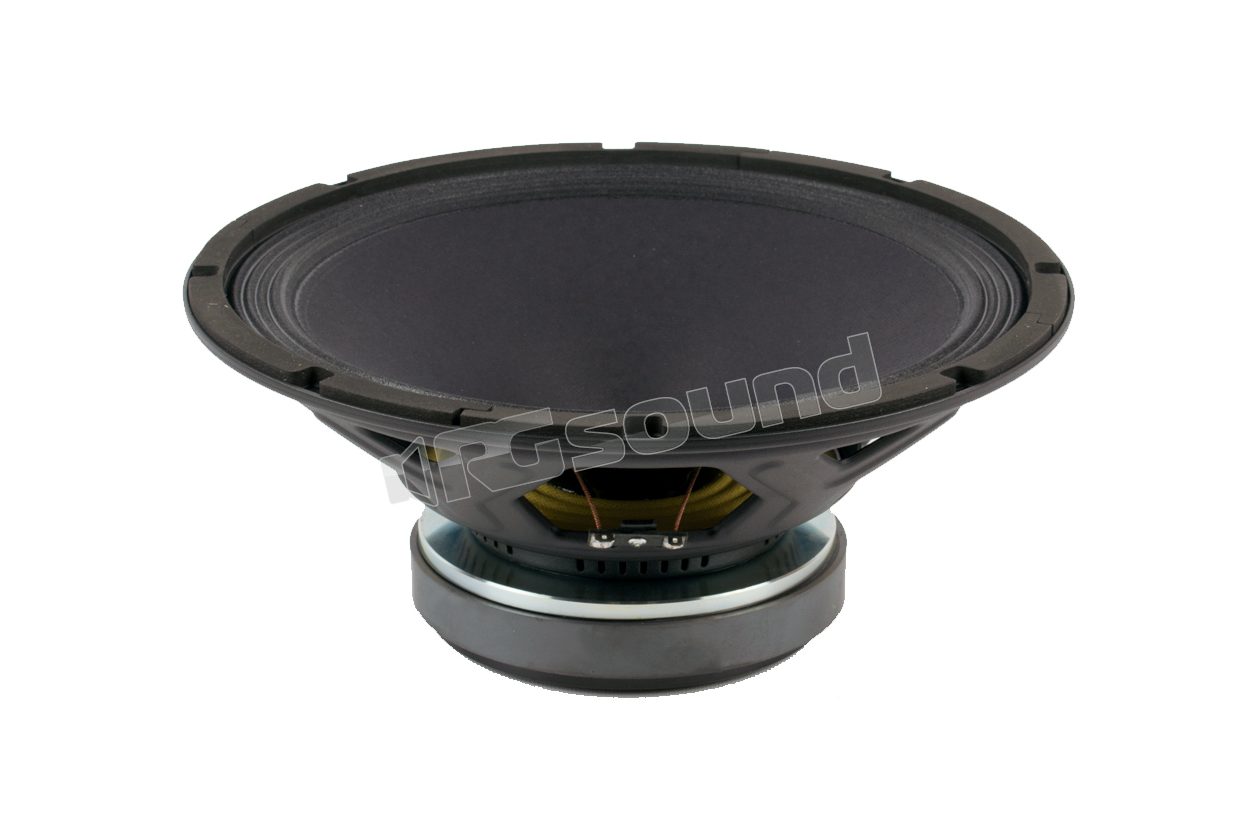

Beyma 12CMV2 12" Midwoofer Speaker

The new Beyma 12CMV2 12" midwoofer handles 320 watts AES and 640 watts program power, strong mids and intense lows, high values of 7.0 mm Xmax and 29 mm peak Xmax. With dual treated fabric surround and paper cone it is designed to operate in small and medium sized speaker cabinets for electric bass, PA systems, etc.

12CMV2 Features

  • High power handling: 640 W program power
  • 2.5" voice coil in CCAW wire
  • High sensitivity: 96 dB (1W / 1m)
  • Extended very linear response and low distortion
  • Triple treated fabric suspension
  • Optimized stamped steel frame
  • Ferrite magnet
  • Designed for bass and midrange applications in small vented cabinets in small vented cabinets

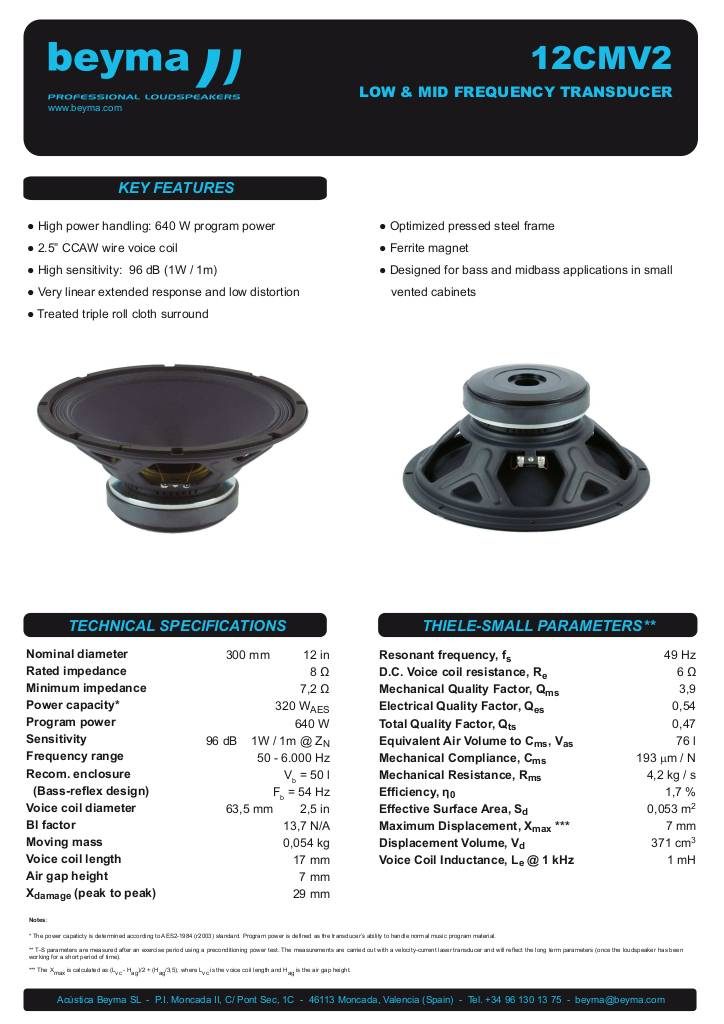

Scheda prodotto

n-20230724125038-beyma-speakers-data-sheet-low-mid-frequency-12cmv2.pdf

Beyma 12CMV2 Technical Specifications

  • Nominal diameter 300 mm 12 in
  • Nominal impedance 8 Ω
  • Minimum impedance 7.2 Ω
  • Power handling 320 W
  • Program power 640 W
  • Sensitivity 96 dB 1W / 1m @ ZN
  • Frequency range 50 - 6.000 Hz
  • Voice coil diameter 63.5 mm 2.5 in
  • Bl factor 13.7 N/A
  • Moving mass 0.054 kg
  • Voice coil length 17 mm
  • Gap height 7 mm
  • Damage X (peak to peak) 29 mm
  • Resonance frequency 49 Hz
  • Voice coil resistance D.C. 6 Ω
  • Mechanical quality factor 3.9
  • Electrical quality factor 0.54
  • Total quality factor 0.47
  • Equivalent air volume Cms 76 l
  • Mechanical compliance 193 µm / N
  • Mechanical resistance 4.2 kg / s
  • Efficiency 1.7 %
  • Effective surface 0.053 m2
  • Maximum displacement 7 mm
  • Displacement volume 371 cm3
  • Voice coil inductance 1 mH
€ 139,00 Price incl. VAT
