112

DD Audio Digital Designs

Discontinued

Your price:
€ 99,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
100 Watt
Sensitivity
85 dB
Impedance
4 Ohm
Installation Depth
140 mm
Woofer Material
Cellulosa trattata

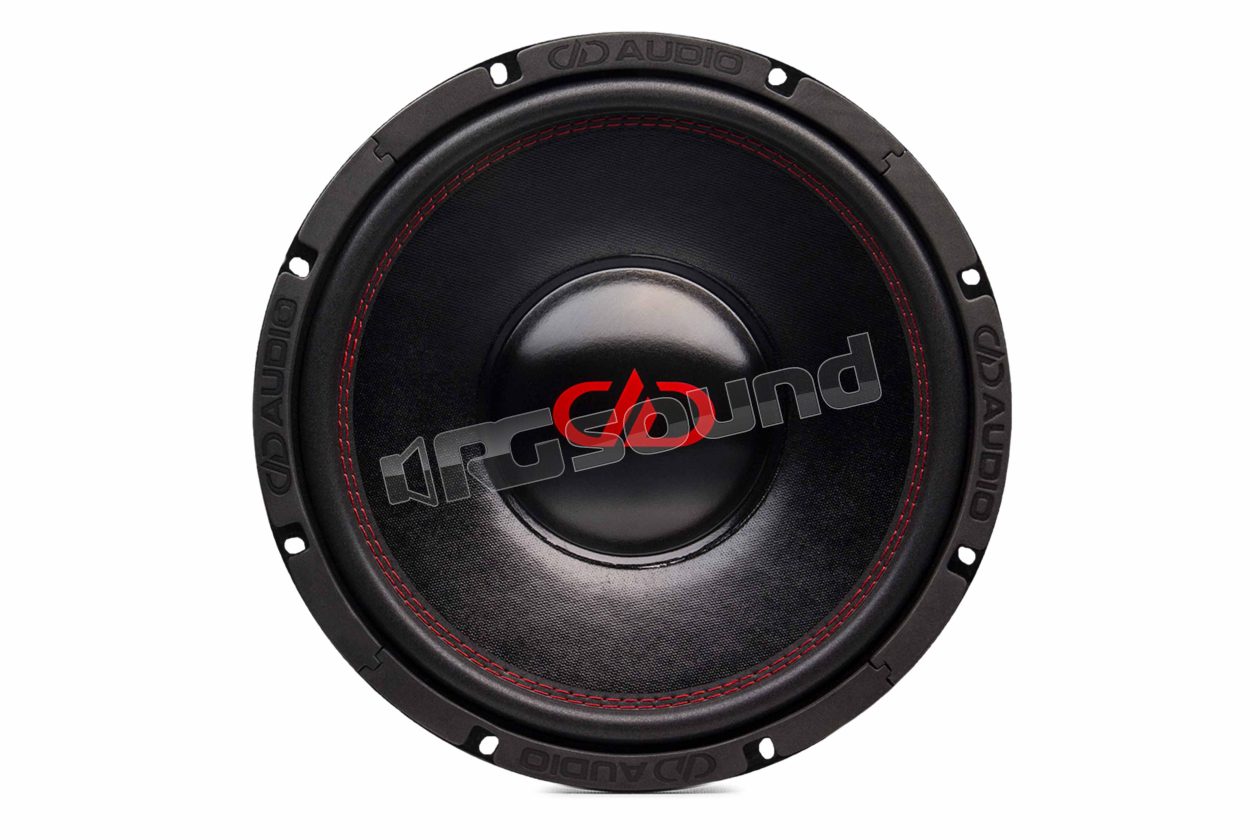

DD Audio 112 30 cm subwoofer designed to deliver high output with a minimum of 100 Watts. Hand-built and tuned to perform well in sealed and vented enclosures.

Main features of the 100 series subs:

Dual-layer EROM surround
High temperature resistant aluminum 2.0" voice coil
Dual-layer laminated spider
Non-pressed paper cone
Basket with cooling vent

DD Audio 112 technical specifications

Sub diameter 30 cm
RMS power 100 W
Maximum power 600 W
Voice coil diameter 2" / 5 cm
Impedance 4 Ohm
Fs - Hz 38
Qms 5.789
Qes 0.627
Qts 0.5657
Vas - liters 34.78
dBSPL 85

Frame diameter 311 mm
Mounting diameter 286 mm
Mounting depth 140 mm
Motor diameter 138 mm

Recommended enclosure dimensions:

Sealed enclosure - cu ft 1.25-1.75
Closed enclosure - cu ft 1.75-2.75

Discontinued
