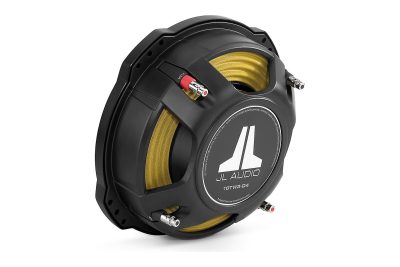

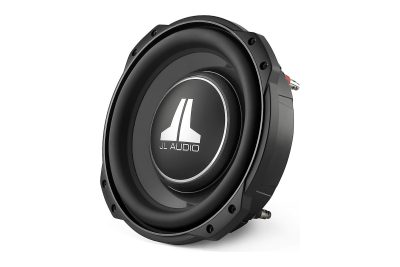

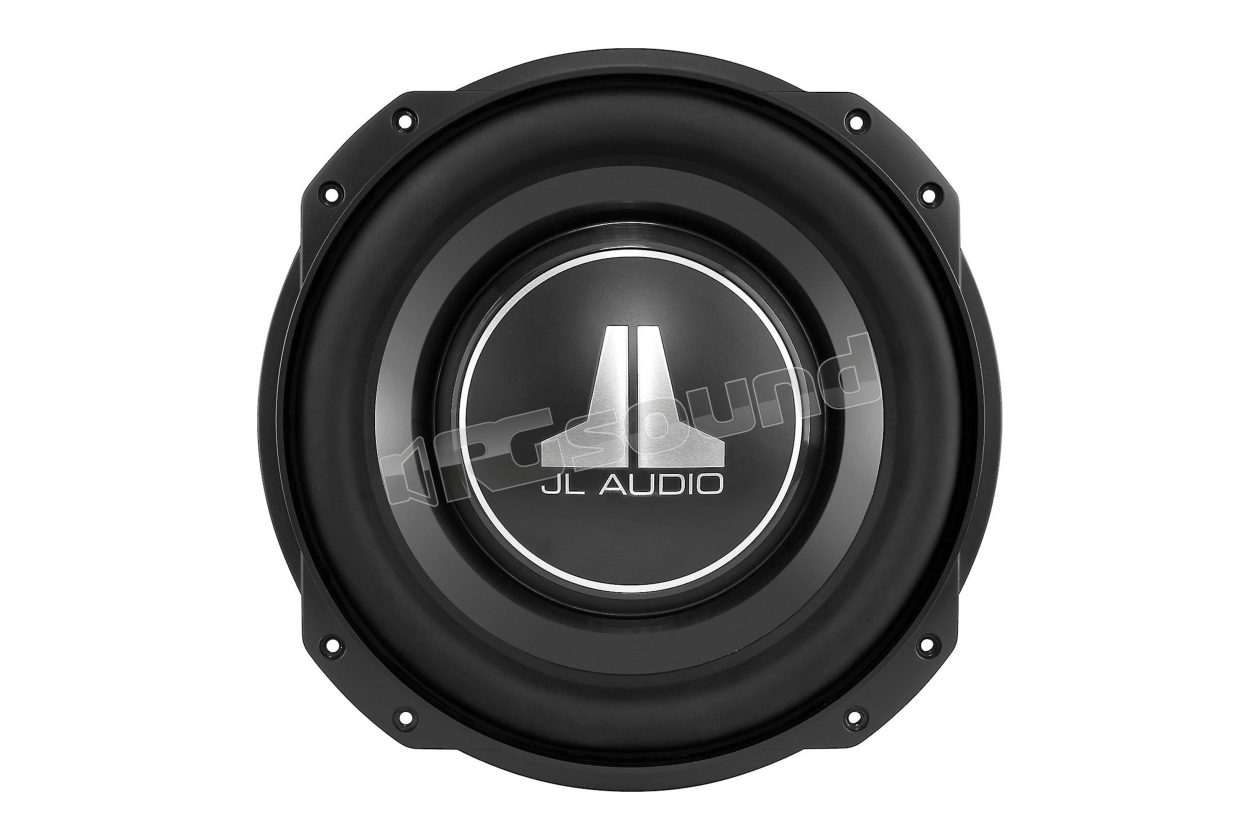

10TW3-D43 25cm flat sub TW3 Series

JL Audio

Discontinued

Your price:
€ 404,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
RMS Power
400 Watt
Sensitivity
82 dB
Impedance
4 + 4 Ohm
Weight
4,6 Kg
Installation Depth
83 mm

JL Audio 10TW3-D43 compact subwoofer 250mm TW3 Series, dual 4 Ohm voice coil, 400W nominal power.

Built using many technologies from the ultra-flat TW5 Series subs, the new TW3 Series of subs offers an excellent combination of large linear excursions, even greater than the W3v3 Series, while maintaining a reduced mounting depth.

To achieve these incredible performances, the same construction technology of the TW5 Series defined as concentric tube has been used, which guarantees greater mechanical stability.

10TW3-D43 Features

Offering a very reduced mounting depth, the 10TW3-D43 subwoofer operates in truly compact acoustic boxes, so it is perfect for installations in tight spaces while maintaining great acoustic performance.

Subwoofer of the TW3 speaker series capable of delivering great power with a reduced mounting depth. The compact dimensions of the 10TW3-D43 are achieved using a proprietary JL Audio "concentric tube" structure, integrated in the cone (made of Mica-injected Polypropylene), supporting the voice coil.

10TW3-D43 technical specifications

Continuous Power Handling (RMS) 400 W

Recommended Amplifier Power (RMS) 200 - 400 W

Nominal Impedance (Znom) Dual 4 Ω

Free Air Resonance (Fs) 32.30 Hz

Electrical "Q" (Qes) 0.656

Mechanical "Q" (Qms) 11.35

Total Speaker "Q" (Qts) 0.62

Equivalent Compliance (Vas) 0.700 cu ft / 19.82 L

One-Way Linear Excursion (Xmax) 0.6 in / 15.2 mm

Reference Efficiency (no) 0.23%

Efficiency (1 W / 1 m) 82.10 dB SPL

Effective Piston Area (Sd) 56.532 sq in / 0.0365 sq m

DC Resistance (Re) 9.036 Ω

10TW3-D43 dimensions and weight

Speaker diameter 250 mm

Outer diameter 267 / 284 mm

Mounting hole diameter 244 mm

Screw hole diameter 267 mm

Motor diameter 130 mm

Mounting depth 83 mm

Driver Displacement 0.019 cu ft / 0.54 L

Weight 4.6 kg

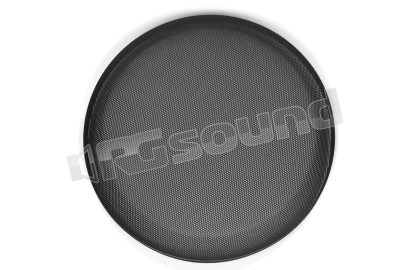

Price incl. VAT
€ 45,00

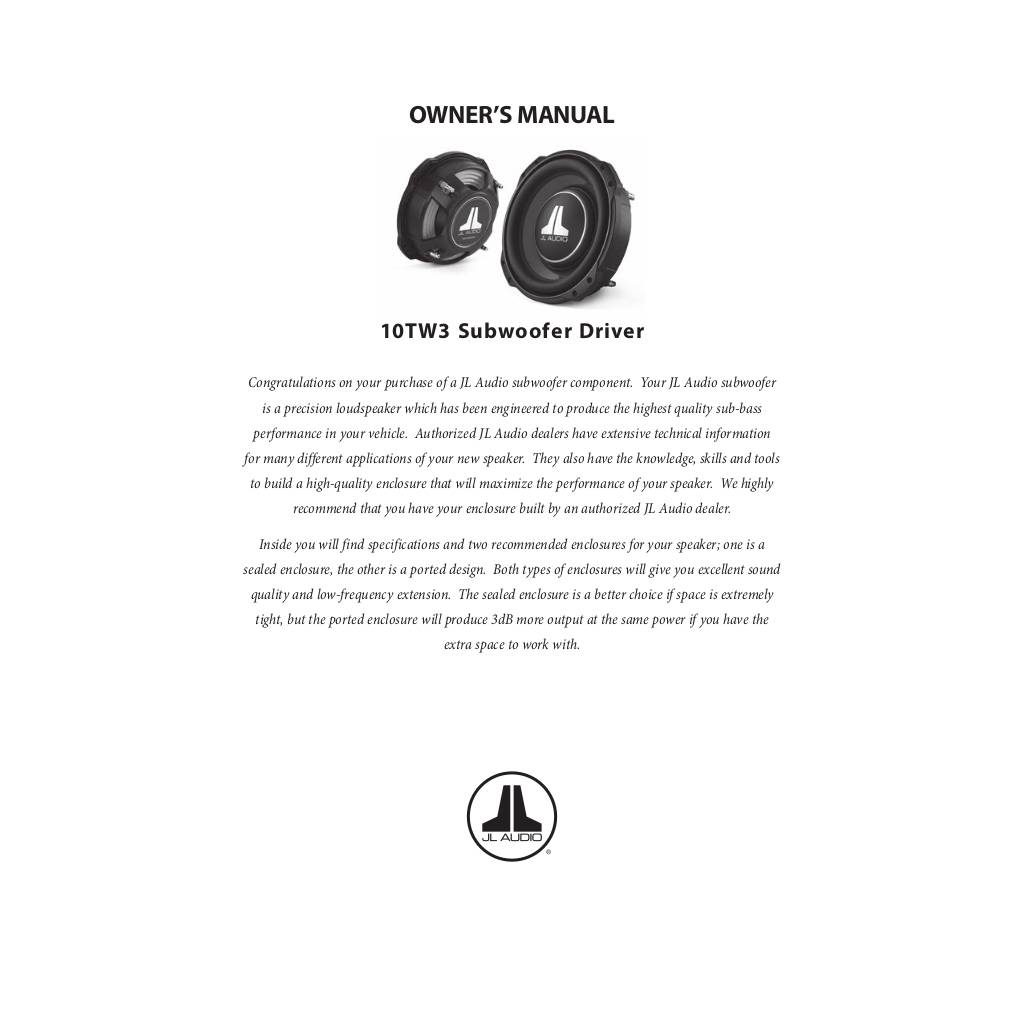

Manuale di installazione

n-20180912112648-10tw3-man.pdf
