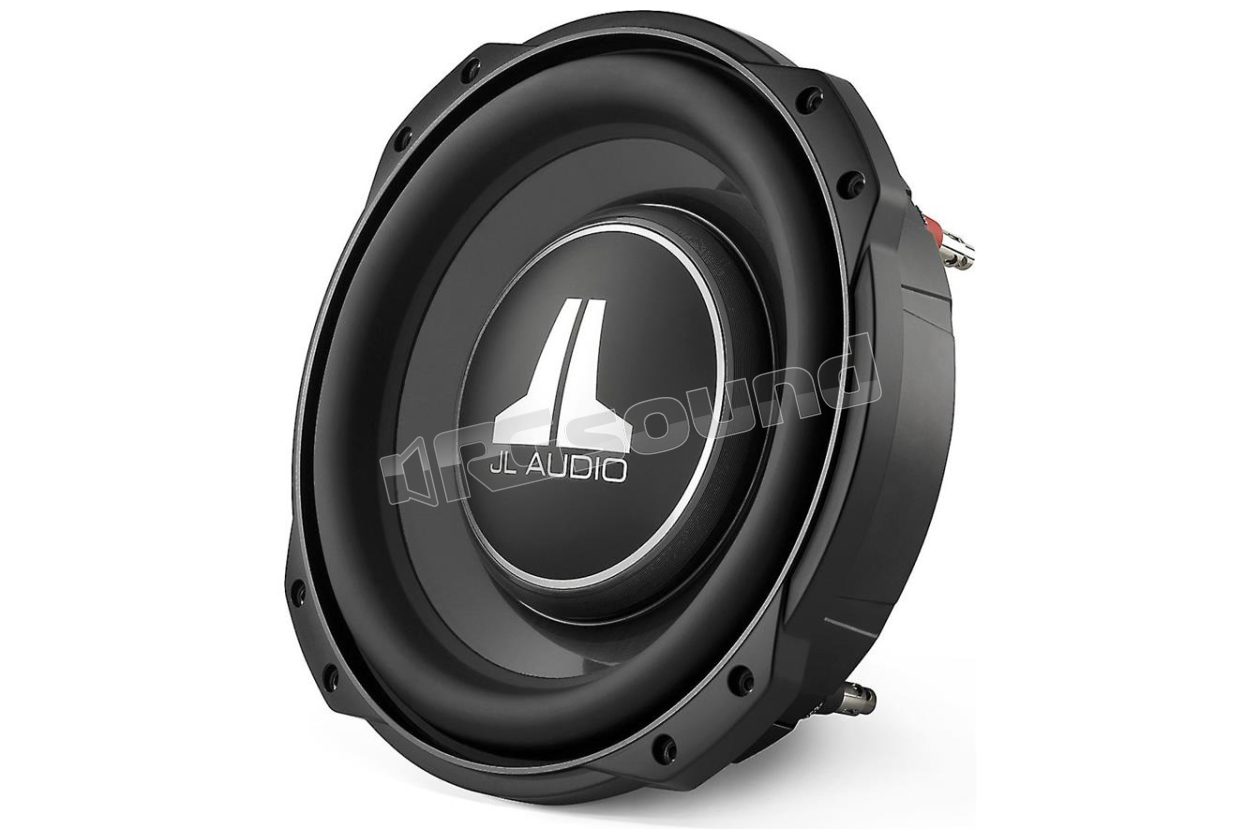

10TW3-D4 25cm shallow-mount subwoofer, dual 4 Ohm voice coil

JL Audio
Your price:
€ 431,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
400 Watt
RMS Power
200 Watt
Impedance
4 + 4 Ohm
Weight
4,6 Kg
Installation Depth
83 mm
Woofer Material
Polipropilene

JL AUDIO 10TW3-D4 subwoofer TW3 series 25cm / 10" (400 W, dual 4 Ω voice coil)

Building on the core technology of the slim TW5 subwoofers, the TW3s offer a powerful combination of reduced mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3 series.

To enable the achievement of this extraordinary feat, JL Audio's patented thin-line woofer technology compresses the TW3 architecture using a "concentric tube" structure incorporated into the injection-molded cone body. This structure supports the voice coil and a complete annular spider, while also allowing the large motor structure to be positioned further forward in the speaker compared to conventional designs. The TW3s are optimized for small enclosures and offer a mounting design to maximize cone area within the footprints.

Die-cast aluminum frame, mica-filled polypropylene injection-molded cone, rubber surround, dust cap and aluminum alloy rear cap with JL Audio logo.

JL Audio 10TW3-D4 technical specifications

Continuous power handling (RMS) 400 W
Recommended amplifier power (RMS) 200 - 400 W
Nominal impedance (Znom) Dual 4 Ω
Nominal diameter: 10" / 250 mm
Overall diameter: 10.5 - 11.2" / 267 - 284 mm
Mounting hole diameter: 9.625" / 244 mm
Bolt hole circle diameter: 10.5" / 267 mm
Motor outer diameter: 5.1" / 130 mm
Mounting depth: 3.25" / 83 mm
Driver displacement: 0.019 cu ft / 0.54 L
Net weight: 10.1 lb / 4.6 kg

€ 431,00 Price incl. VAT
