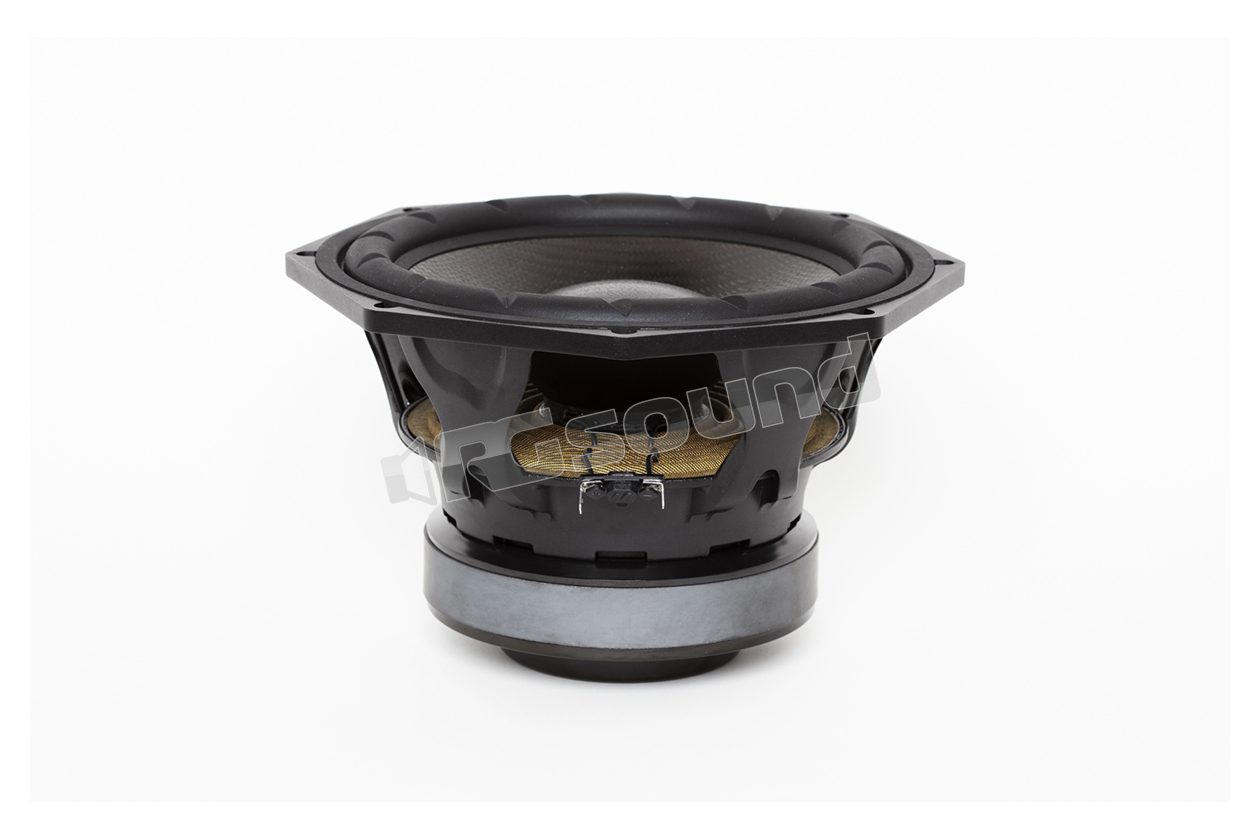

10NMFS 10" 700 W subwoofer, 8 Ohm

Beyma
Your price:
€ 422,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
350 Watt
Frequency Response
30 - 2000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Voice Coil Diameter
63,5 mm

Beyma 10NMFS 10" Subwoofer 700 W, 8 Ohm

This 10″ ferrite woofer utilizes Malt Cross® technology to minimize thermal compression losses. Developed for exceptional bass and mid-bass reproduction with its 2.5" aluminum voice coil FOUR in/out and dual BIMAX spider, the 10NMFS has an XMAX of +/- 14.5 mm. The 10NMFS supports 350W aes (700 Prog) with an SPL of 90dB/1W/1m. Particularly suitable for compact high-performance subwoofers.

10NMFS Features

  • 10" high-power, low-distortion subwoofer
  • Cooling system with exclusive Malt Cross® technology
  • Reduced power compression losses
  • High force factor design for high-performance applications
  • Ceramic magnetic circuit and FEA optimized suspensions
  • Ultra-reduced air noise
  • Carbon fiber cone and dustcap
  • Improved linear behavior
  • Dual BIMAX spider and NBR surround
  • 2.5" aluminum voice coil FOUR in/out
  • Optimized triple demodulating circuit in aluminum and copper
  • Extended and controlled excursion: Xmax ± 14.5 mm
  • Peak-to-peak excursion of 50 mm before damage

Beyma 10NMFS Technical Specifications

  • Nominal diameter 250 mm 10 in
  • Nominal impedance 8 Ω
  • Minimum impedance 8.4 Ω
  • Power 350 W
  • Program power 700 W
  • Maximum long-term power 800 W
  • Sensitivity 90 dB 1W / 1m @ ZN
  • Frequency range 30 - 2,000 Hz
  • Voice coil diameter 63.5 mm 2.5 in
  • Bl factor 16 N/A
  • Moving mass 0.089 kg
  • Voice coil length 32 mm
  • Air gap height 7 mm
  • Damage X (peak to peak) 50 mm
  • Resonance frequency 35 Hz
  • Voice coil D.C. resistance 5.9 Ω
  • Mechanical quality factor 5.9
  • Electrical quality factor 0.45
  • Total quality factor 0.42
  • Equivalent air volume Cms 45 l
  • Mechanical compliance 233 µm / N
  • Mechanical resistance 3.3 kg / s
  • Efficiency 0.42 %
  • Effective area 0.037 m2
  • Maximum displacement 14.5 mm
  • Displacement volume 536 cm3
  • Voice coil inductance 1.49 mH
