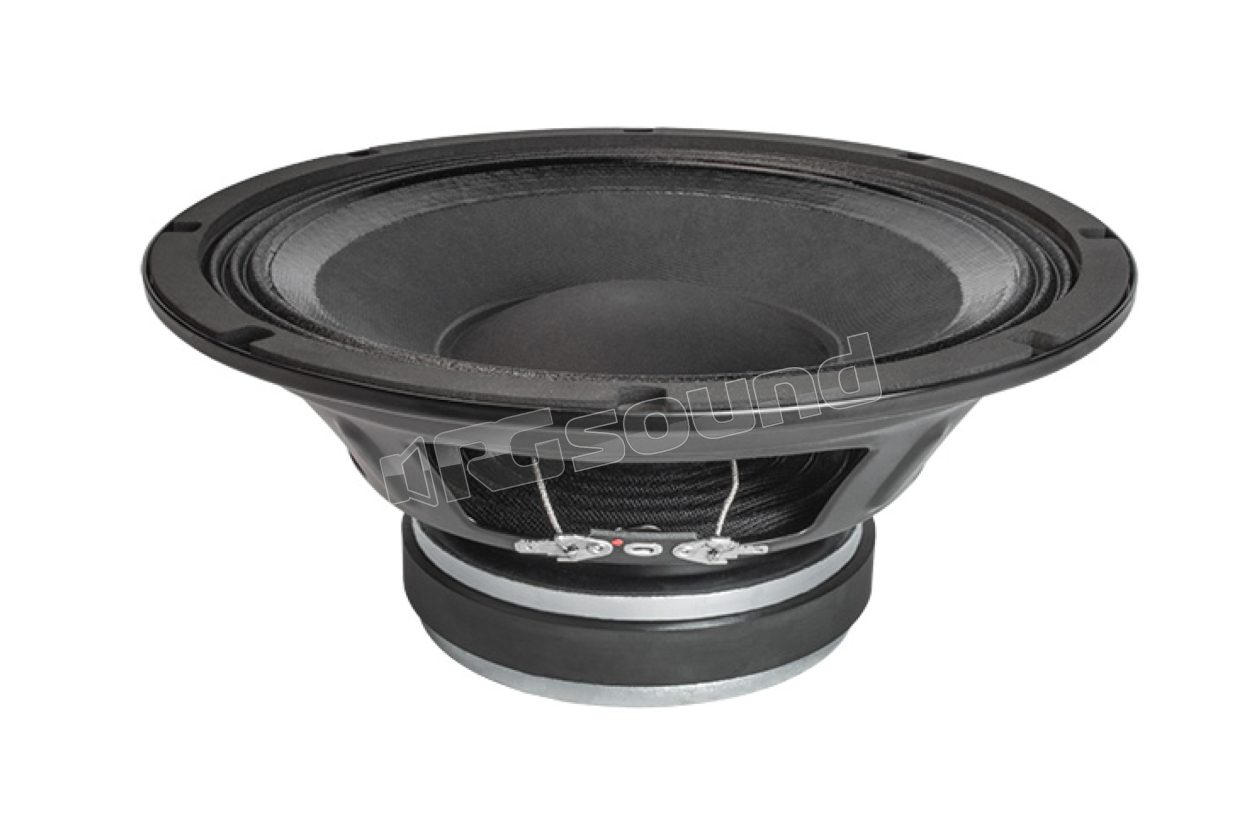

10FE300-4F 10" Woofer with Ferrite Magnet 4ohm

Faital PRO
Your price:
€ 98,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
50 - 4000 Hertz
Sensitivity
94 dB
Impedance
4 Ohm
Weight
3,7 Kg
Installation Depth
110 mm

Faital PRO 10FE300-4F woofer 25cm (10"), 250 W power, 94 dB sensitivity, 4 Ohm impedance

The ability to produce highly customized products, high reliability and quality, advanced automation, customer satisfaction and competitiveness are at the heart of Faital.

Emotion, research and implementation of new materials and technologies define the Professional division and the FaitalPRO brand.

Main features

  • Nominal Diameter 250 mm (10 in)
  • Maximum Outer Diameter 260 mm (10.24 in)
  • Mounting Holes Spacing 246 mm (9.69 in)
  • Recess Hole Diameter 233 mm (9.17 in)
  • Depth 110 mm (4.33 in)

Faital PRO 10FE300-4F technical specifications

  • Nominal Impedance 4 Ohm
  • Minimum Impedance 3.5 Ohm
  • Nominal Power (AES) 250 W
  • Maximum Power 500 W
  • Efficiency (1W/1m) 94 dB
  • Frequency Range 50÷4000 Hz
  • Coil Diameter 52 mm (2.05 in)
  • Winding Material Al
  • Support Material Fiberglass
  • Winding Height 13.6 mm (0.54 in)
  • Air Gap Height 8 mm (0.31 in)
  • Flux Density 1.1 T
  • Magnet Type Ferrite Ring
  • Basket Material Steel
  • Fs 50 Hz
  • Re 3.3 Ohm
  • Qes 0.41
  • Qms 10.8
  • Qts 0.39
  • Vas 49.0 dm^3 (1.73 ft^3)
  • Sd3 58 cm^2 (55.49 in^2)
  • Xmax 5.47 mm
  • Xdamage 16.7 mm
  • Mms 37.0 g
  • Bl 9.7 N/A
  • Le 0.45 mH
  • Mmd 29.3 g
  • Cms 0.27 mm/N
  • Rms 1.1 kg/s
  • Eta Zero 1.46 %
  • EBP 123 Hz
€ 98,50 Price incl. VAT
