10CMV2 10" mid-bass speaker

Beyma
Your price:
€ 65,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
60 - 5000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm

Beyma 10CMV2 10" Mid-bass Woofer

The new beyma mid-bass woofer 10CMV2 10" handles 250 watts AES and 500 watts of program power, strong mids with intense bass, high values of 6.5 mm Xmax and 30 mm peak Xmax. Built with dual-layer treated fabric and paper cone, designed to operate in small bass cabinets, PA systems, etc. available in 8 ohm.

10CMV2 Features

  • High power handling: 500 W program power
  • 1.5" voice coil in copper wire
  • High sensitivity: 95 dB (1W / 1m)
  • Very linear extended response and low distortion
  • Suspension in dual-roll treated fabric
  • Optimized stamped steel frame
  • Ferrite magnet
  • Designed for bass and mid-bass applications in small vented cabinets in small vented cabinets

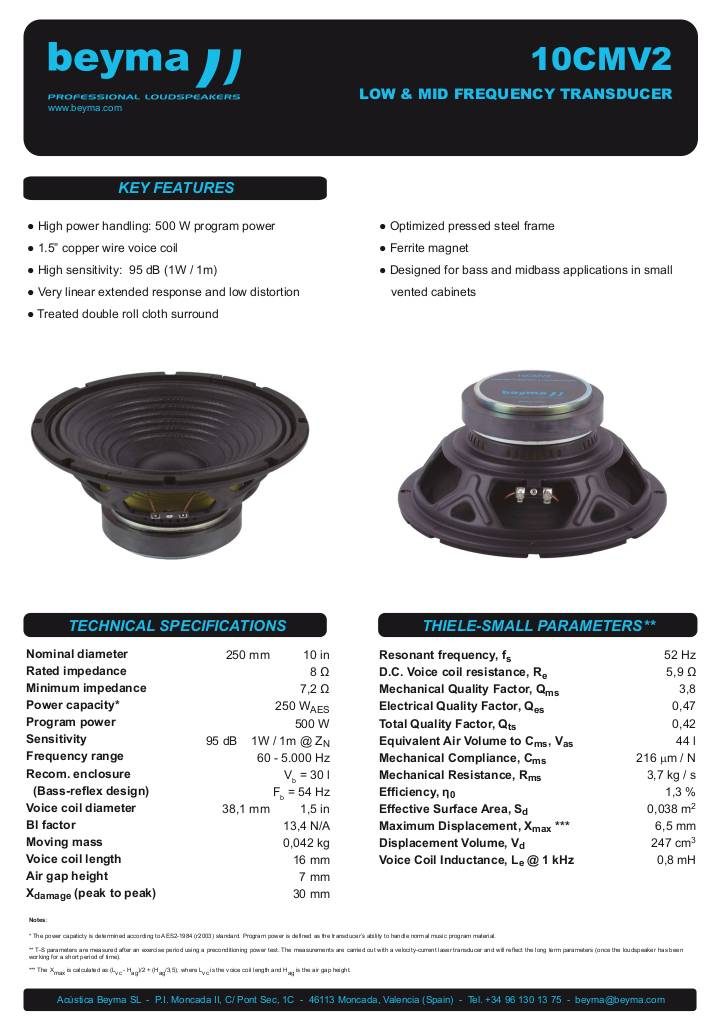

Scheda Tecnica

n-20230726154931-beyma-speakers-data-sheet-low-mid-frequency-10cmv2.pdf

Beyma 10CMV2 Technical Specifications

  • Nominal diameter 250 mm 10 in
  • Nominal impedance 8 Ω
  • Minimum impedance 7.2 Ω
  • Power capacity 250 W
  • Program power 500 W
  • Sensitivity 95 dB 1W / 1m @ ZN
  • Frequency range 60 - 5,000 Hz
  • Voice coil diameter 38.1 mm 1.5 in
  • Bl factor 13.4 N/A
  • Moving mass 0.042 kg
  • Voice coil length 16 mm
  • Air gap height 7 mm
  • Xmax (peak to peak) 30 mm
  • Resonance frequency 52 Hz
  • Voice coil DC resistance 5.9 Ω
  • Mechanical quality factor 3.8
  • Electrical quality factor 0.47
  • Total quality factor 0.42
  • Equivalent air volume Cms 44 l
  • Mechanical compliance 216 µm / N
  • Mechanical resistance 3.7 kg / s
  • Efficiency 1.3 %
  • Effective surface 0.038 m2
  • Maximum displacement 6.5 mm
  • Displacement volume 247 cm3
  • Voice coil inductance 0.8 mH
