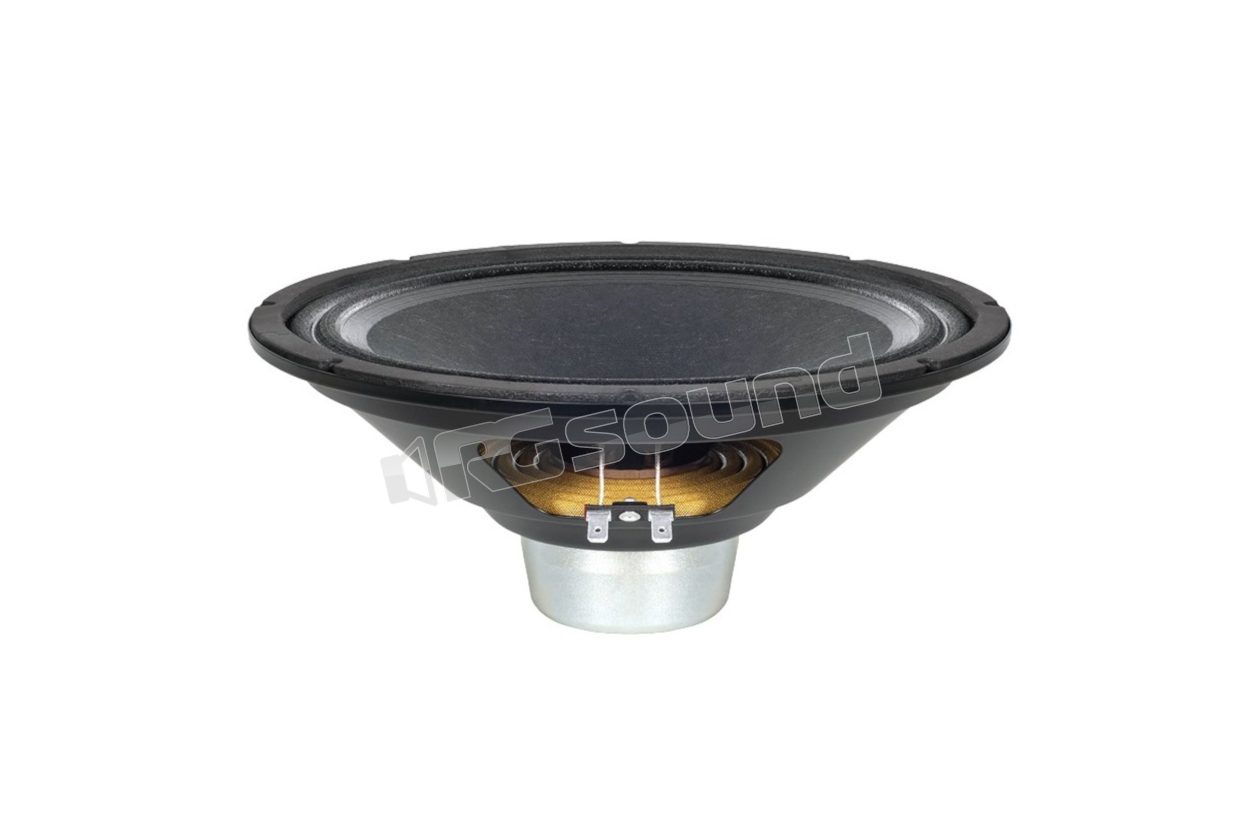

10CL51 10" woofer with neodymium magnet

B&C Speakers
Your price:
€ 139,00
Price per single item (VAT included)
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
60 - 4000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Installation Depth
108 mm
Voice Coil Diameter
232 mm

B&C Speakers 10CL51 Professional 10" Woofer with Neodymium Magnet

Professional 10-inch woofer designed to deliver high performance in high-power audio applications. Equipped with a high-quality neodymium magnet that contributes to precise and linear response. The 51 mm diameter voice coil is designed to support 4 or 8 ohm impedance, ensuring optimal efficiency during operation.

The 10CL51 stands out for its ability to operate effectively even in compact configurations: it can be used in a 32-liter reflex enclosure tuned to 58 Hz, where it performs as a pure woofer, ensuring deep bass and good frequency extension.

10CL51 Features

  • Exponential cone shape
  • Magnet material Neodymium
  • Single Spider
  • Straight pole design
  • Woofer cone treatment None
  • Recommended enclosure 32 dm³ (1.13 ft³)
  • Recommended tuning 58 Hz

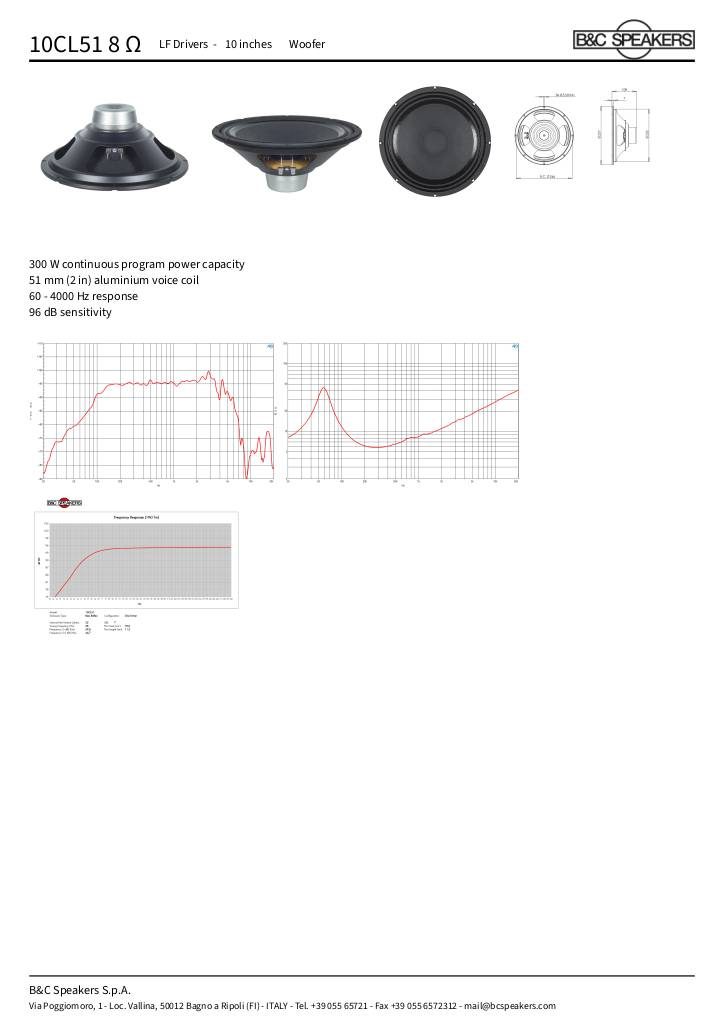

Scheda tecnica

n-20250108113744-10cl51-scheda-tecnica.pdf

B&C Speakers 10CL51 Technical Specifications

  • Nominal diameter 250 mm (10")
  • Nominal impedance 8 Ω
  • Minimum impedance 5.8 Ω
  • Rated power handling 150 W
  • Continuous power 300 W
  • Sensitivity 96 dB
  • Frequency range 60 Hz - 4000 Hz
  • Voice coil diameter 51 mm (2 in)
  • Winding material Aluminum
  • Pole piece material Fiberglass
  • Winding depth 15 mm (0.59 inches)
  • Magnetic gap depth 8 mm (0.31")
  • Overall diameter 257 mm (10.1")
  • Bolt circle diameter 246 mm (9.7")
  • Baffle cutout diameter 232 mm (9.1")
  • Depth 108 mm (4.25 inches)
  • Flange and gasket thickness 7 mm (0.28")
  • Air volume occupied by driver 1 dm³ (0.03 ft³)
